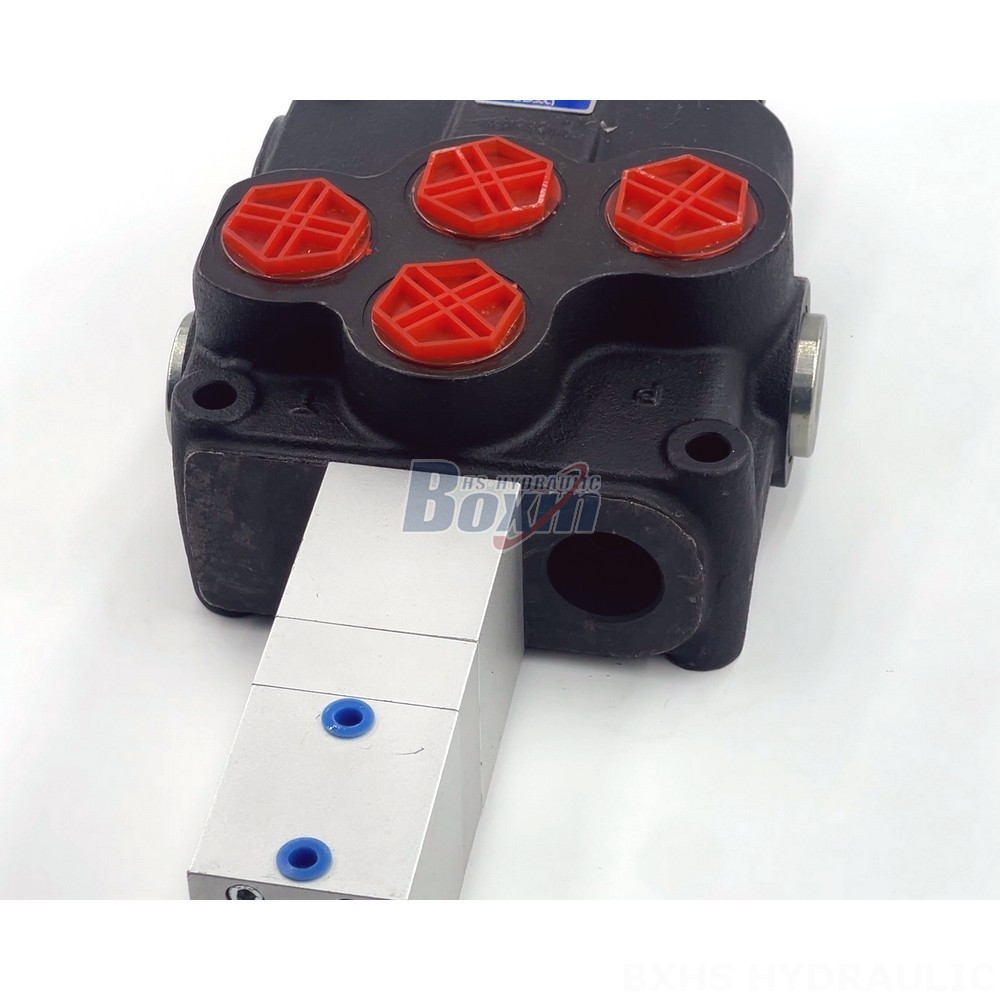

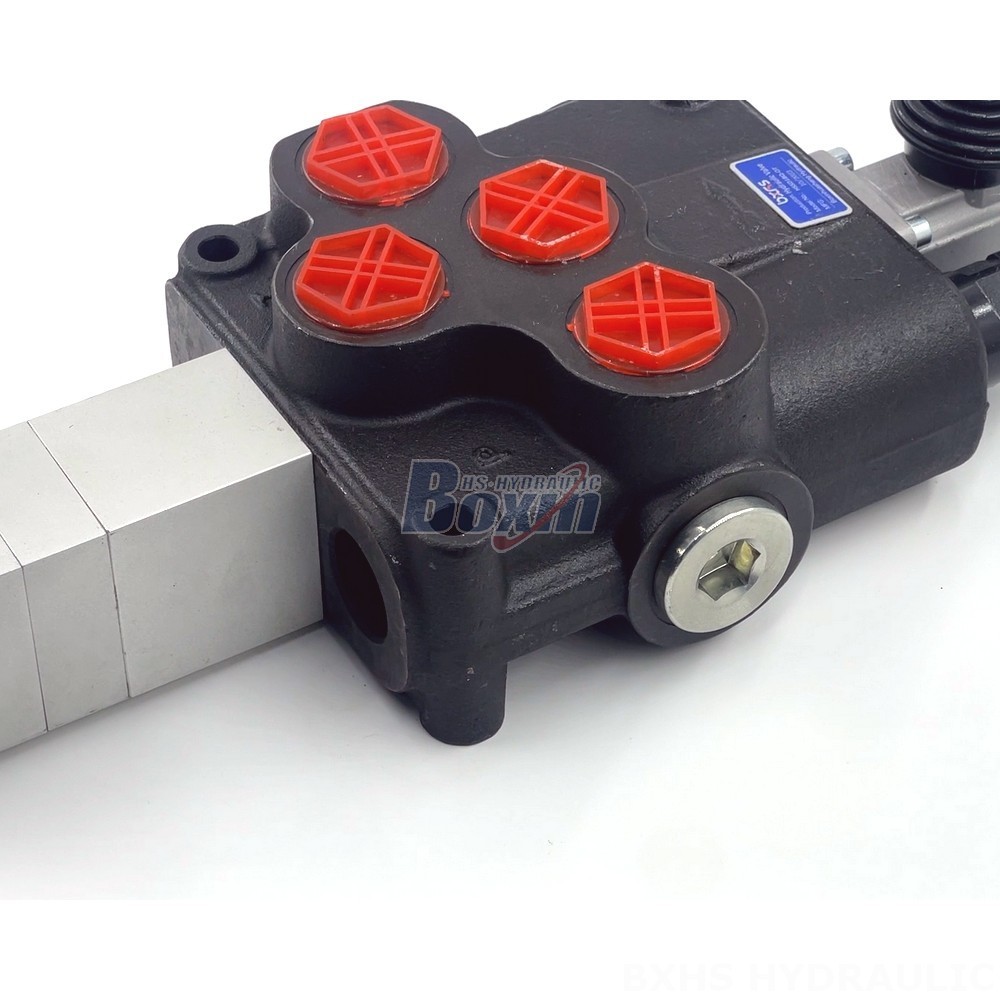

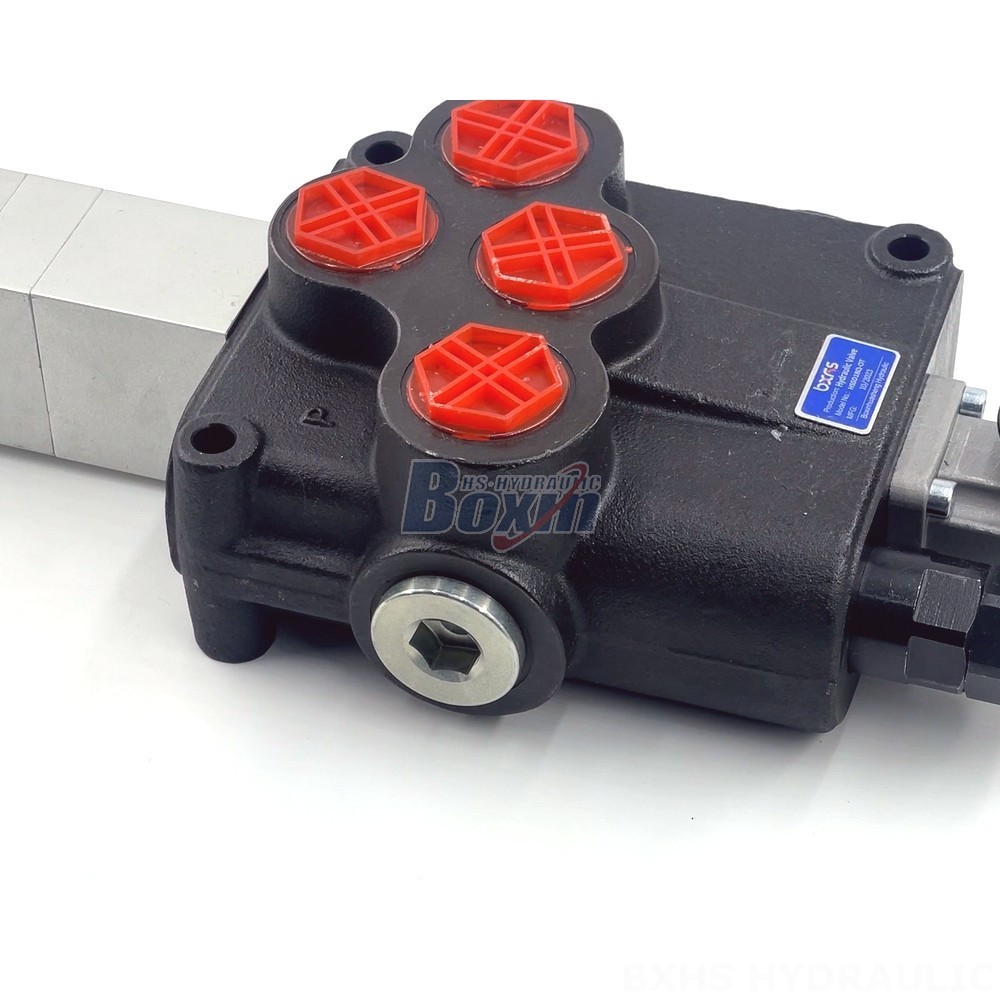

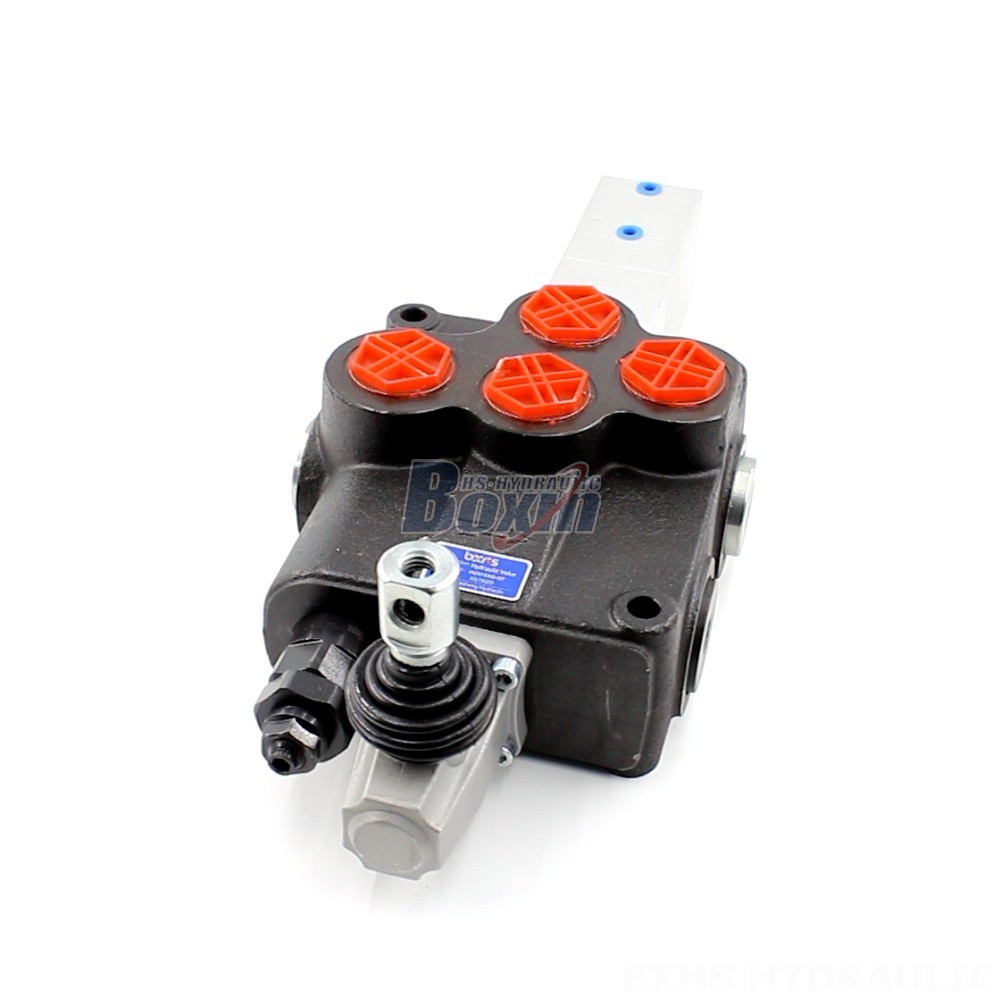

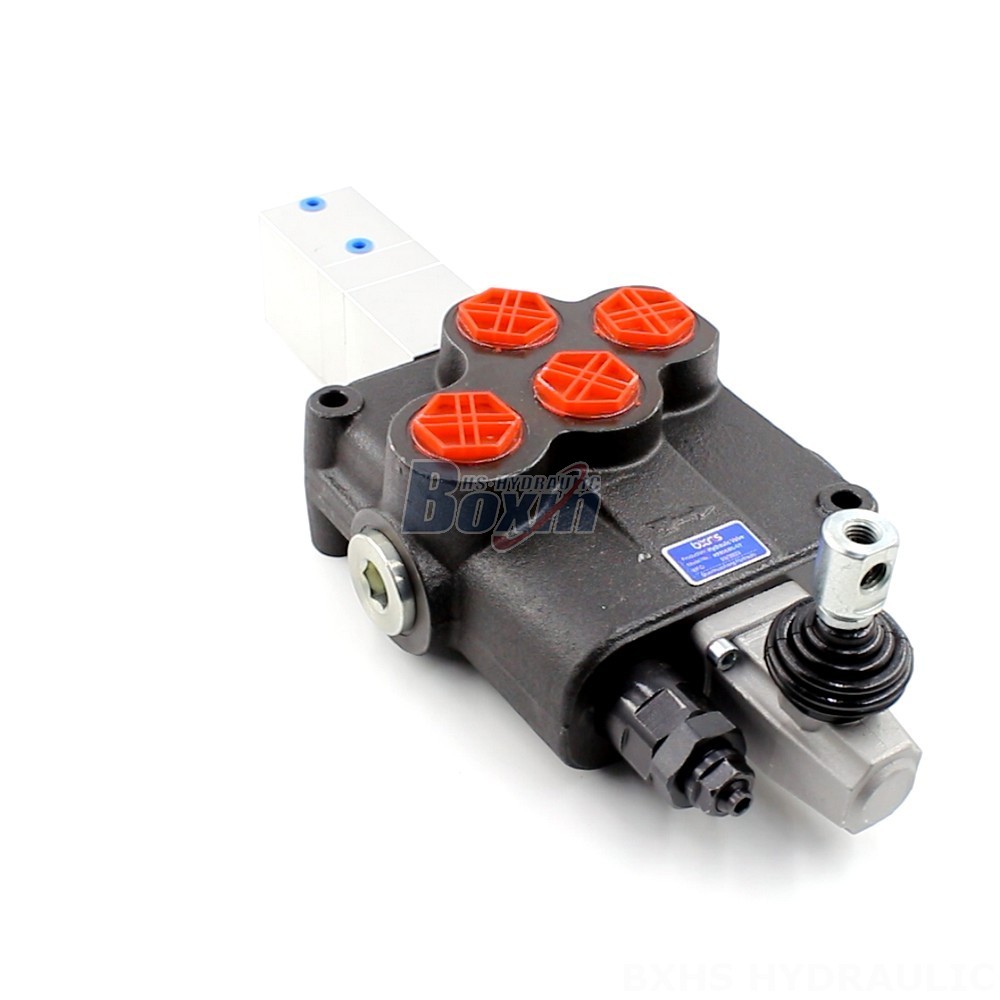

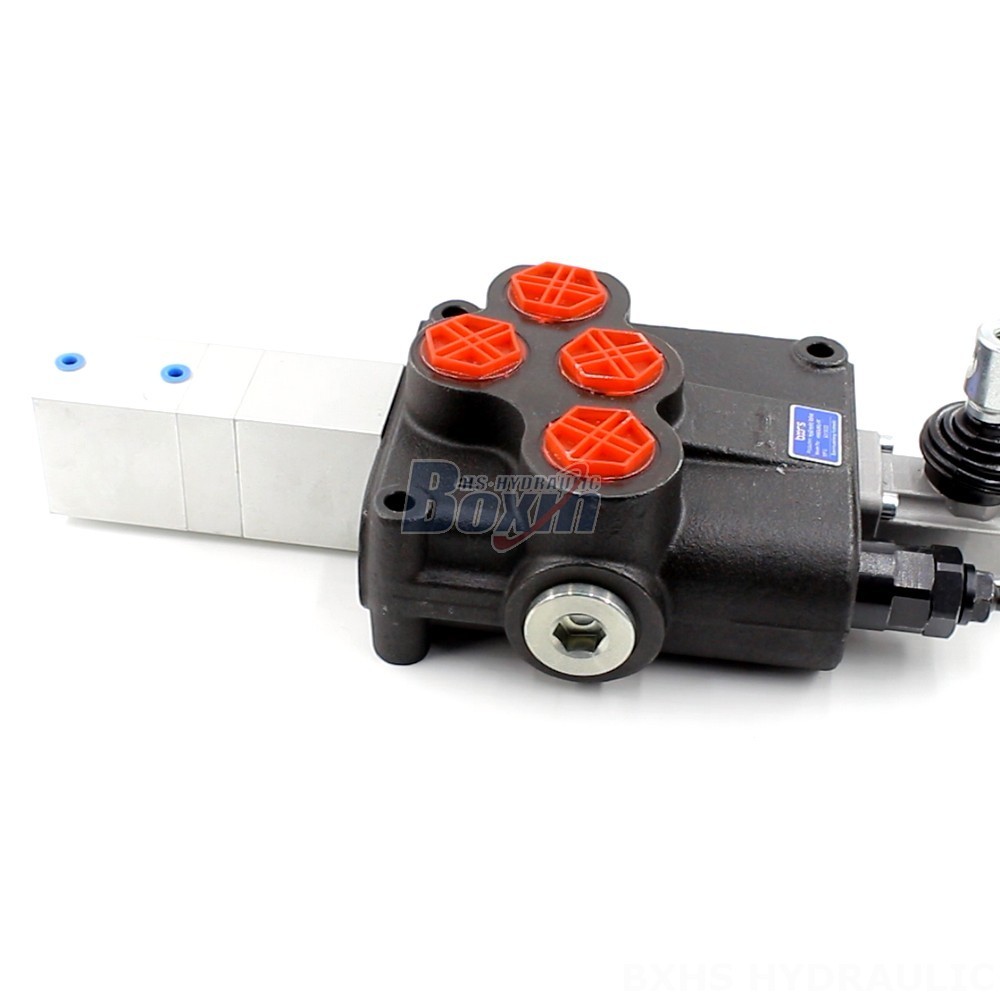

The SD18 Series Hydraulic Control Spool Valve is a high-performance pneumatic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve is available in various configurations and offers a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi). We are a factory direct supplier and offer global distribution.
| SD18-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner |
| Nominellt flöde | 160 l/min (42,2 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G1/2, G1, SAE 16 |
| Utloppsport | G1, SAE 16 |
| Portstorlek | G1, SAE 16 |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner |
| Strukturtyp | Monoblockventil |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
The SD18 Series Hydraulic Control Spool Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a monoblock design, 1 section, 1 spool, and offers a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Designed for demanding environments, the valve boasts an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). We are a factory direct supplier, offering competitive pricing and global distribution. Whether you need OEM, ODM, or wholesale supply, we can cater to your specific requirements. Contact us for more information and customized solutions.
