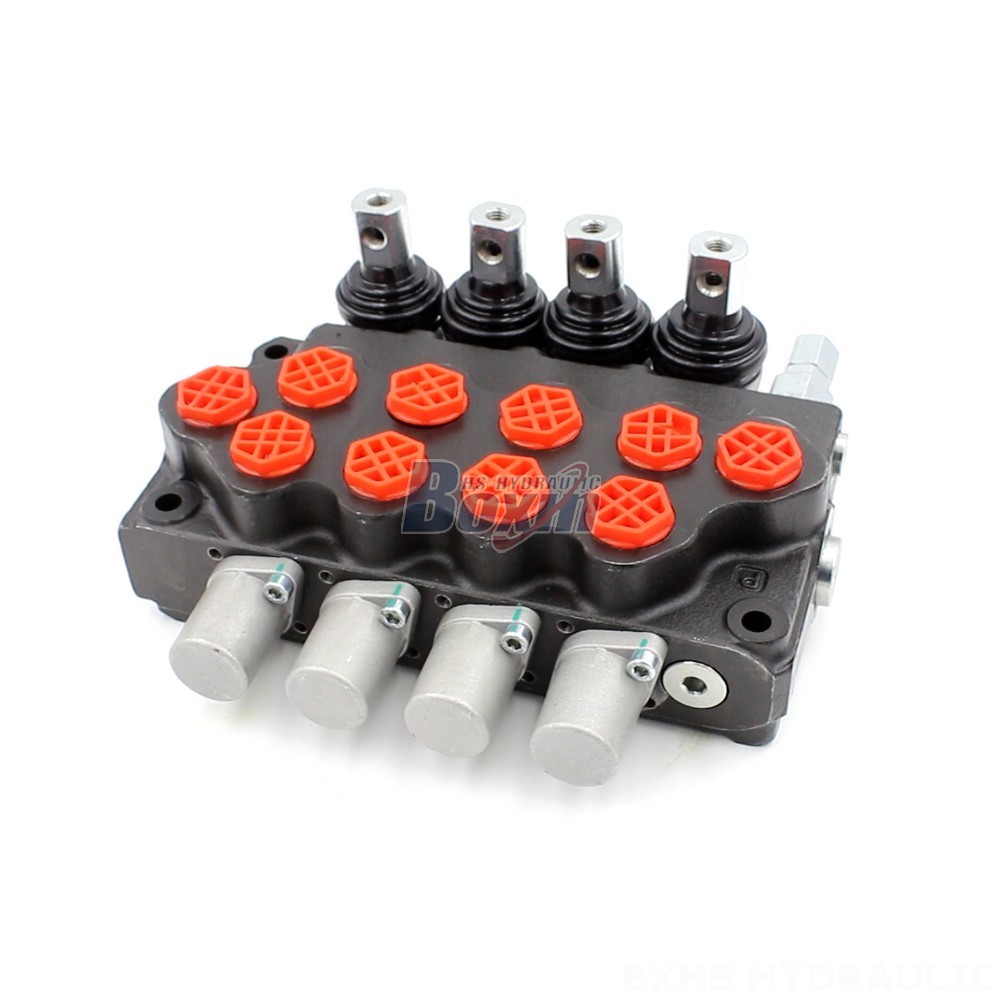

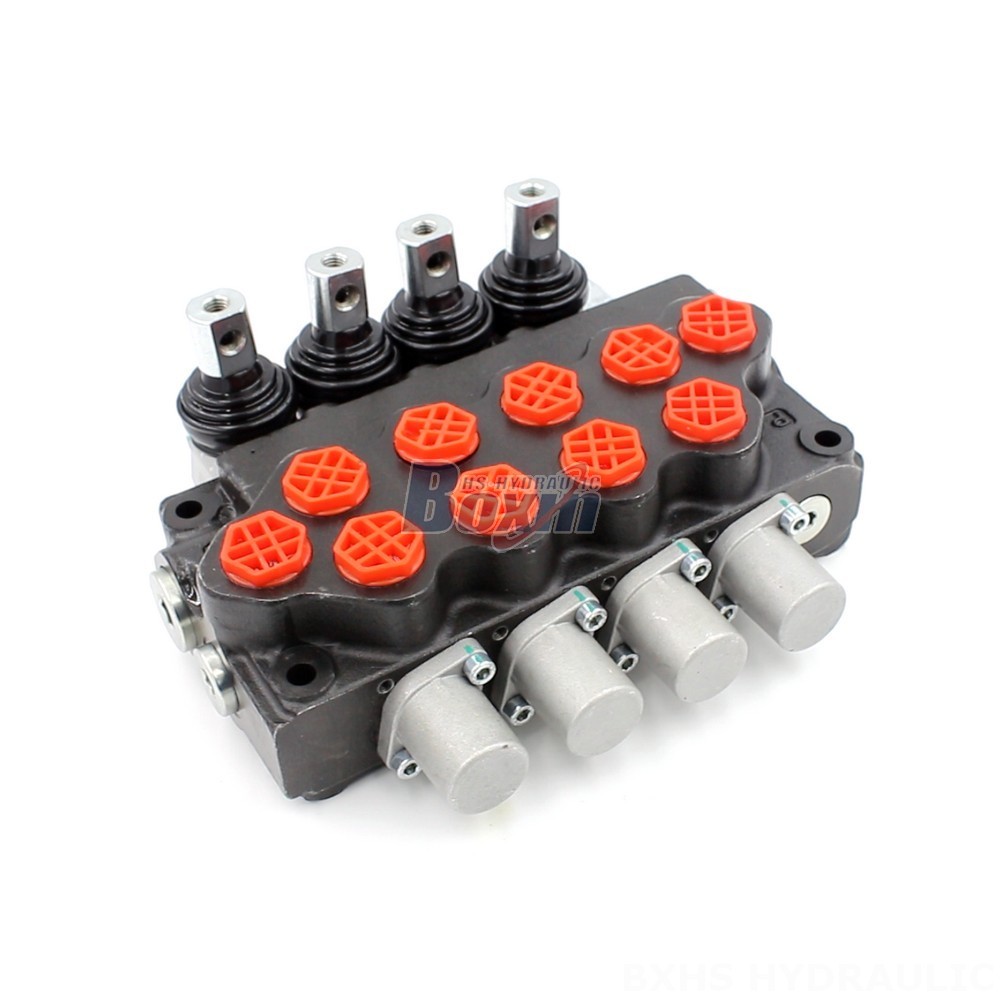

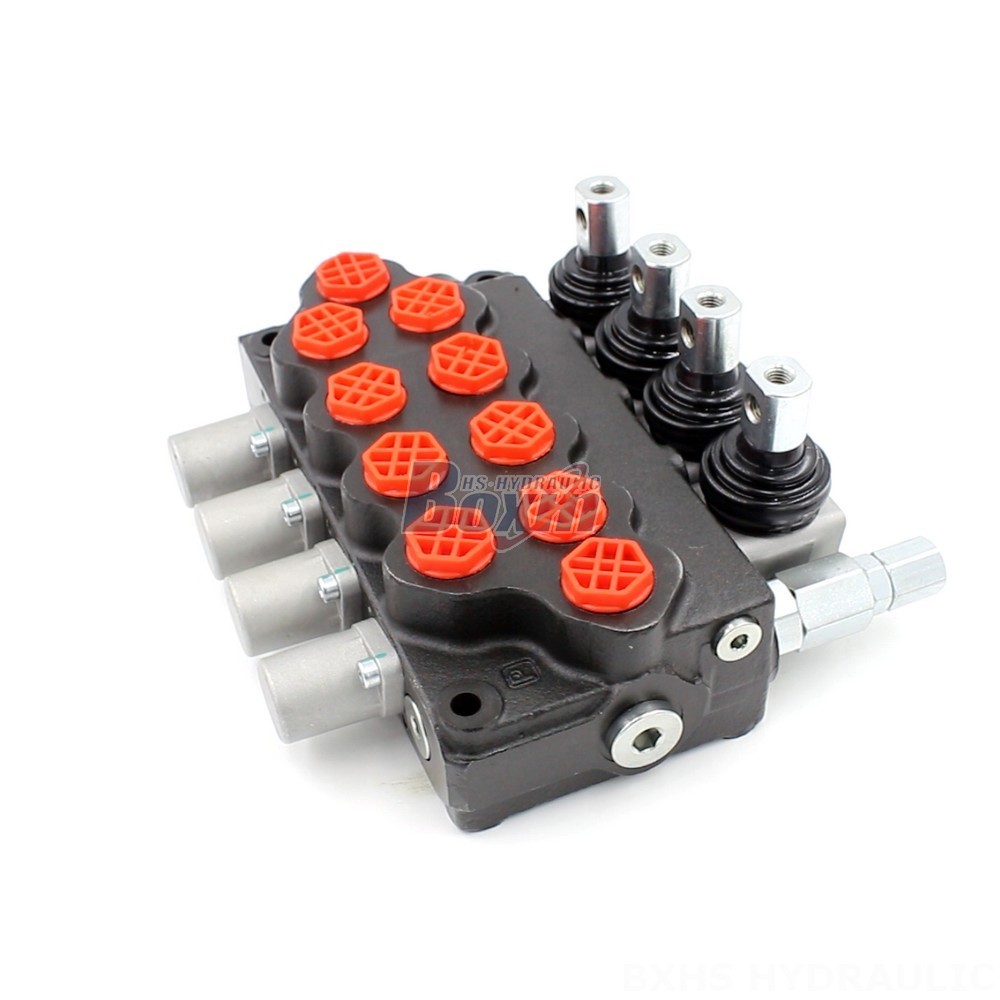

The SD5-G38 4-Spool Hydraulic Valve is a premium hydraulic solution designed for demanding applications in various industries. Its robust construction, high flow capacity, and exceptional pressure handling capabilities make it ideal for heavy-duty machinery and equipment.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* **4-Spool Design:** Provides precise control over multiple hydraulic circuits.
* **Monoblock Construction:** Ensures durability and leak-free operation.
* **Manual Control:** Offers intuitive and responsive operation.
* **High Flow Rate (40 L/min):** Supports efficient operation of hydraulic systems.
* **High Pressure Capacity (305 bar):** Handles demanding pressure requirements with ease.
* **Versatile Temperature Range (-40°C to +60°C):** Suitable for operation in extreme environments.
* **Wide Application Area:** Ideal for material handling, construction, earth moving, agriculture, and industrial vehicles.
* **Compatible Models:** Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
