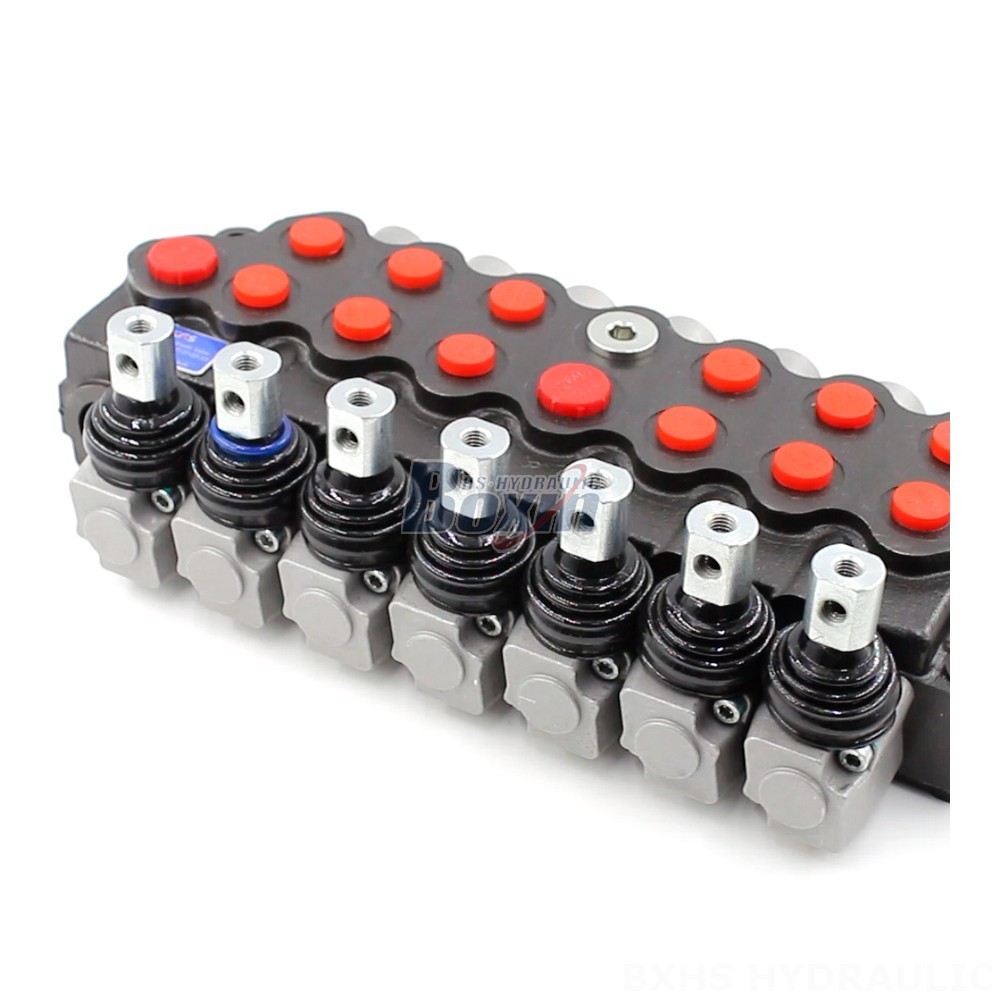

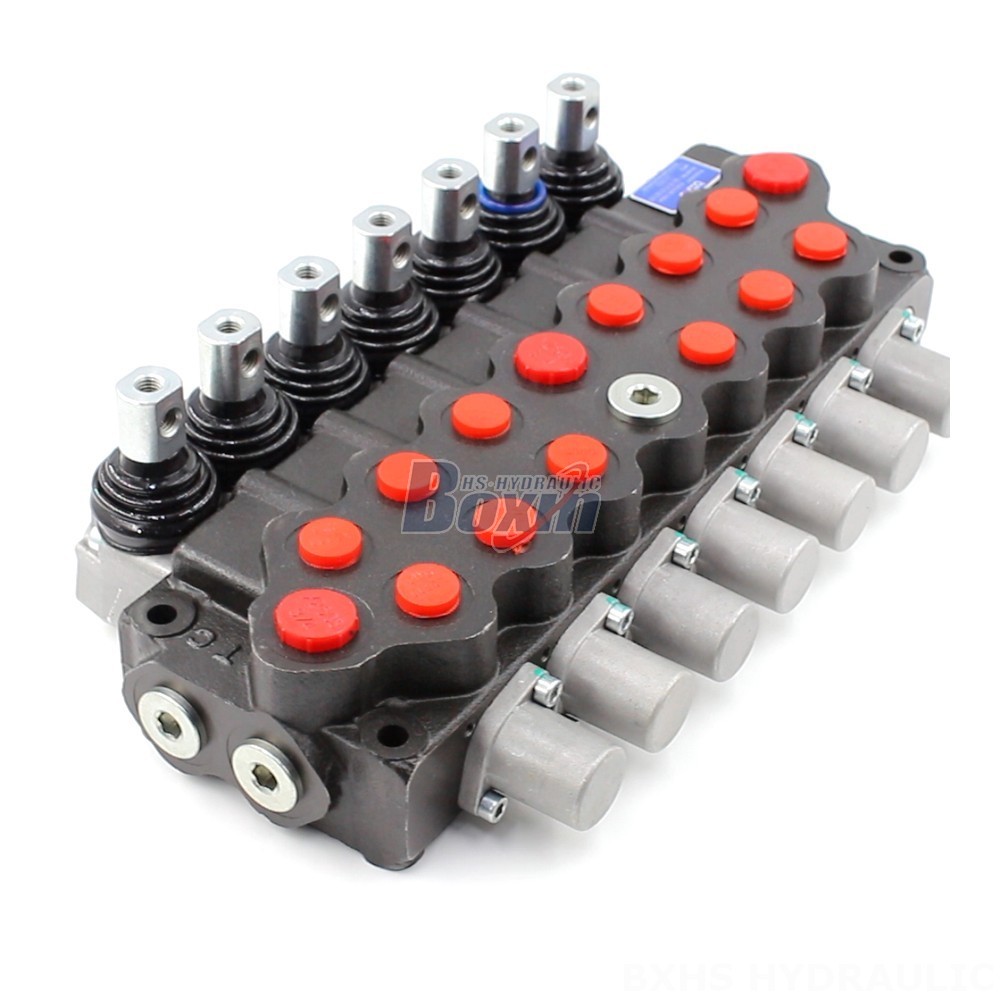

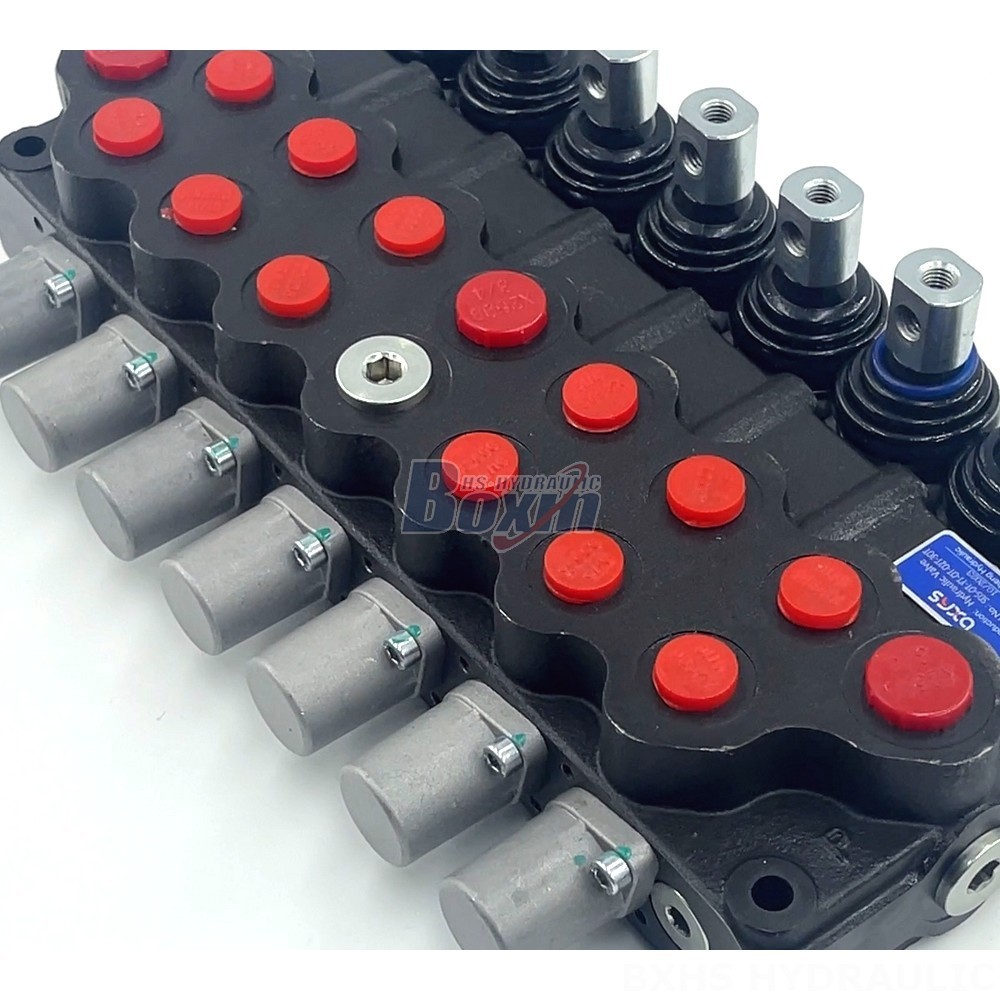

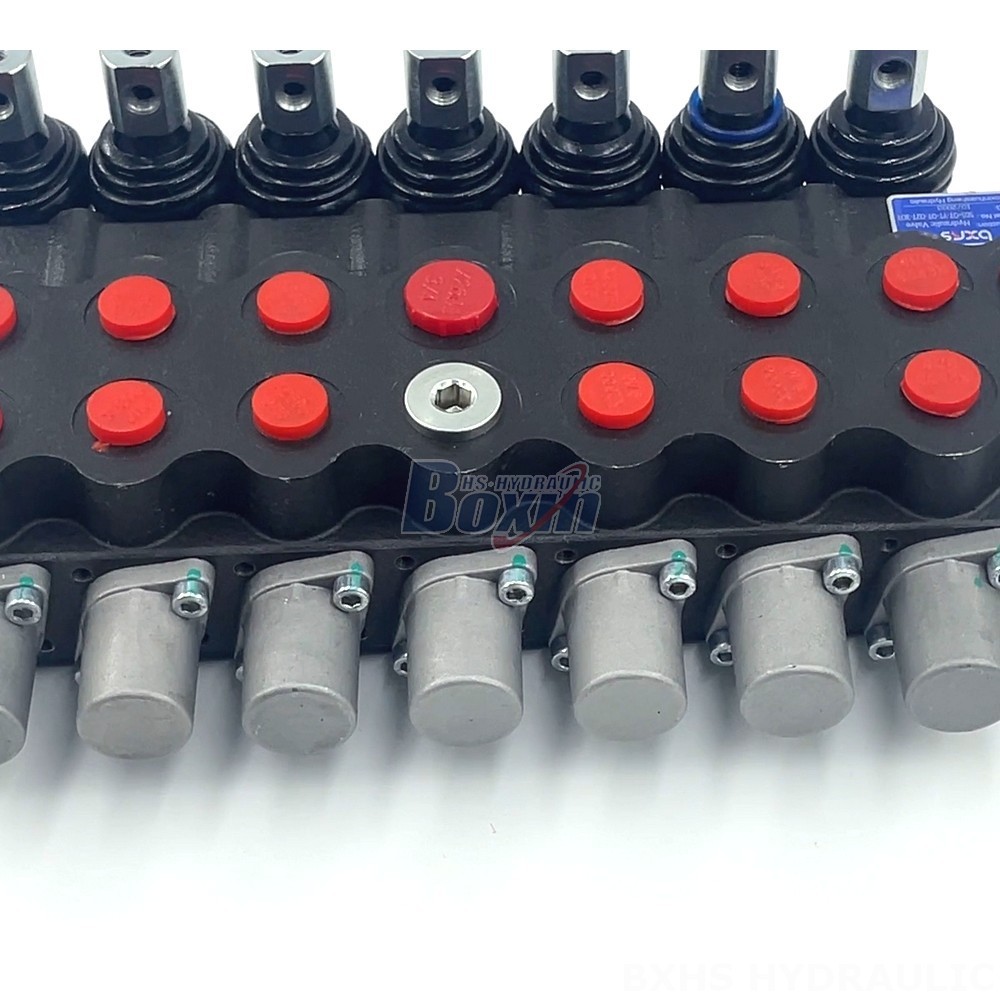

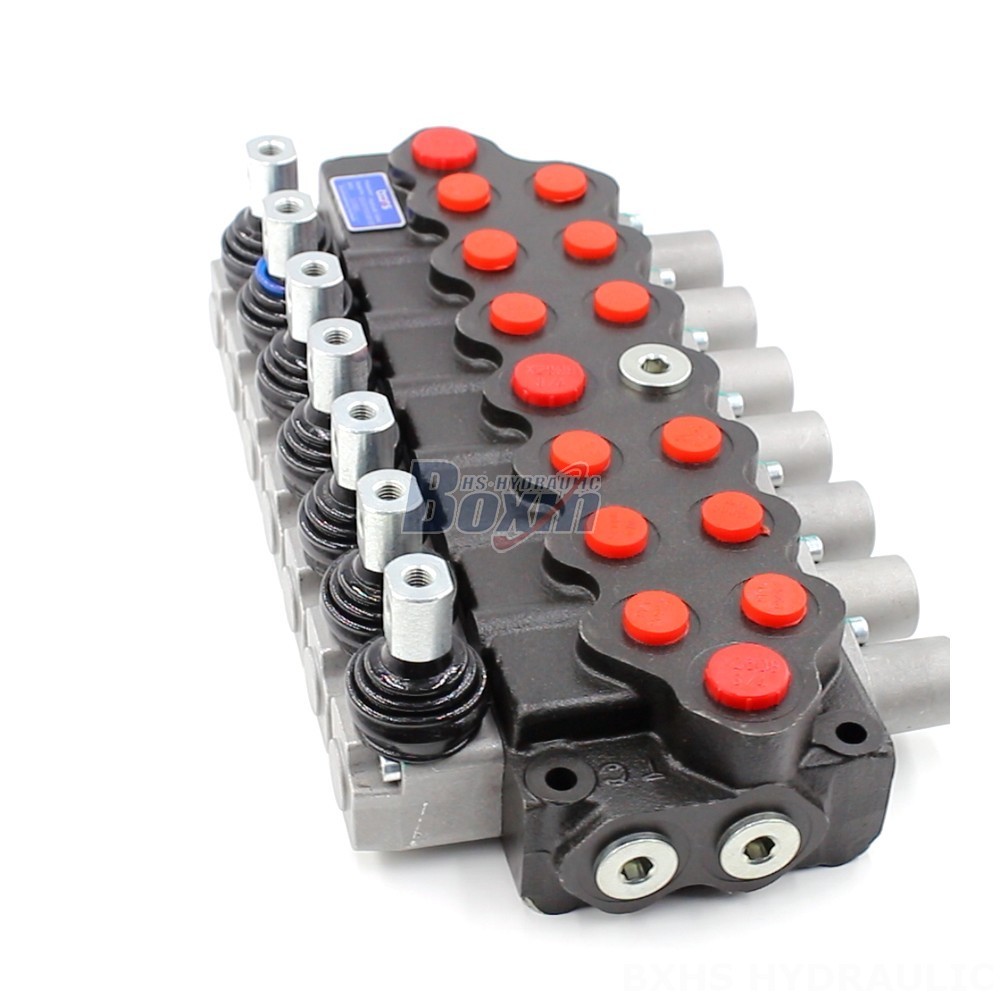

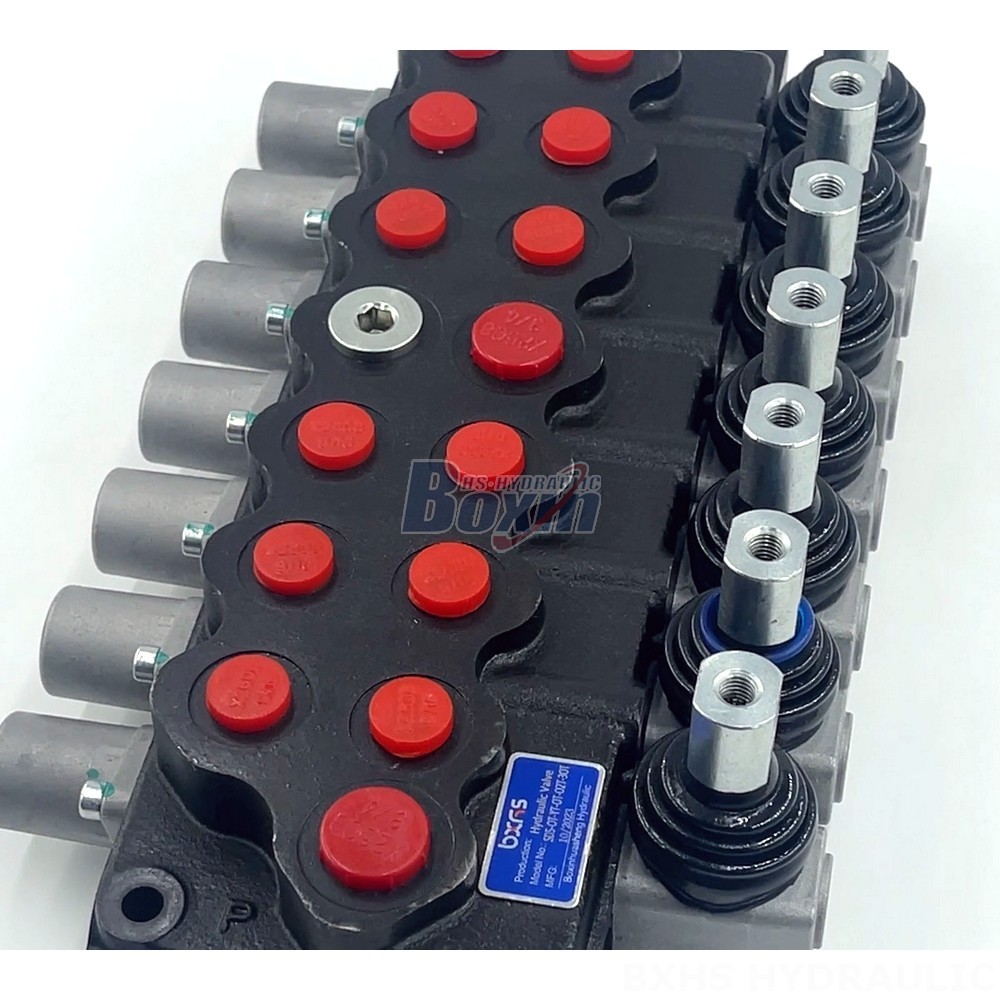

The SD5 Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic component designed for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve offers precise and reliable control over hydraulic systems.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**SD5 Manual 7 Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 7 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 305 bar (4400 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 7 Spool
**Series:** SD5 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- Stacker
- Aerial Platform
- Mini-Excavator
- Compact Wheel Loader
- Harvester
- Bale Wrapper
- Seeding Machine
- Wood Splitter
