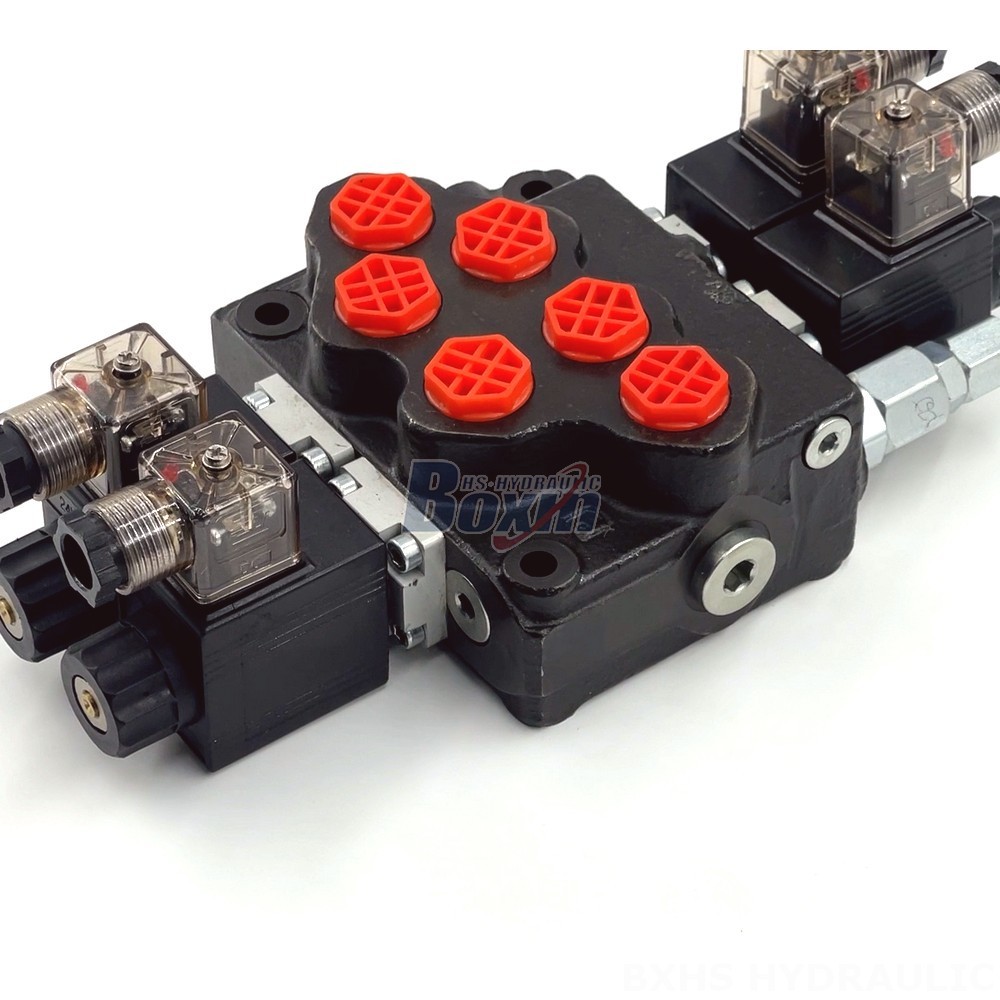

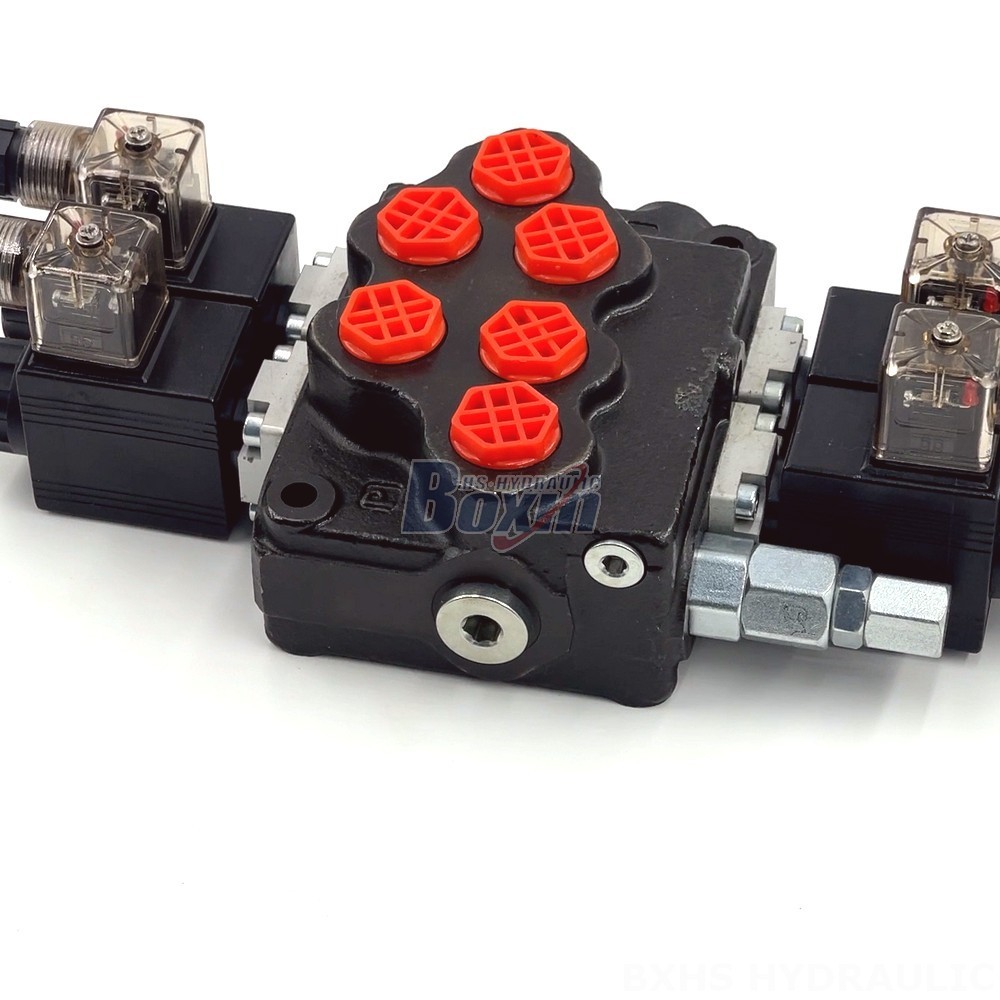

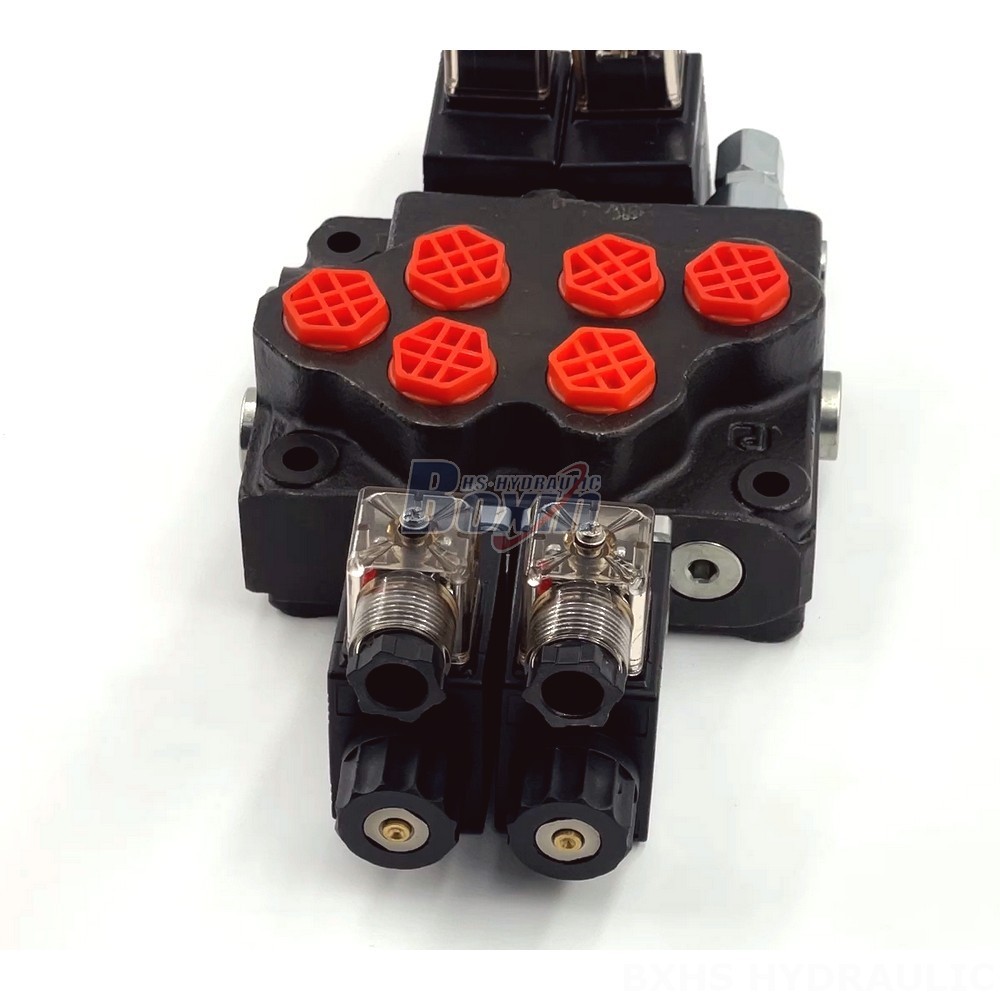

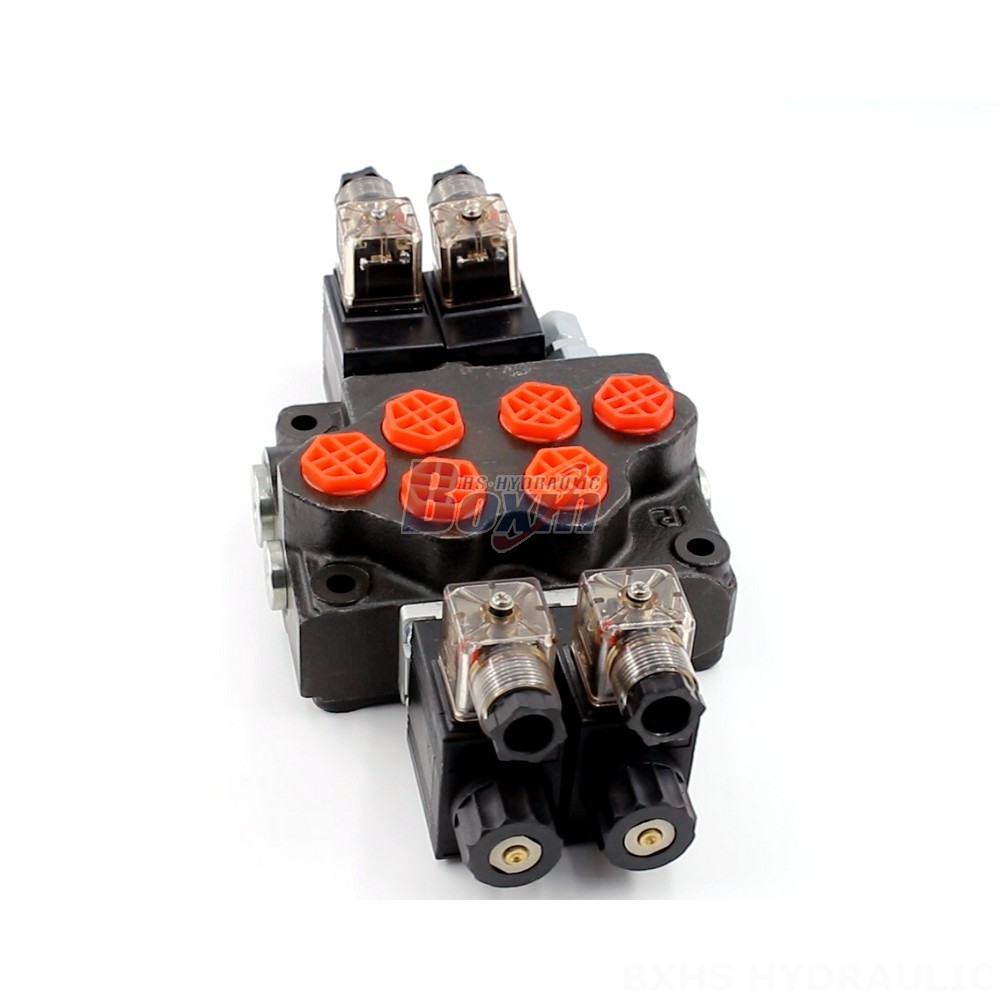

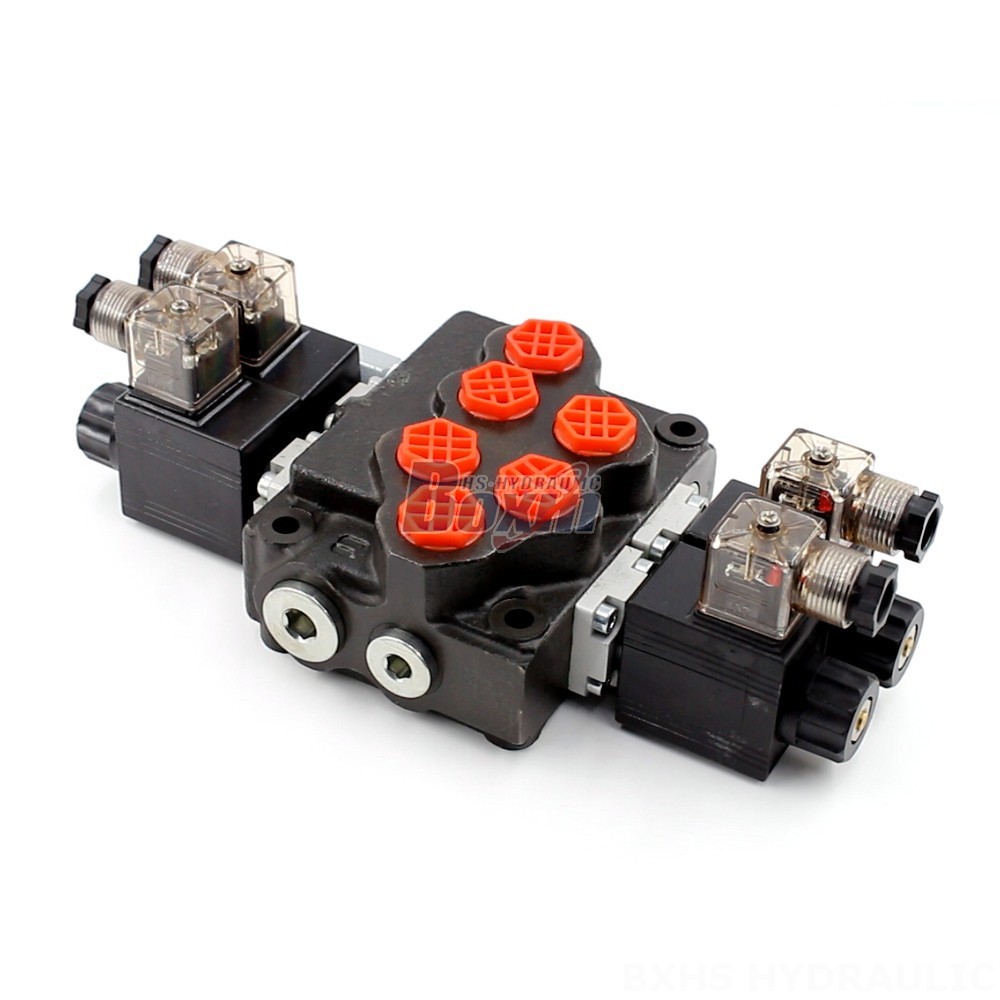

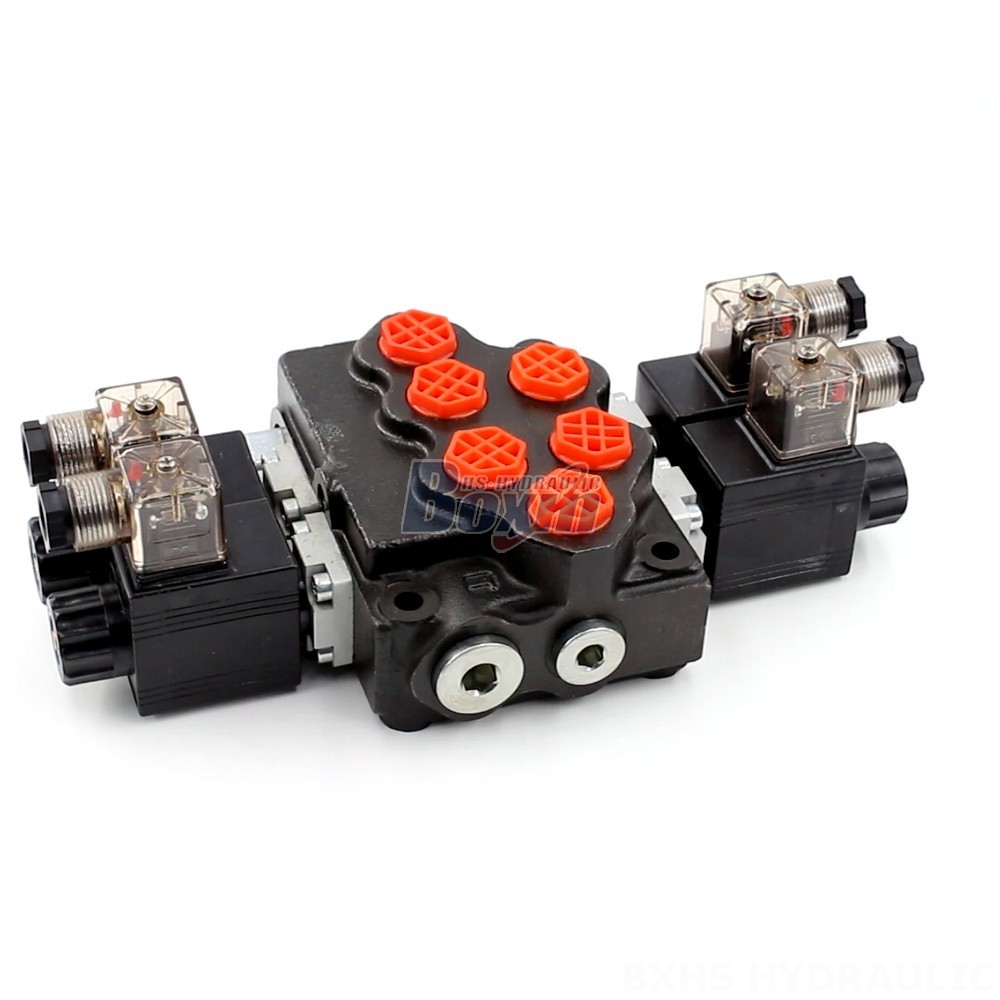

The SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a monoblock valve structure, a rated flow of 40 L/min (10.5 US gpm), and a maximum pressure of 305 bar (4400 psi).
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This high-performance SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in demanding applications. It features a robust monoblock valve structure, providing high reliability and durability. The valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), making it suitable for a wide range of hydraulic systems. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), allowing it to function effectively in various temperature conditions (-40°C to +60°C/-40°F to +140°F). The SD5 Series Hydraulic 4/3 Valve is ideal for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
