The SD8-Electric Unloading Valve is a 5-position, 4-solenoid, 12v/24v hydraulic directional control valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |

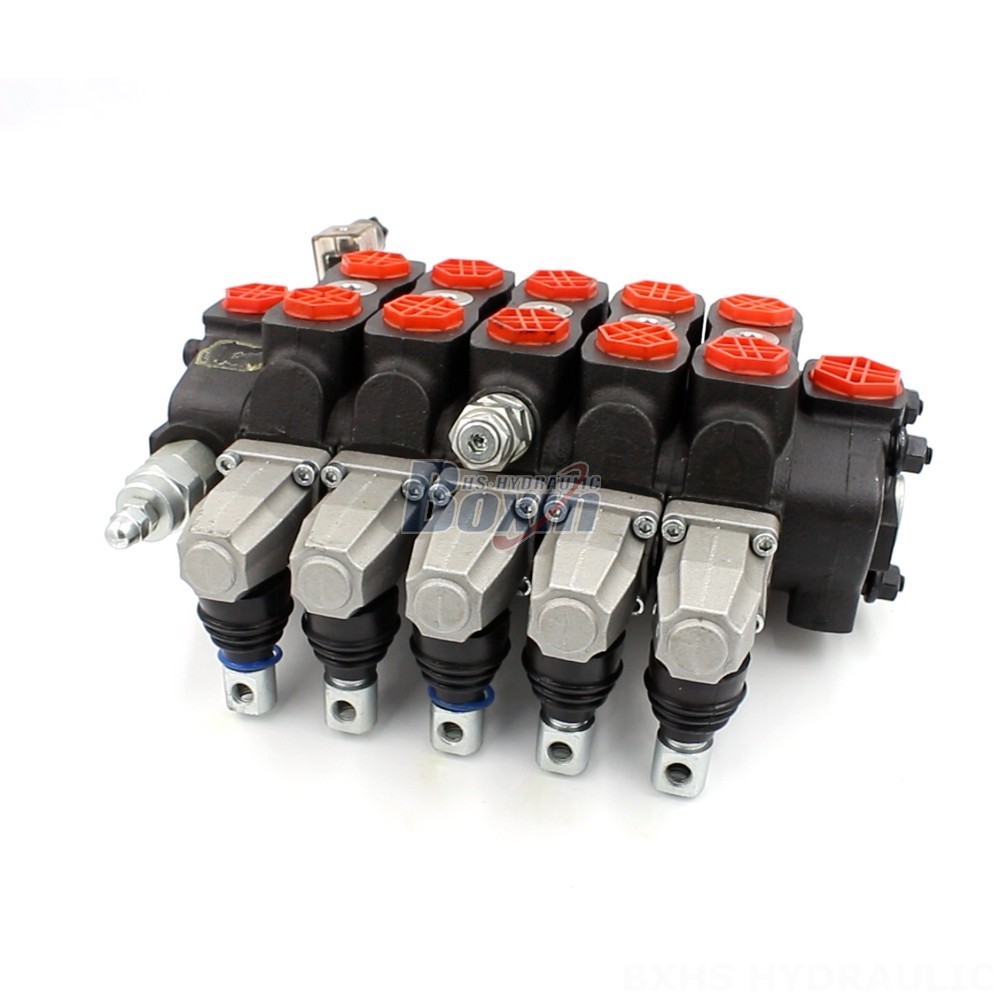

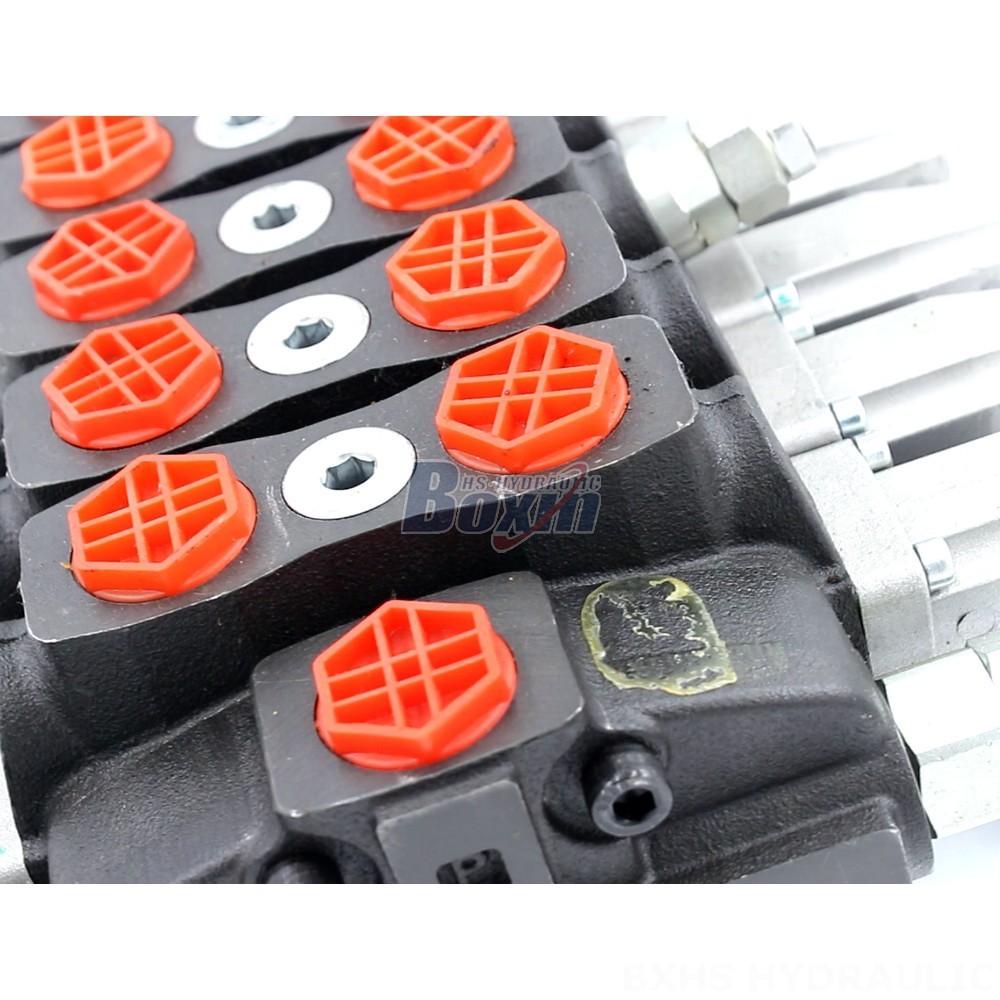

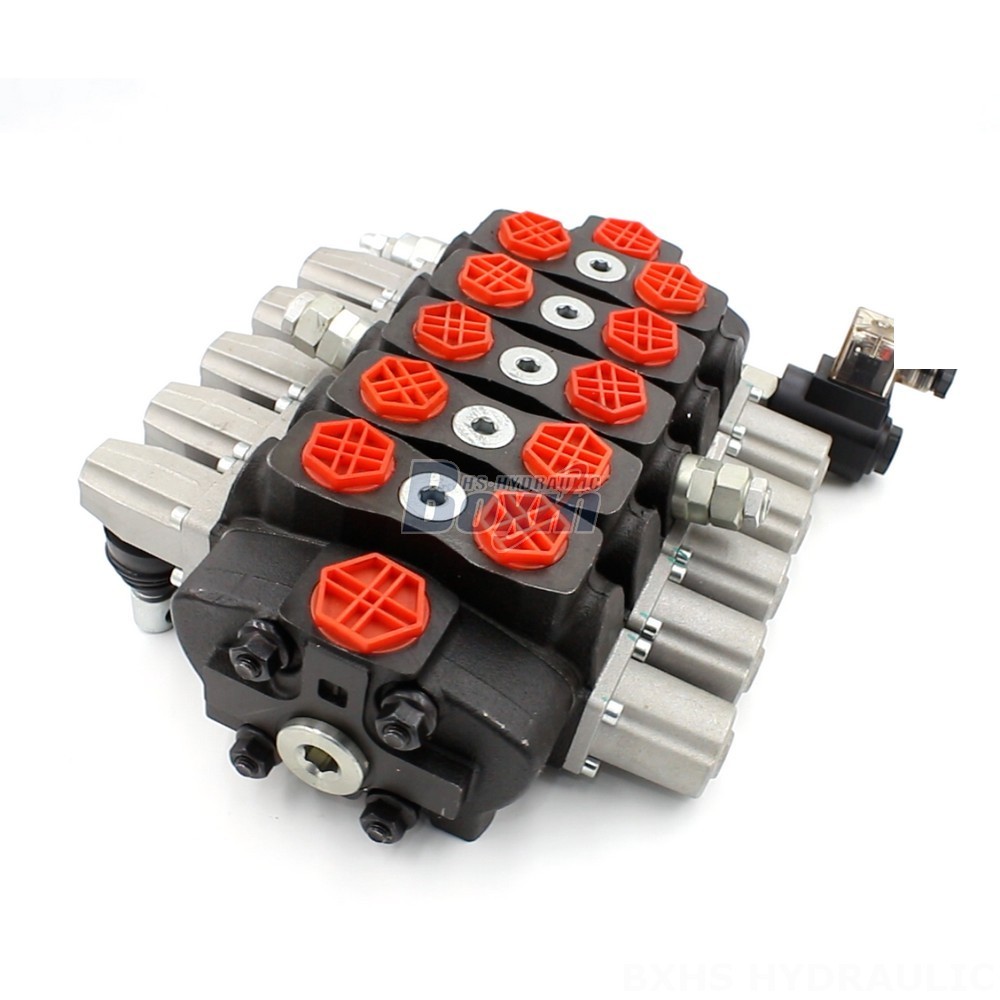

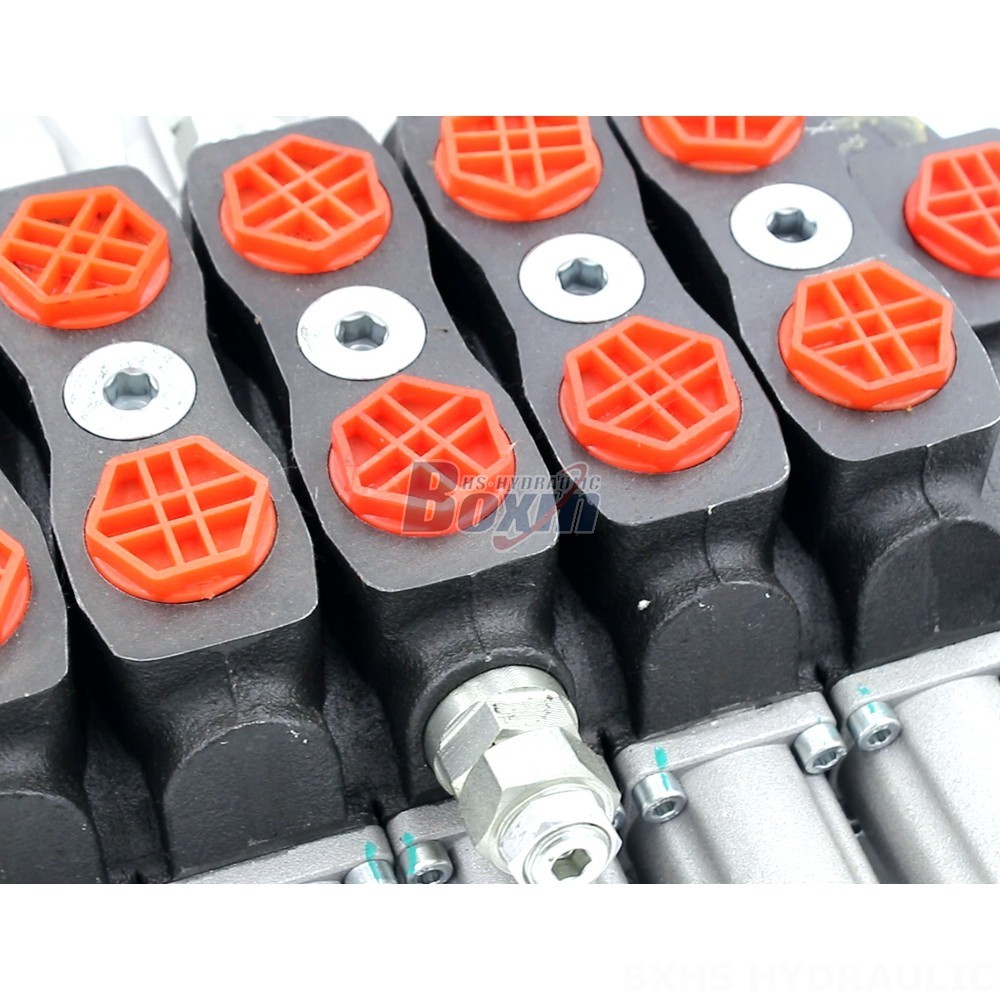

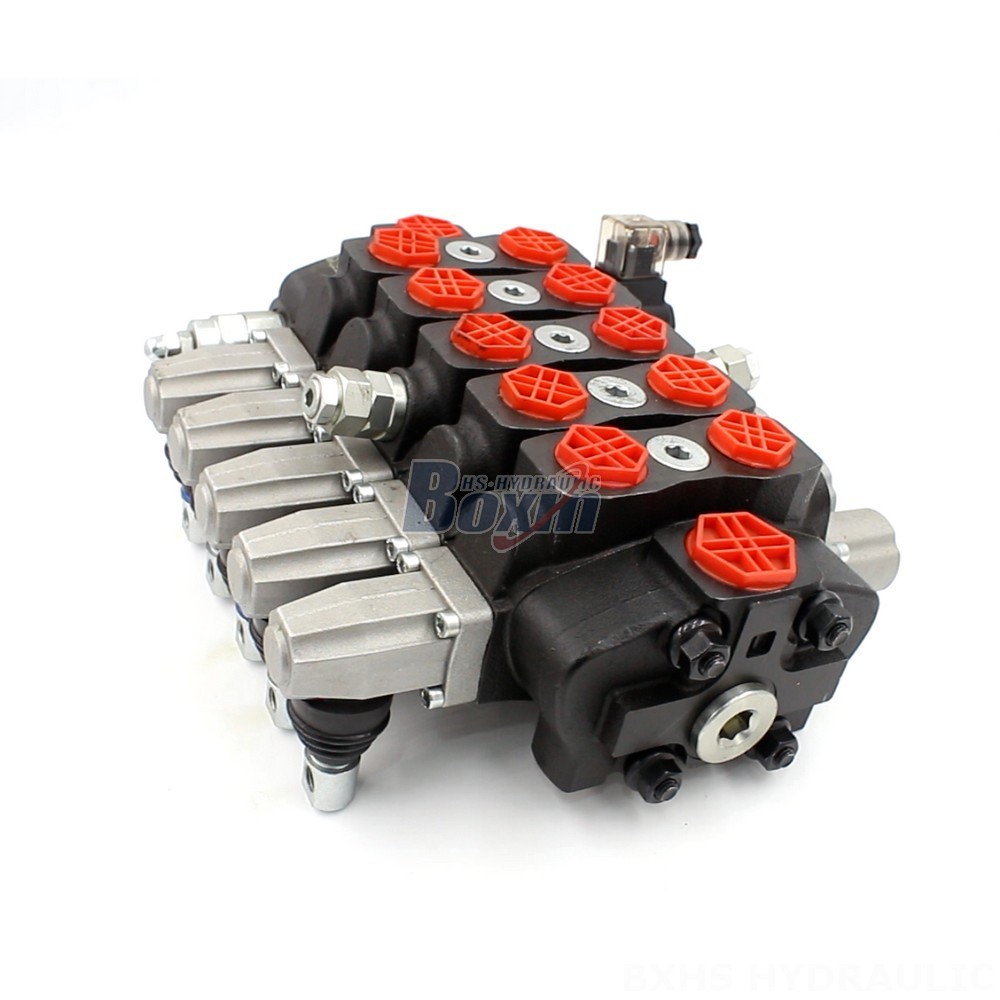

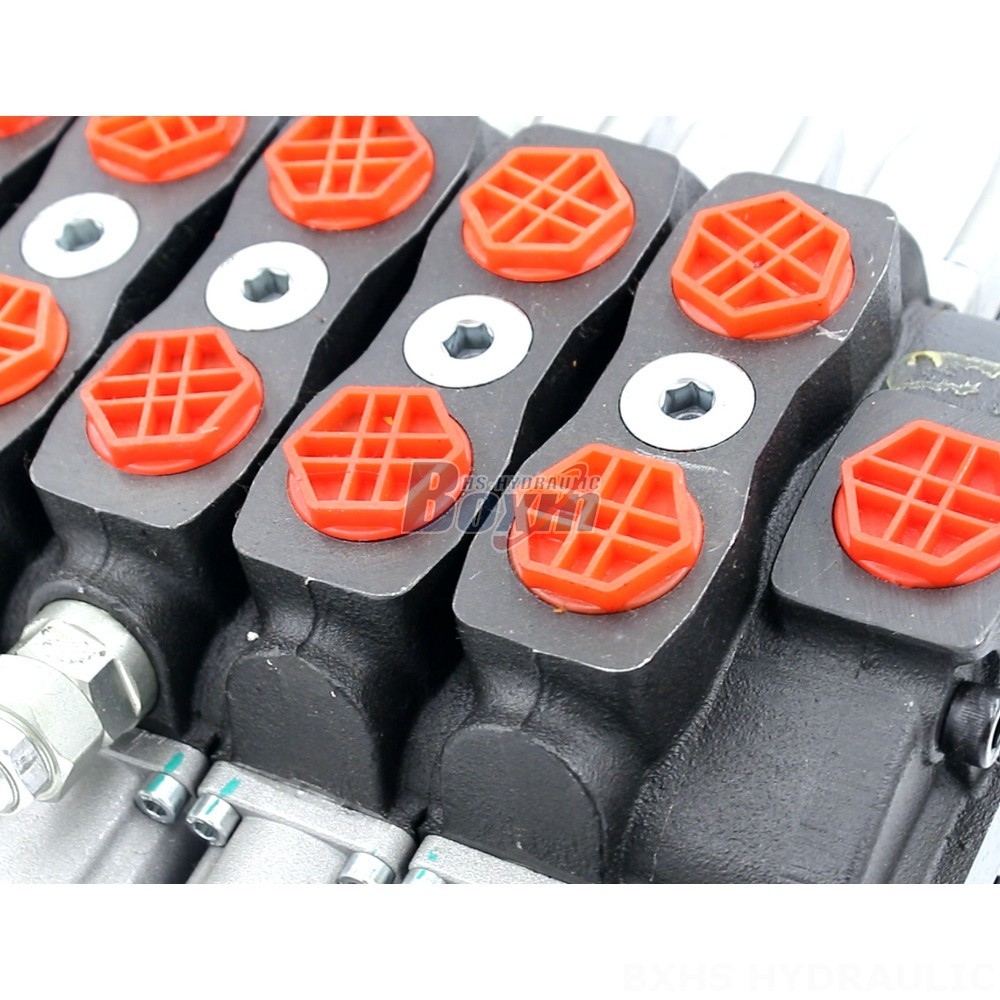

**SD8-Electric Unloading Valve**
The SD8-Electric Unloading Valve is a high-performance hydraulic directional control valve designed for a wide range of applications. With its 5-position, 4-solenoid configuration, it offers precise and reliable control of hydraulic systems. The valve is available in 12v and 24v options, making it suitable for use in various electrical systems.
**Key Features:**
* 5-position, 4-solenoid configuration
* Rated flow of 90 L/min
* Maximum pressure of 350 bar
* Manual control
* Compact and durable design
* Suitable for various applications, including material handling, construction, agriculture, and industrial vehicles
The SD8-Electric Unloading Valve is an excellent choice for applications requiring high flow capacity, precise control, and reliable performance. Its robust construction and high-quality components ensure long-lasting operation even in demanding conditions.
