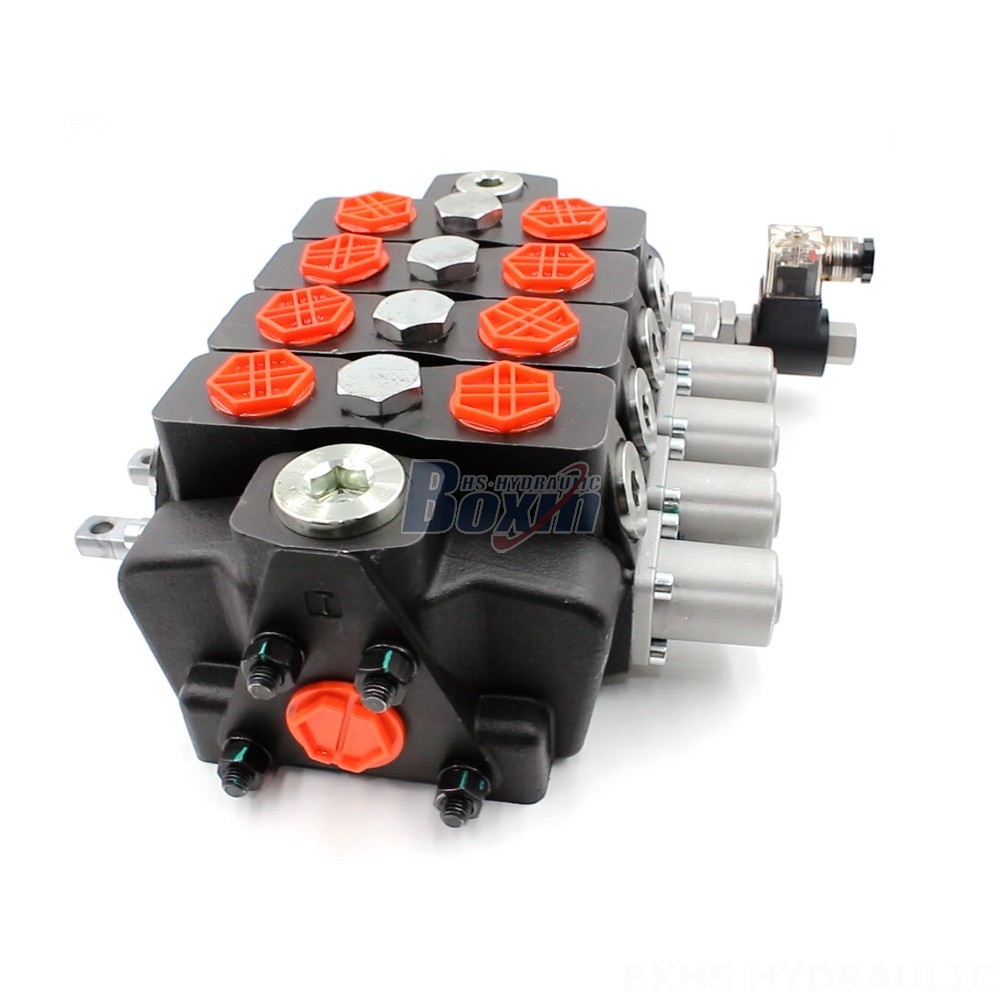

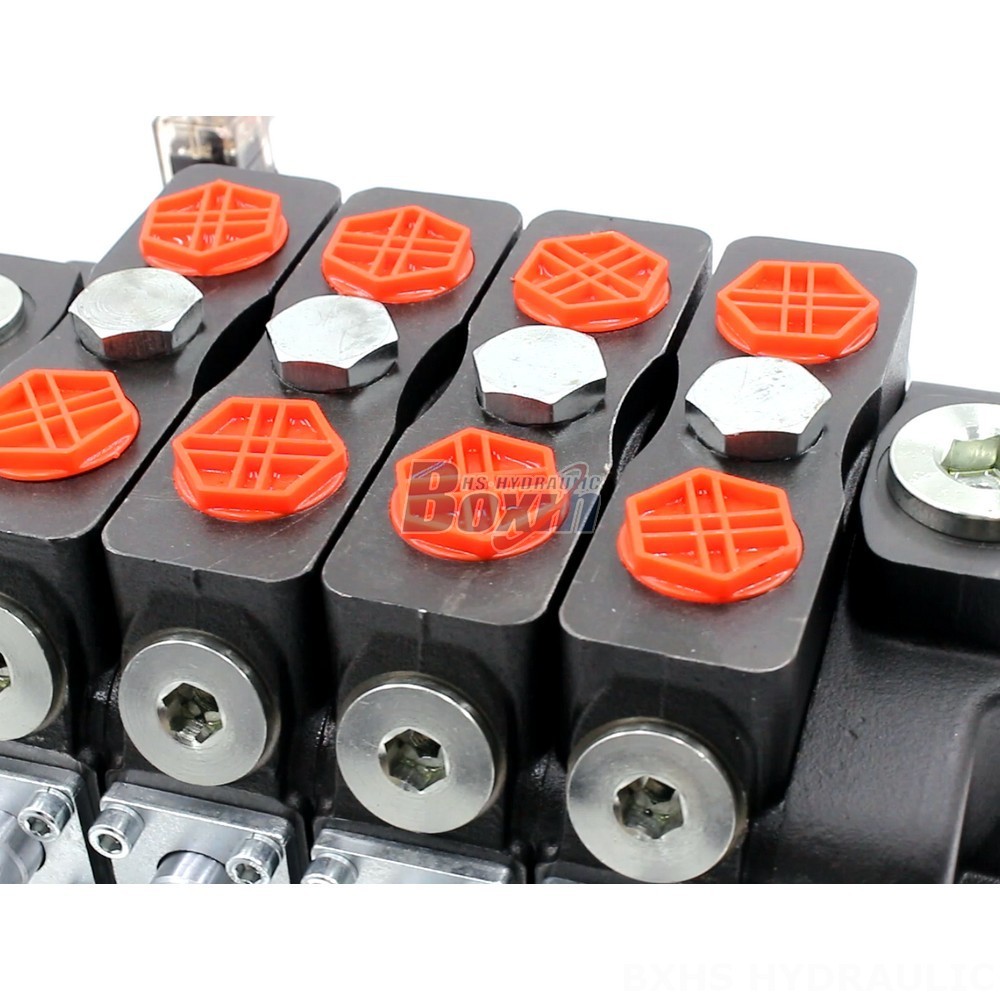

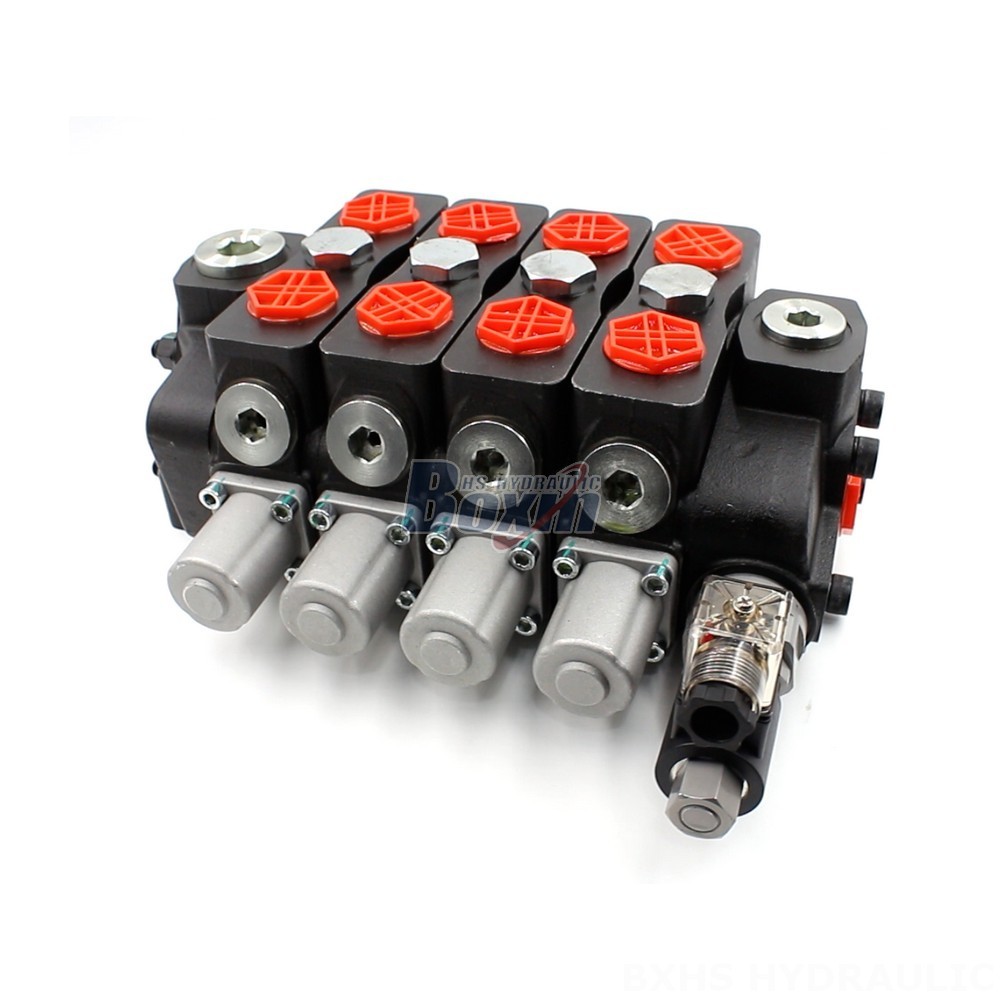

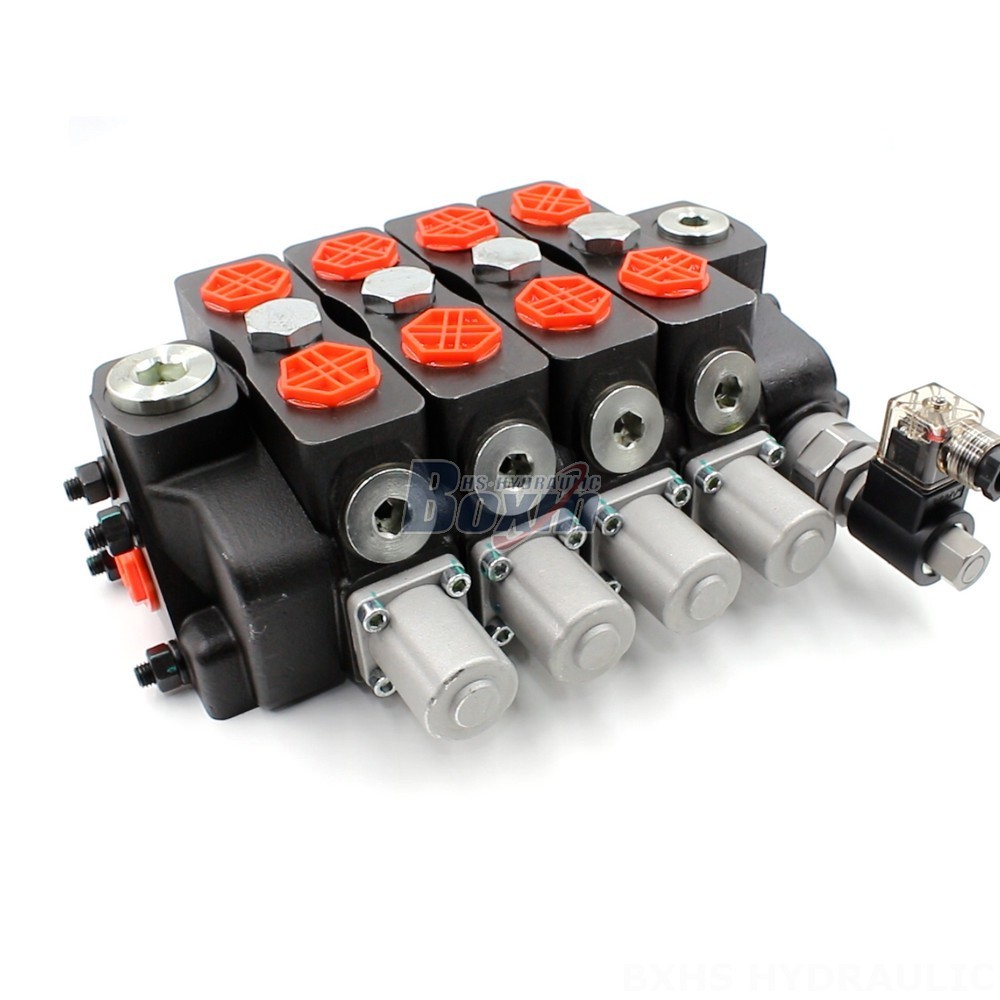

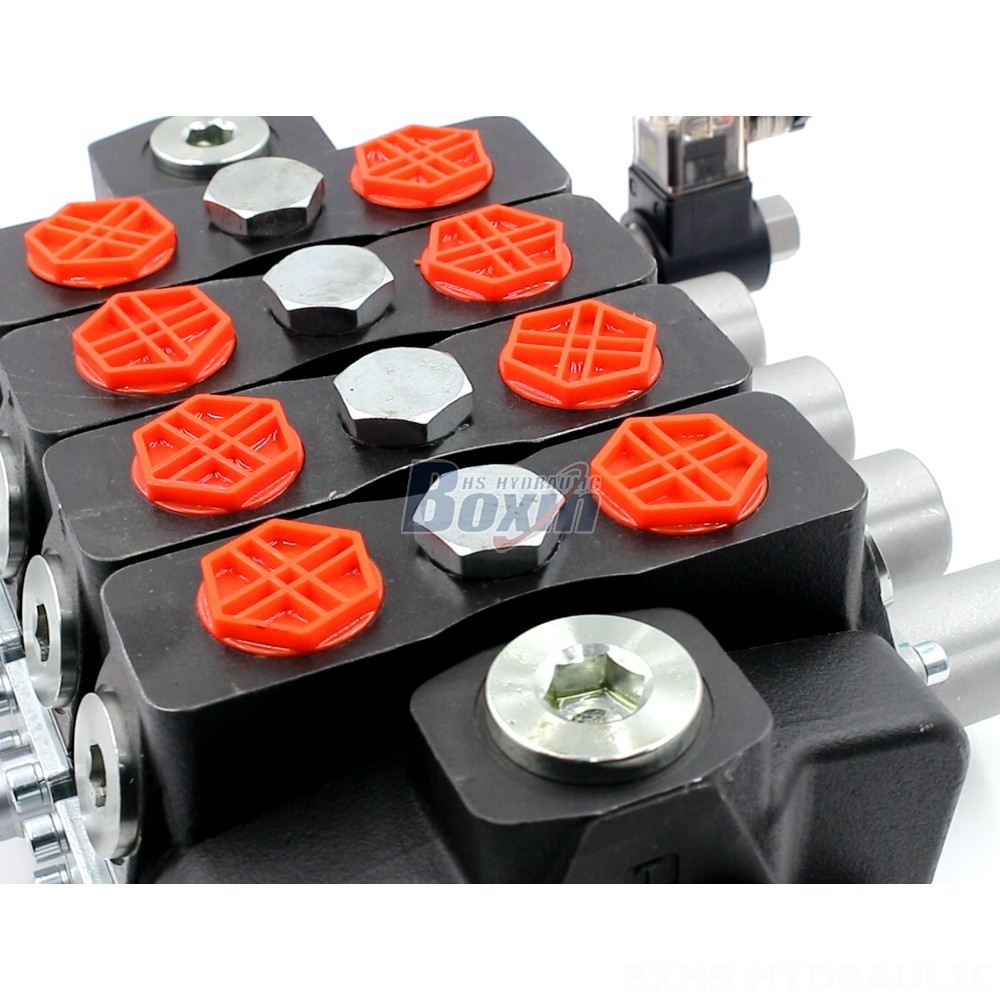

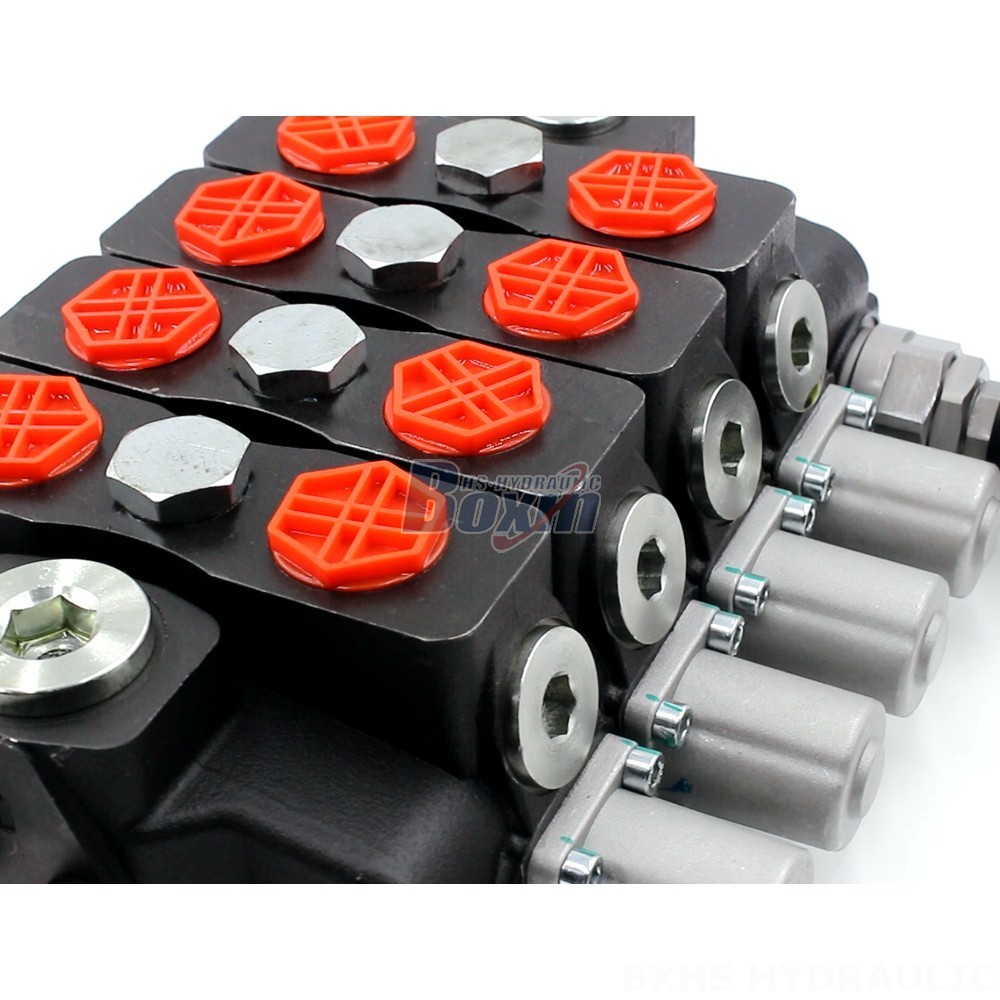

The SD8-Electric unloading valve is a 4-spool, manually controlled sectional directional valve designed for hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve provides precise and efficient control of hydraulic functions.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
**SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 4 Spool
**Series:** SD8 Series
The SD8-Electric unloading valve is a versatile and reliable solution for a wide range of hydraulic applications. Its robust design and high-quality components ensure long-lasting performance and durability. The valve's compact size and modular design make it easy to integrate into existing systems or design new ones.
**Key Features:**
* Manual control for precise operation
* High flow capacity (90 L/min)
* High pressure rating (350 bar)
* Suitable for various applications
* Compact and modular design
* Durable and reliable construction
