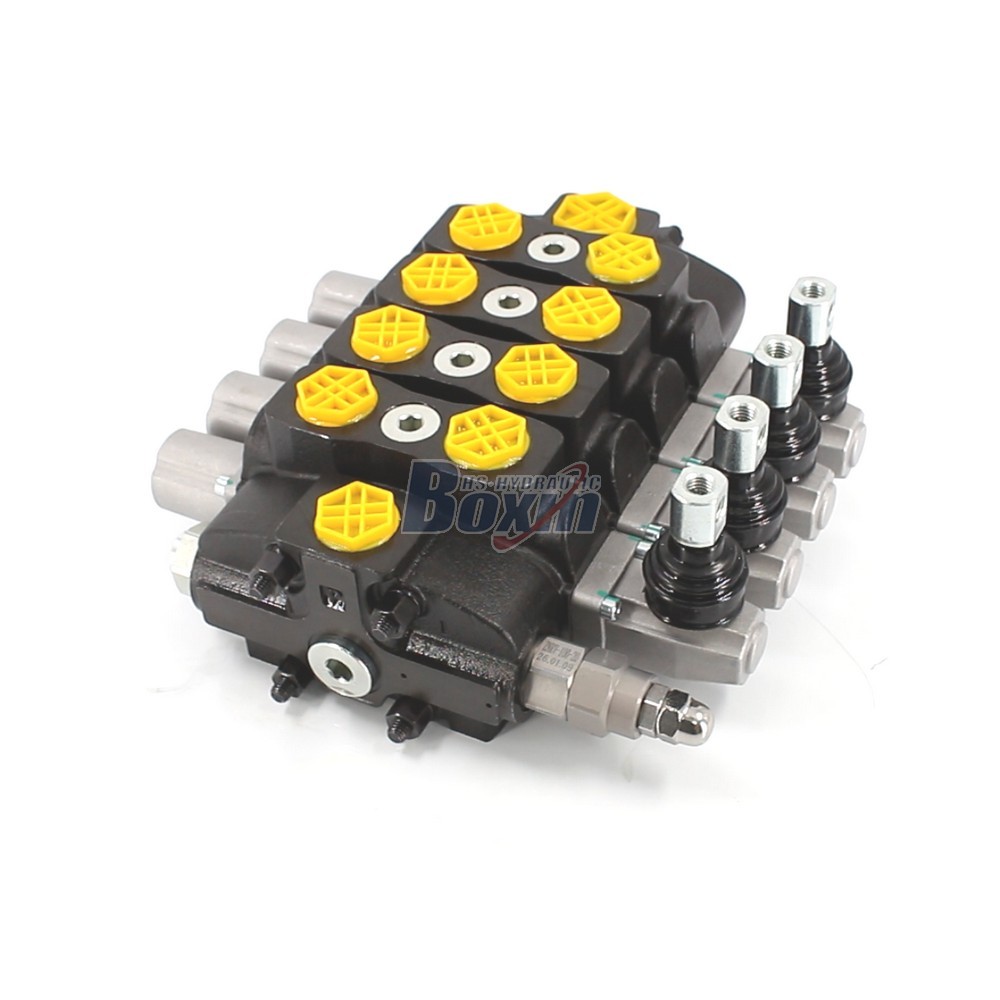

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

Kontrollmetod:Manuell

Spole:4 ventilsektioner

Nominellt flöde:90 l/min (23,8 US gpm)

Maximalt tryck:315 bar (4600 psi)

Inloppsport:G1/2

Utloppsport:G3/4

Portstorlek:G1/2

Märke:BXHS

Produkttyp:Sektionsstyrvventil

Produktserie:SD8-serien Sektionsstyrvventil

Förpackningsstorlek:32*36*16

Bruttovikt:18.00 kg

Tillgänglighet: I lager

109 Vyer letar efter den här produkten

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

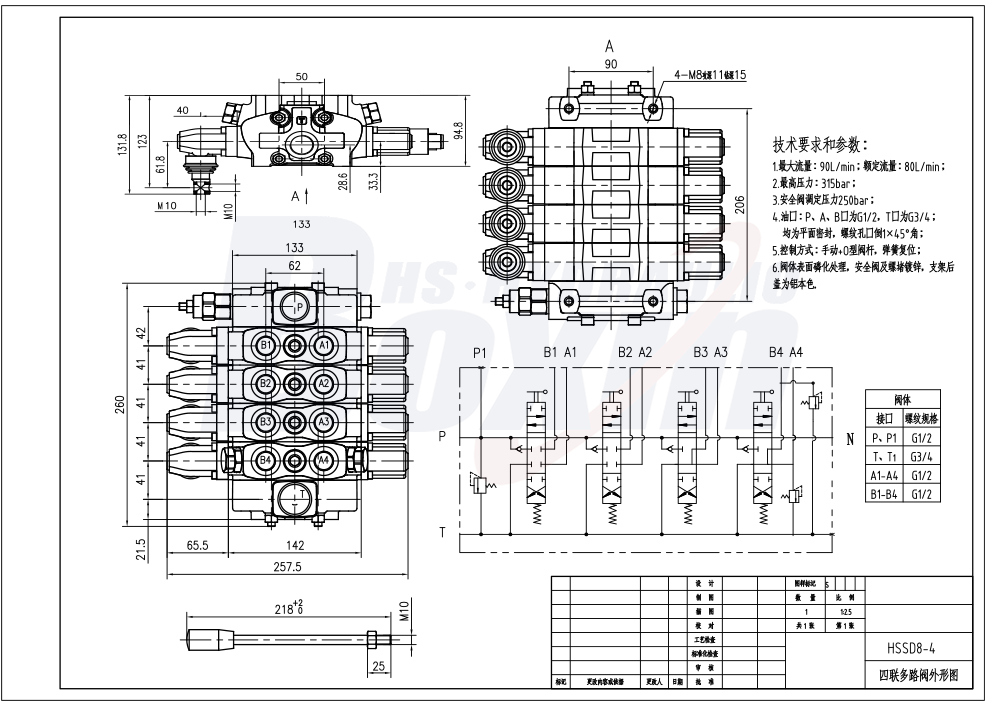

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 4 Spool Manual Sectional Directional Valve is a high-performance hydraulic control solution designed for flow rates up to 80 L/min and pressures up to 315 bar. Ideal for material handling, agriculture, and construction machinery, it offers precise manual control for versatile industrial applications.

SD8-serien Sektionsstyrvventil Parametrar
Kontrollmetod Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick
Spole 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner
Omgivningstemperaturintervall -40°C till +80°C (-40°F till +176°F)
Strukturtyp Sektionsventil
Sektion 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner
Driftsviskositetsintervall 12 - 400 mm²/s (12 cSt till 400 cSt)
Nominellt flöde 90 l/min (23,8 US gpm)
Maximalt tryck 315 bar (4600 psi)
Inloppsport G1/2, G3/4, SAE 10
Utloppsport G1/2, G3/4, SAE 10, 3/4 NPT
Portstorlek G1/2, SAE 10

As a leading manufacturer of hydraulic components, we specialize in offering the SD8 Series 4 Spool Sectional Directional Valve to the global market. This robust manual valve is engineered for demanding environments, featuring a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capability of 315 bar (4600 psi). It is widely applicable for forklifts, mini-excavators, tractors, skid steer loaders, and wood splitters. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom configurations to meet specific technical requirements. Our factory ensures stable supply and competitive wholesale pricing for large-scale orders. We are actively seeking long-term cooperation with international distributors, wholesalers, agents, and professional traders. By partnering with us, you gain access to factory-direct supply, reliable technical support, and high-quality hydraulic solutions tailored for construction, agricultural, and industrial vehicle sectors.
