Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1061 Vyer letar efter den här produkten

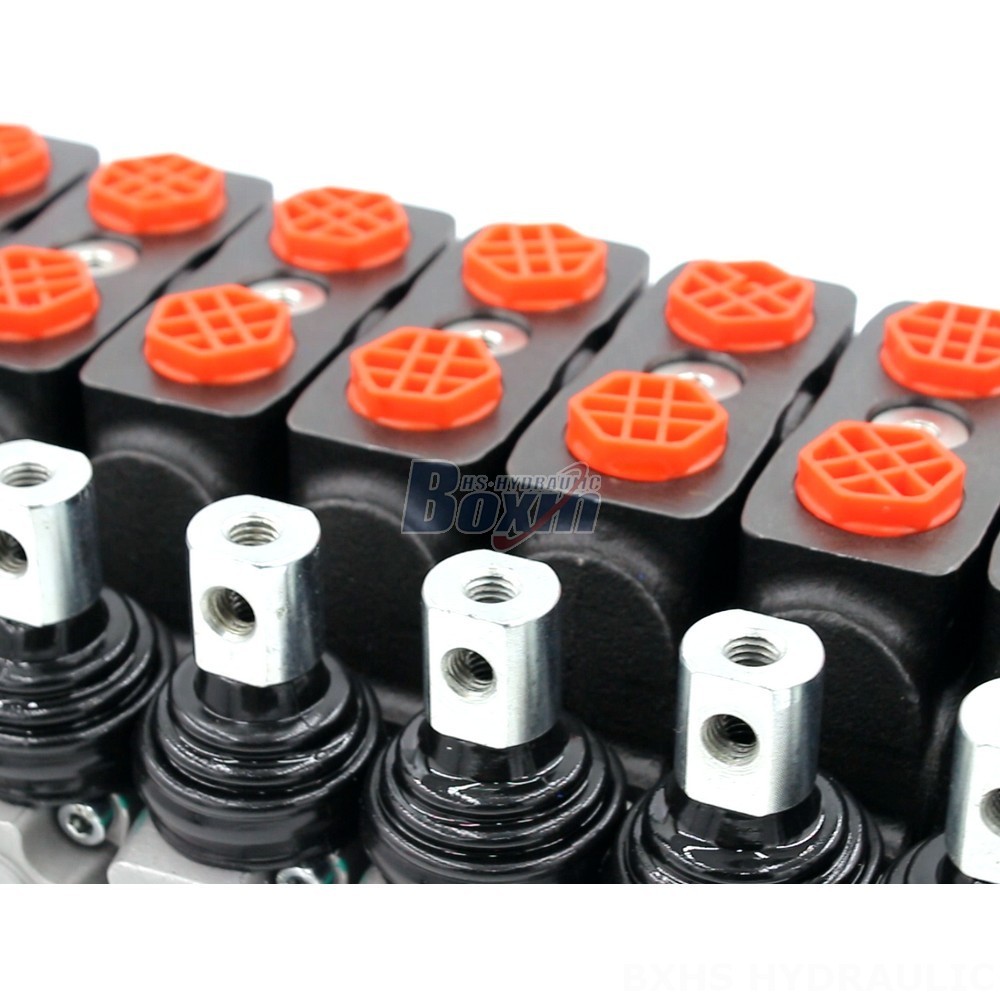

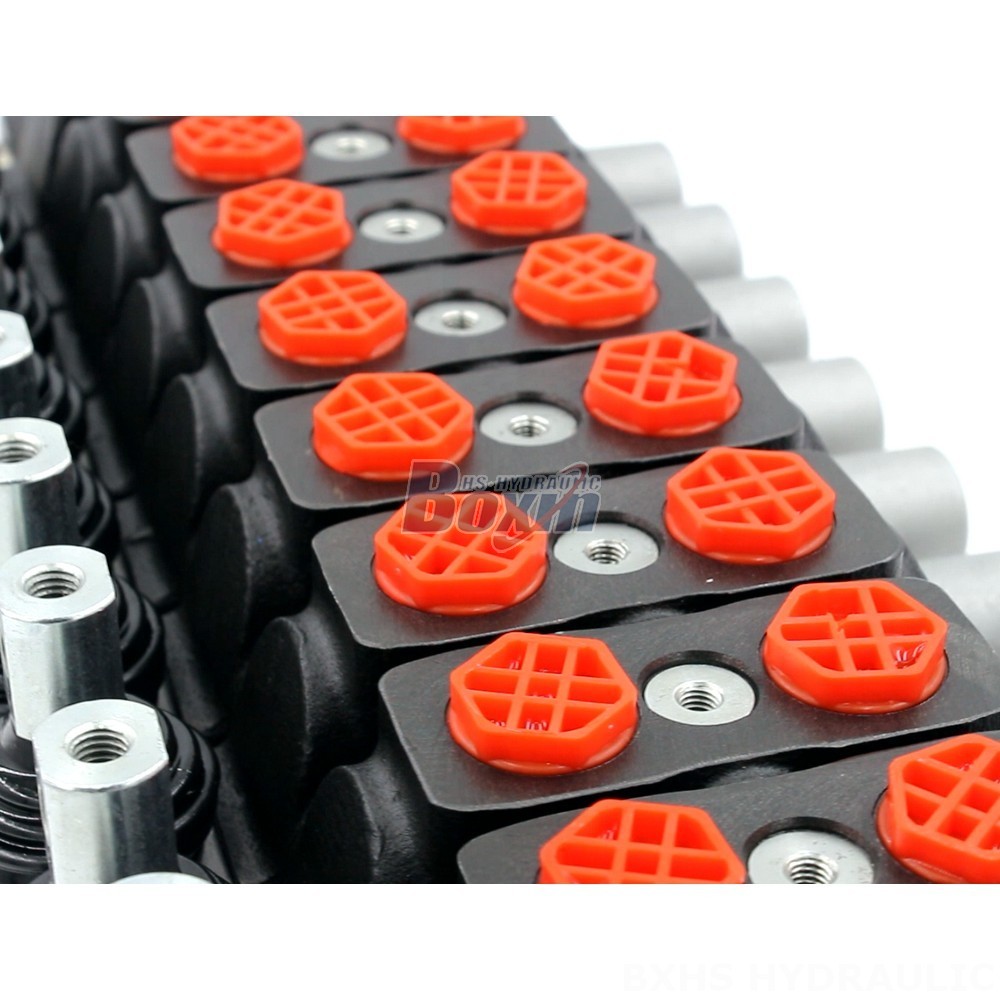

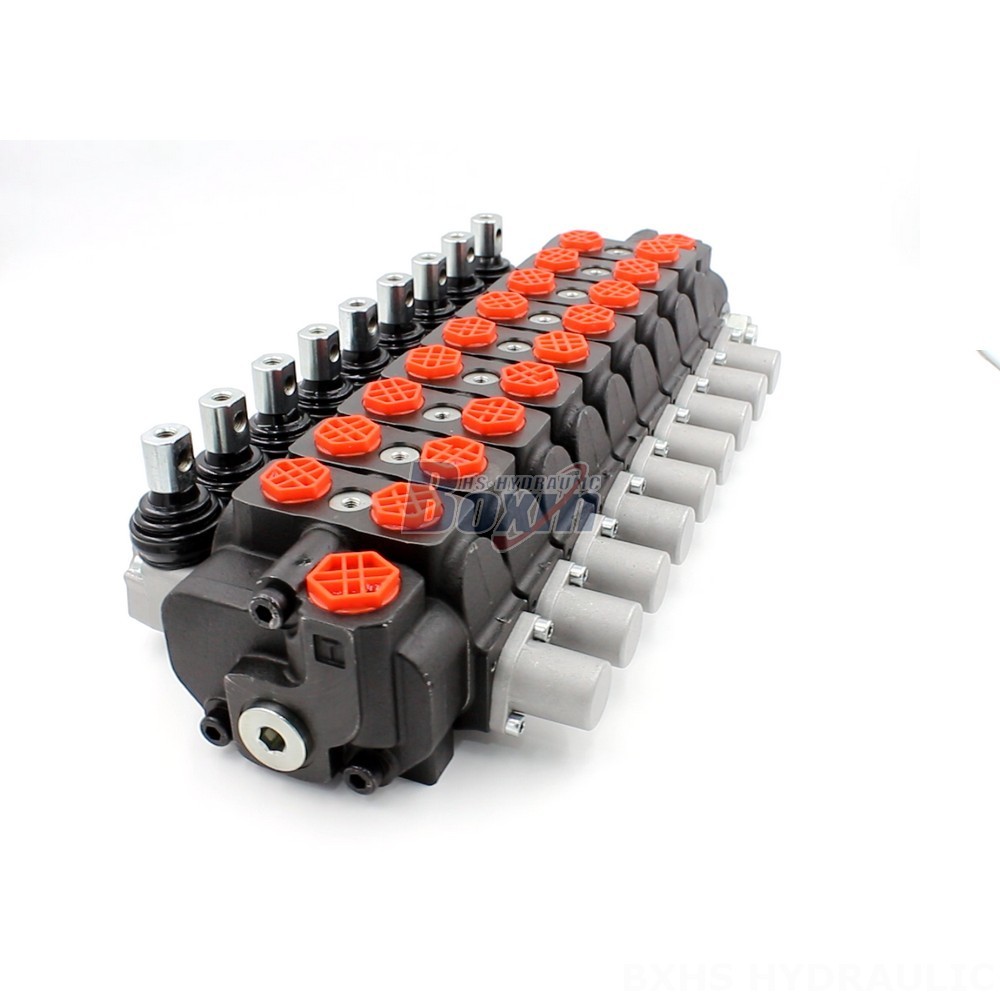

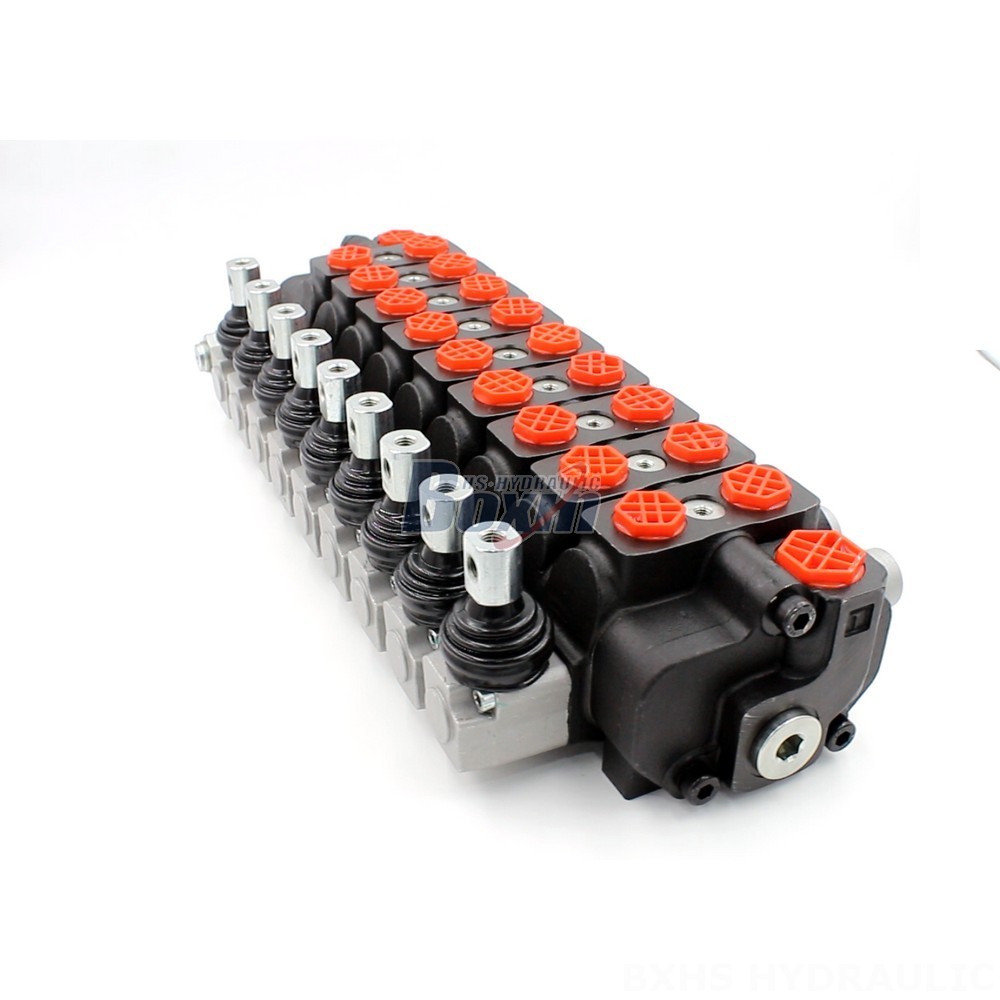

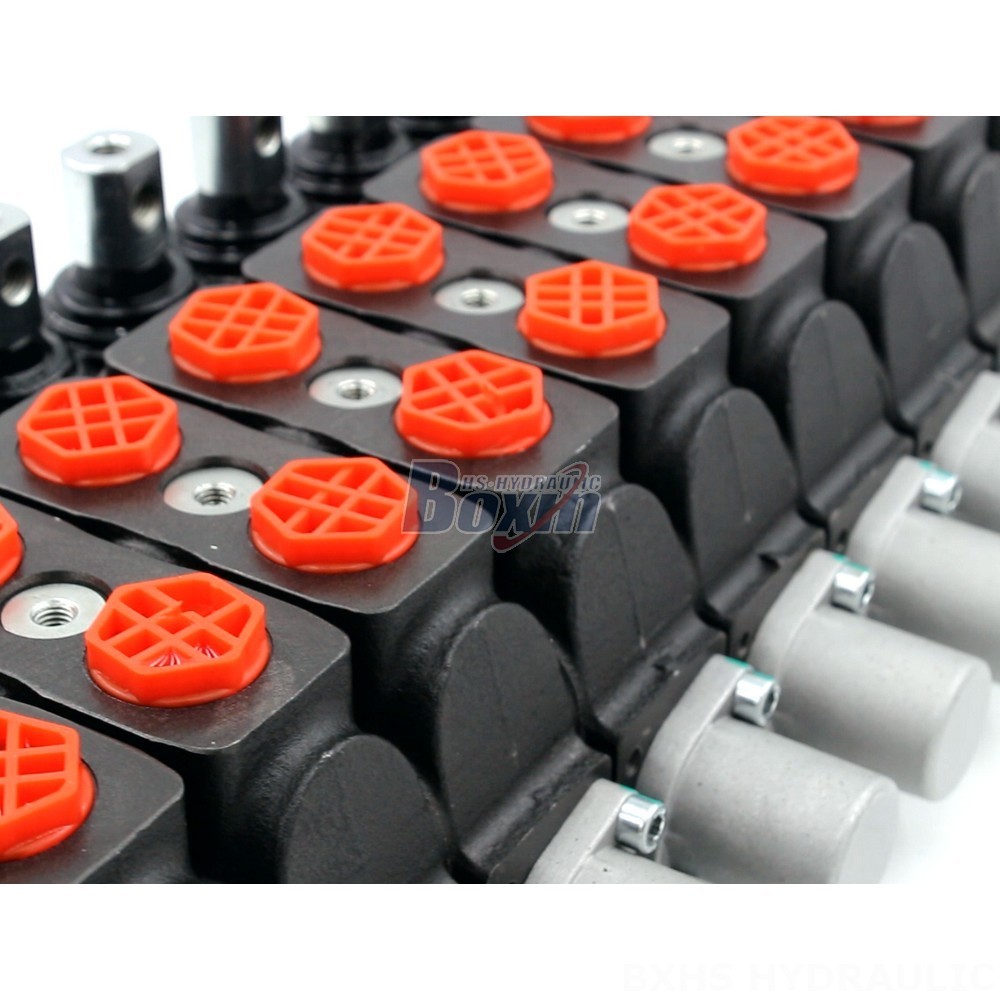

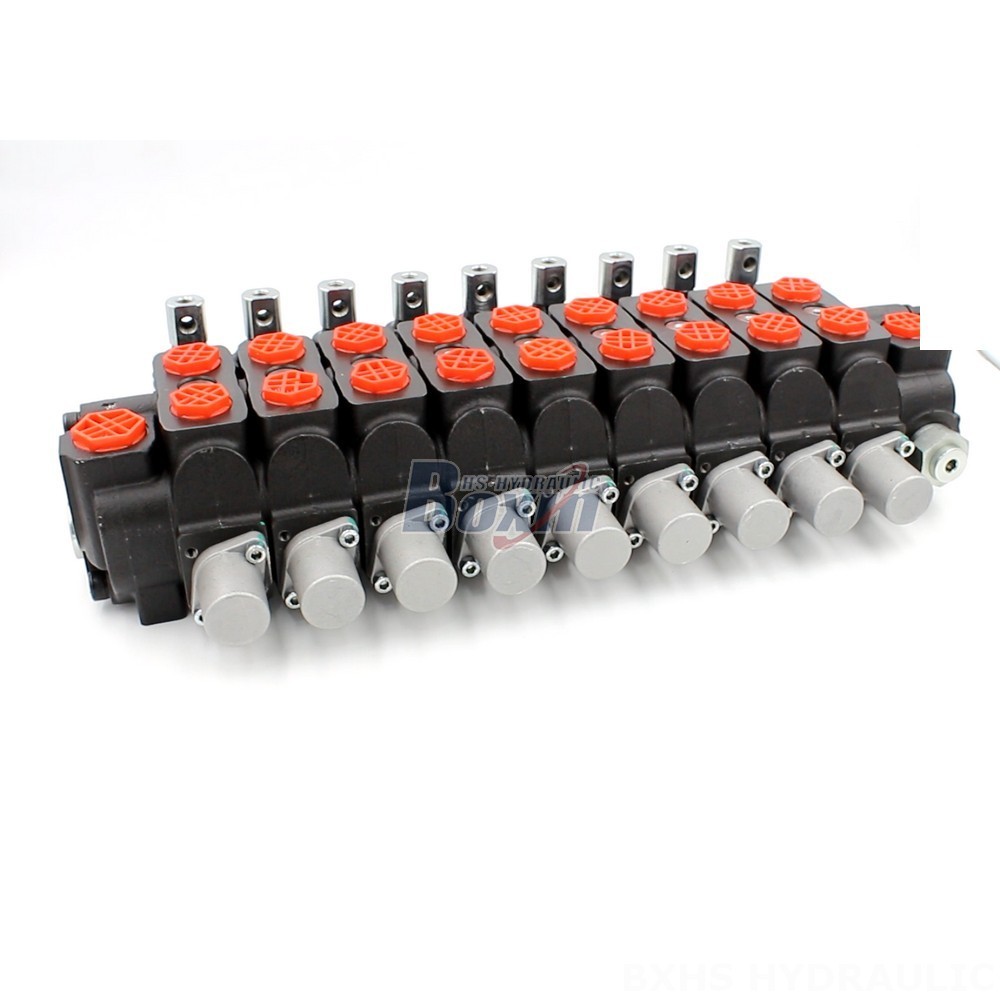

The SD8 Manual Hydraulic Directional Valve is a high-performance, 9-section, sectional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers manual control, a rated flow of 90 L/min, and a maximum pressure of 350 bar.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
The SD8 Series Manual Hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 9-section, sectional valve features a manual control mechanism for easy operation. Its rated flow of 90 L/min and maximum pressure of 350 bar make it ideal for heavy-duty applications. The valve is designed to operate in temperatures ranging from -40°C to +80°C, making it suitable for a wide range of environments. It is compatible with a variety of hydraulic systems and is commonly used in telehandlers, forklifts, cranes, excavators, loaders, and other industrial vehicles.
