The SD8 Solenoid and Joystick 3 Spool Sectional Directional Valve is a high-performance hydraulic control valve designed for a wide range of applications in various industries. With its advanced solenoid and joystick control, 3-spool sectional structure, and robust design, the SD8 valve offers precise and reliable flow control for hydraulic systems.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |

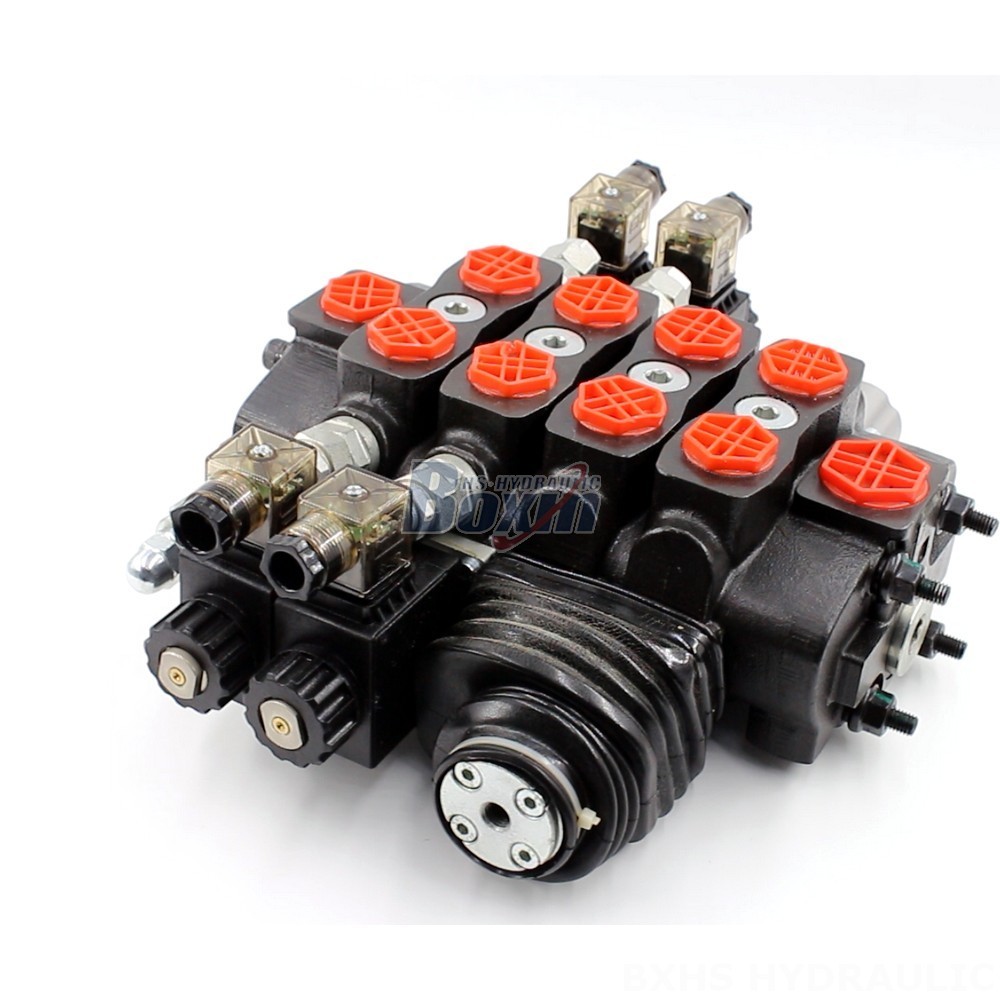

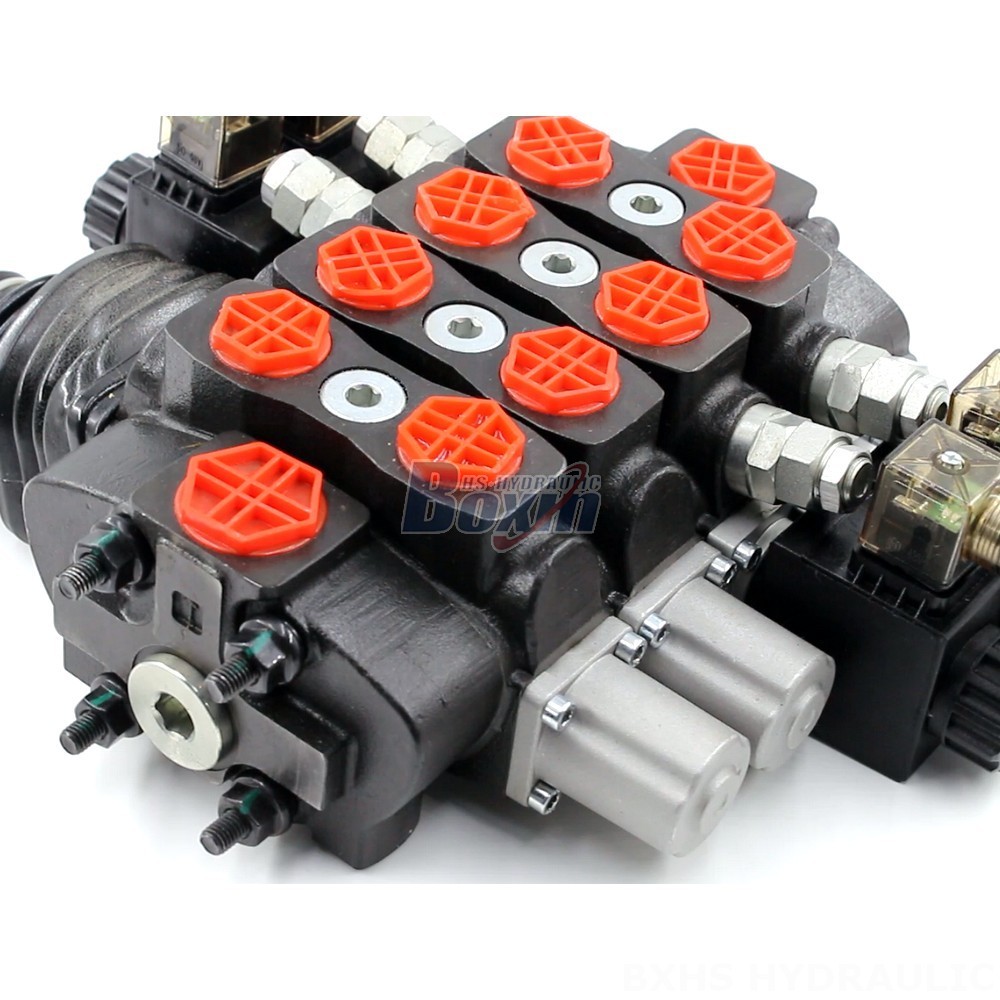

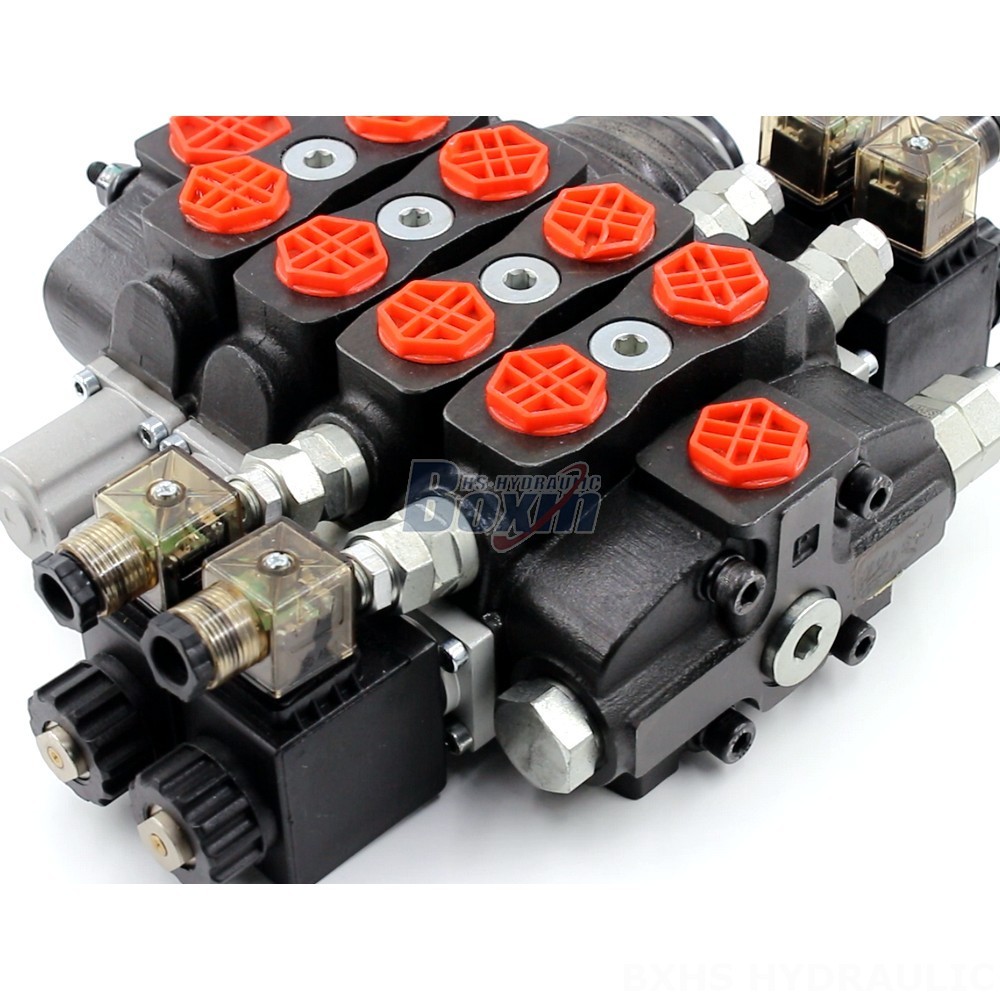

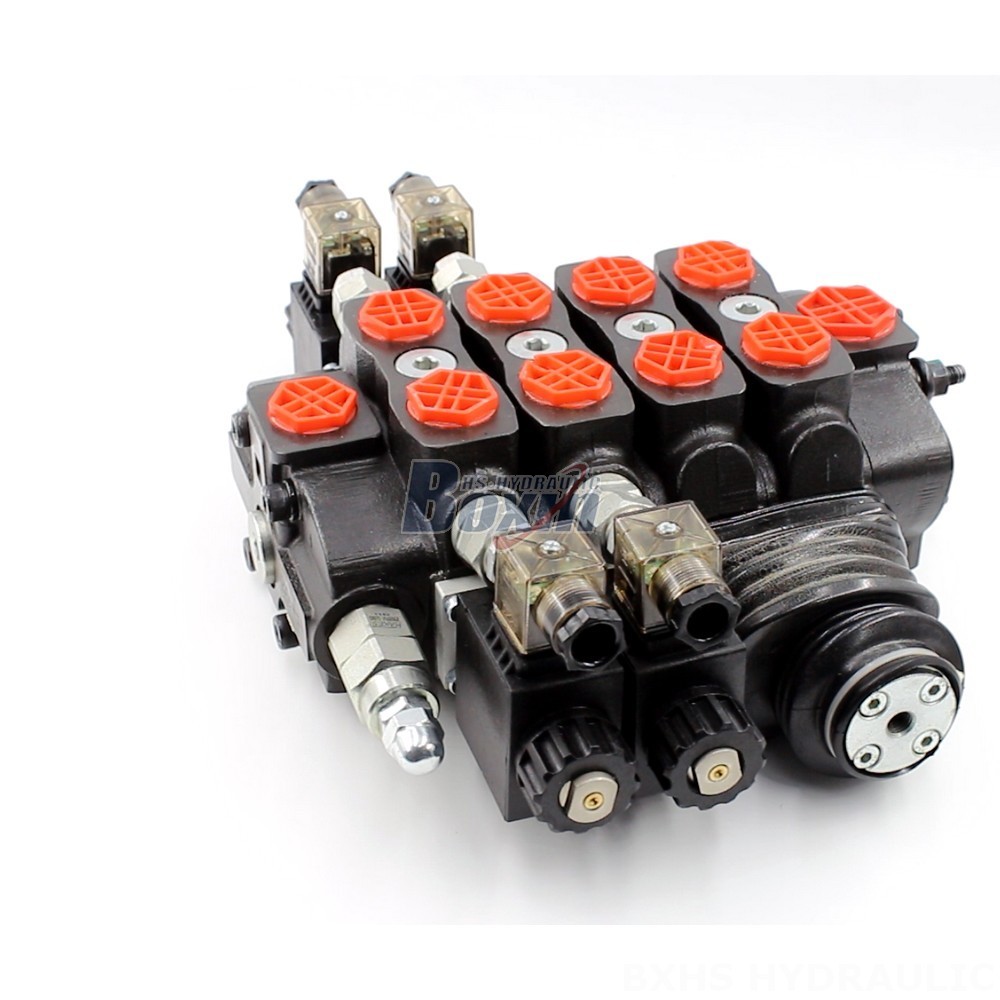

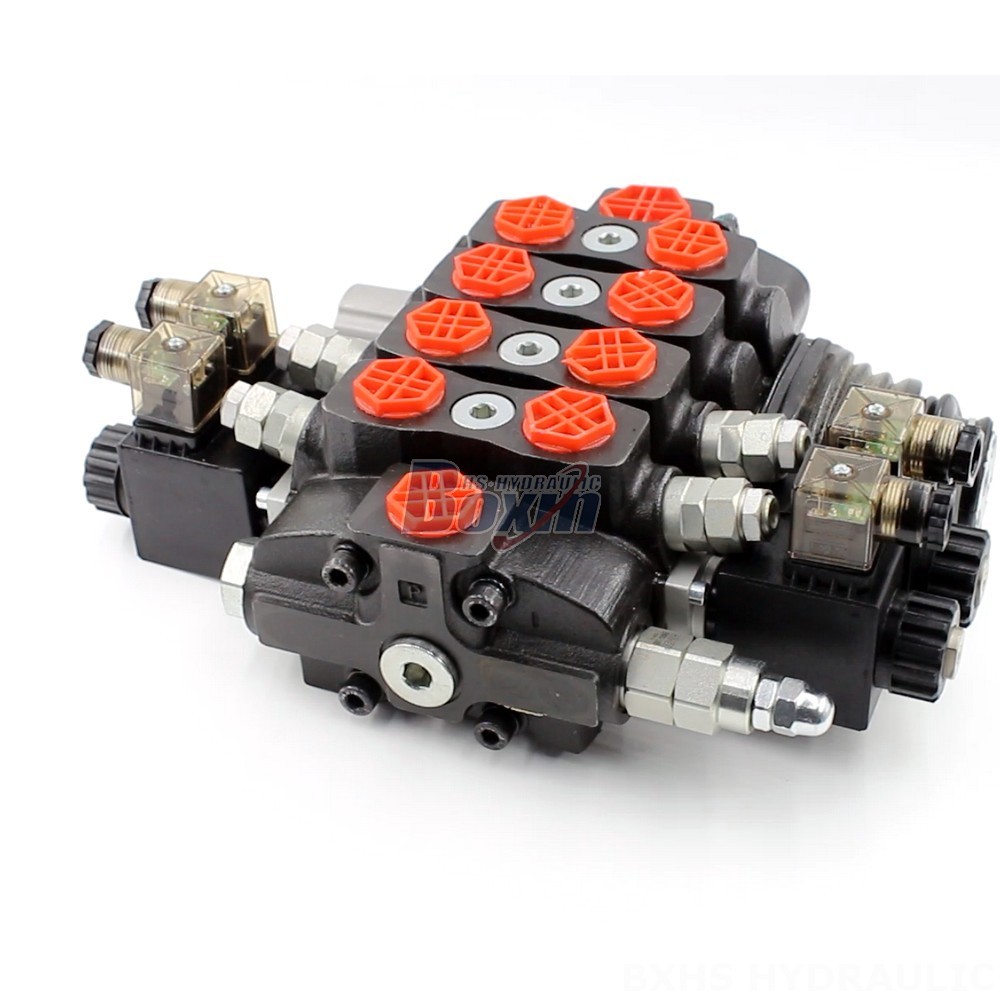

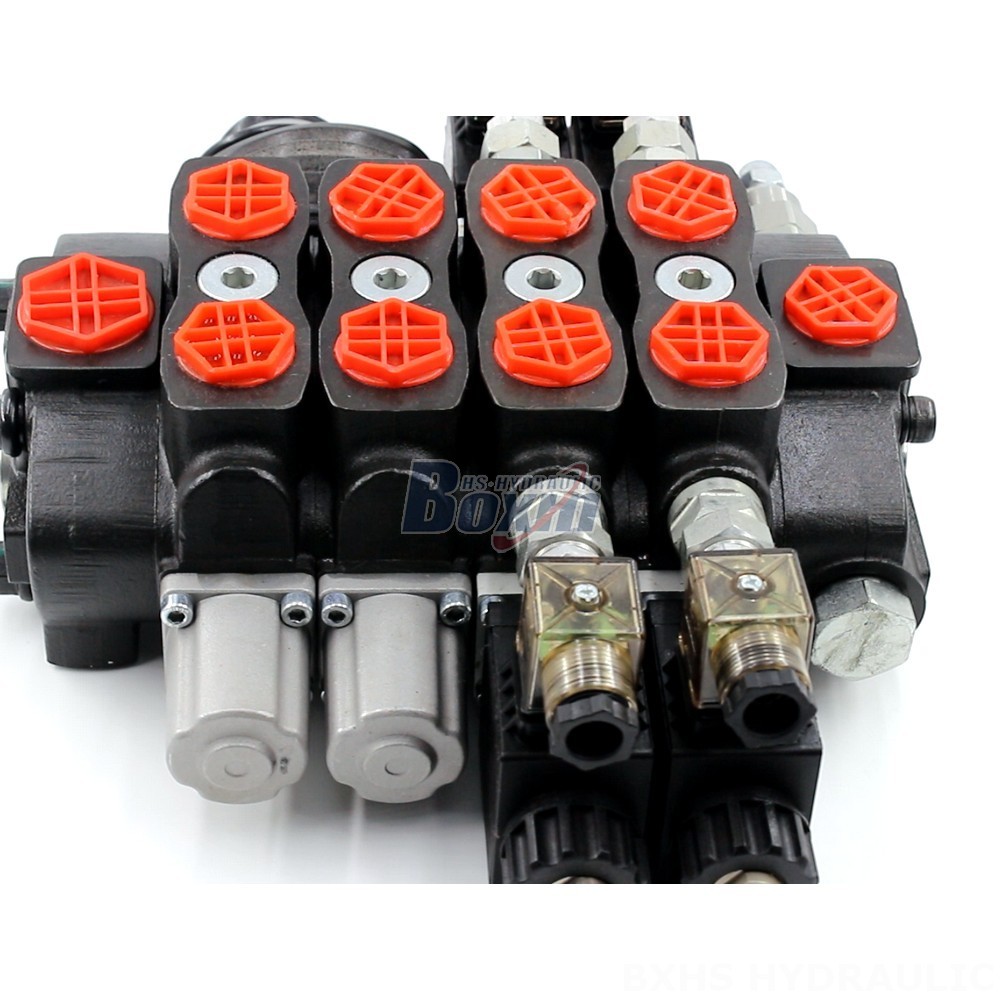

**SD8 Solenoid and Joystick 3 Spool Sectional Directional Valve**
**Control Method:** Solenoid and Joystick
**Section:** 3 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 3 Spool
**Series:** SD8 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
The SD8 Sectional Directional Valve is a versatile and durable component for controlling the flow of hydraulic fluid in various industrial applications. Its solenoid and joystick control provides precise and responsive operation, while the 3-spool sectional design allows for customization and flexibility in system configuration.
