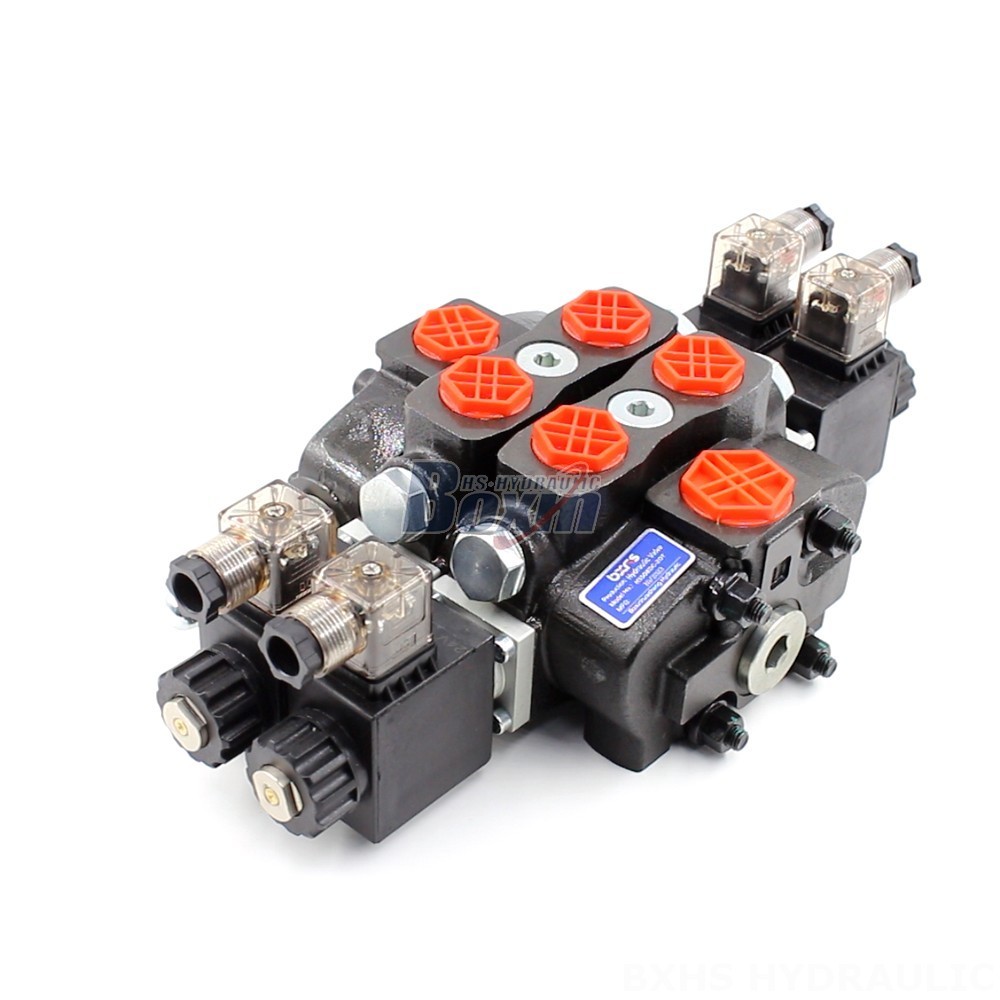

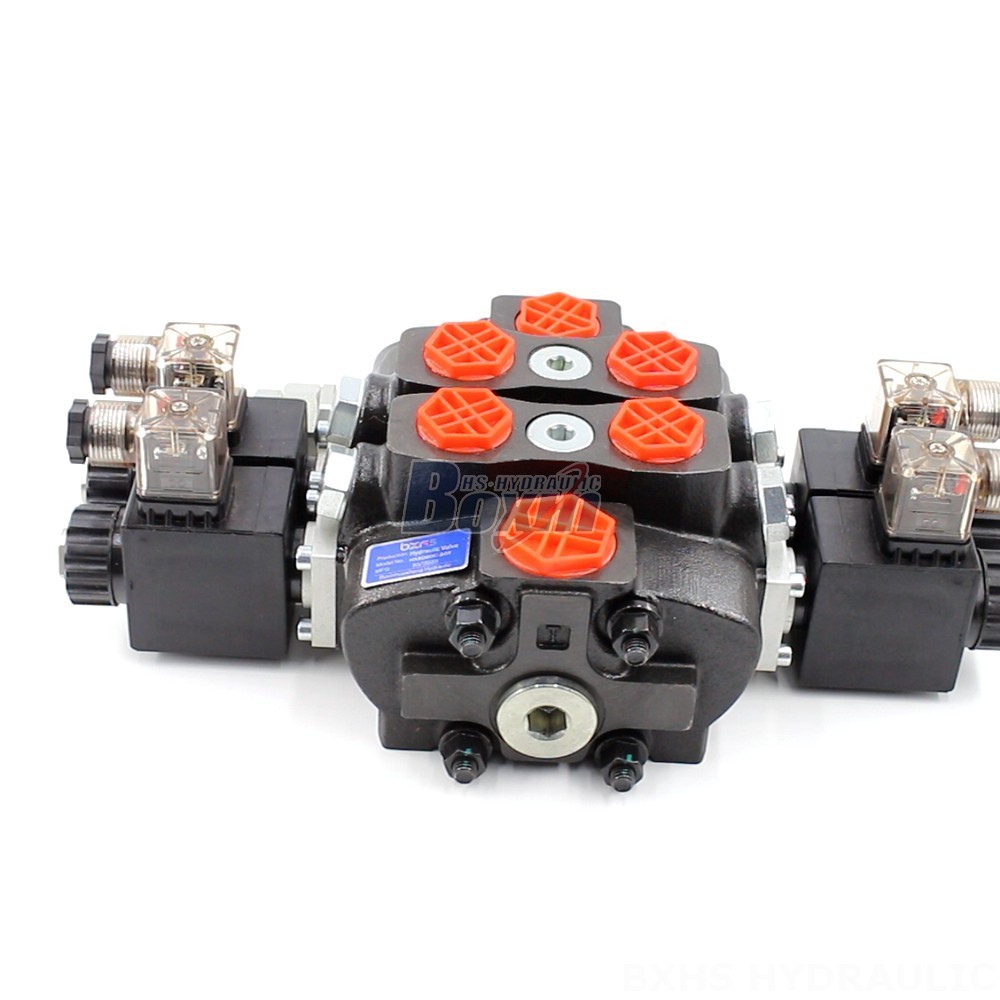

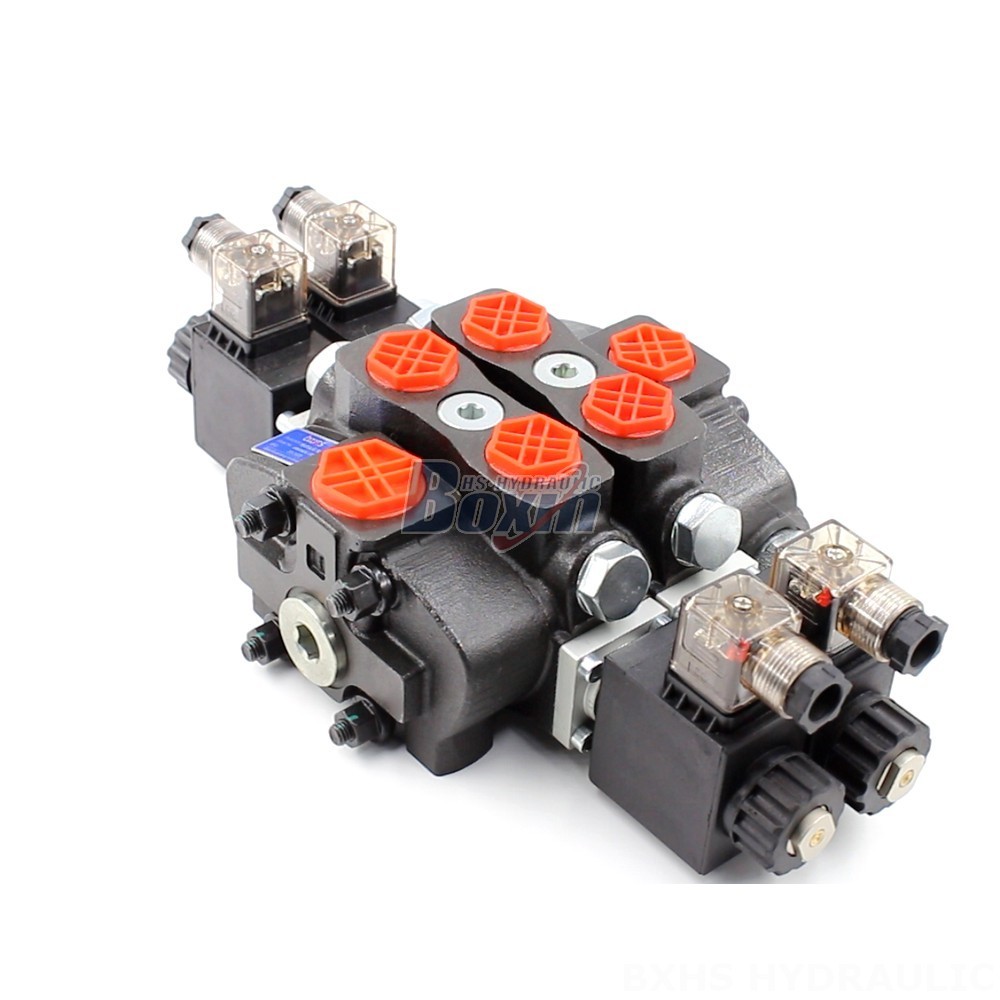

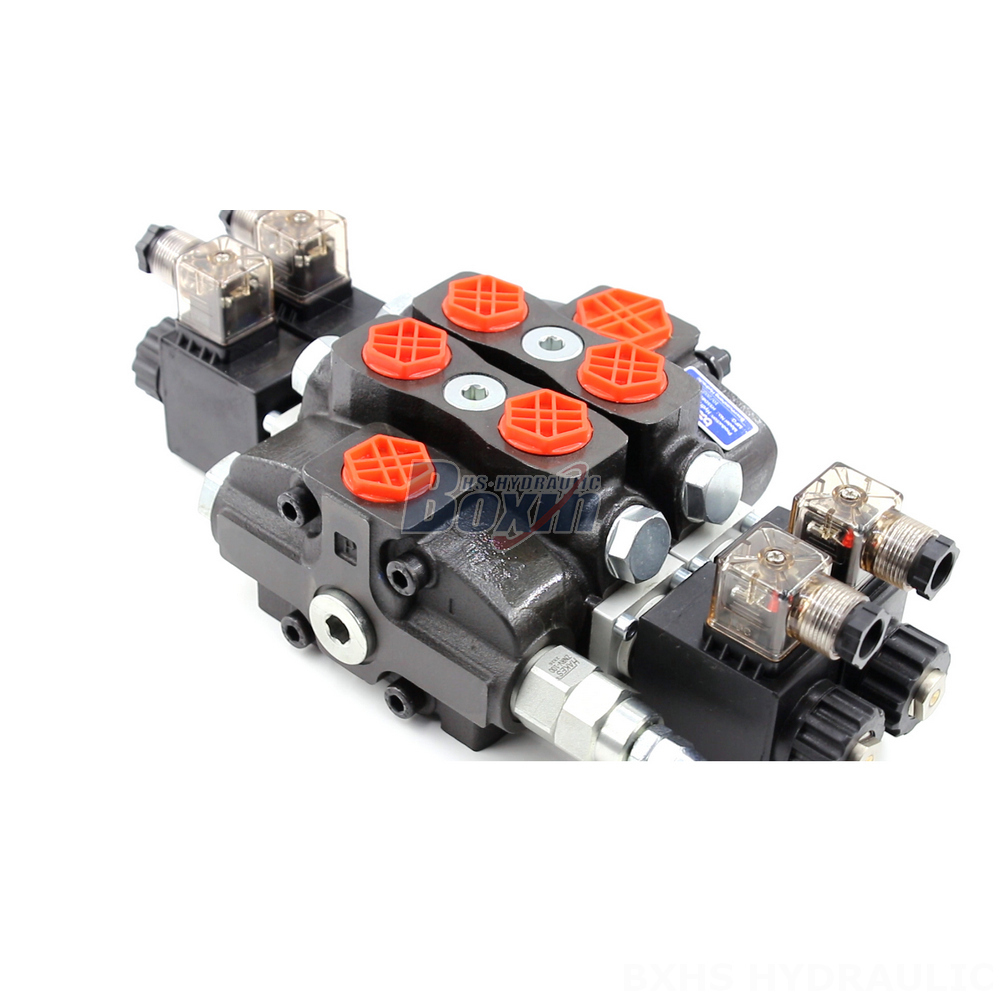

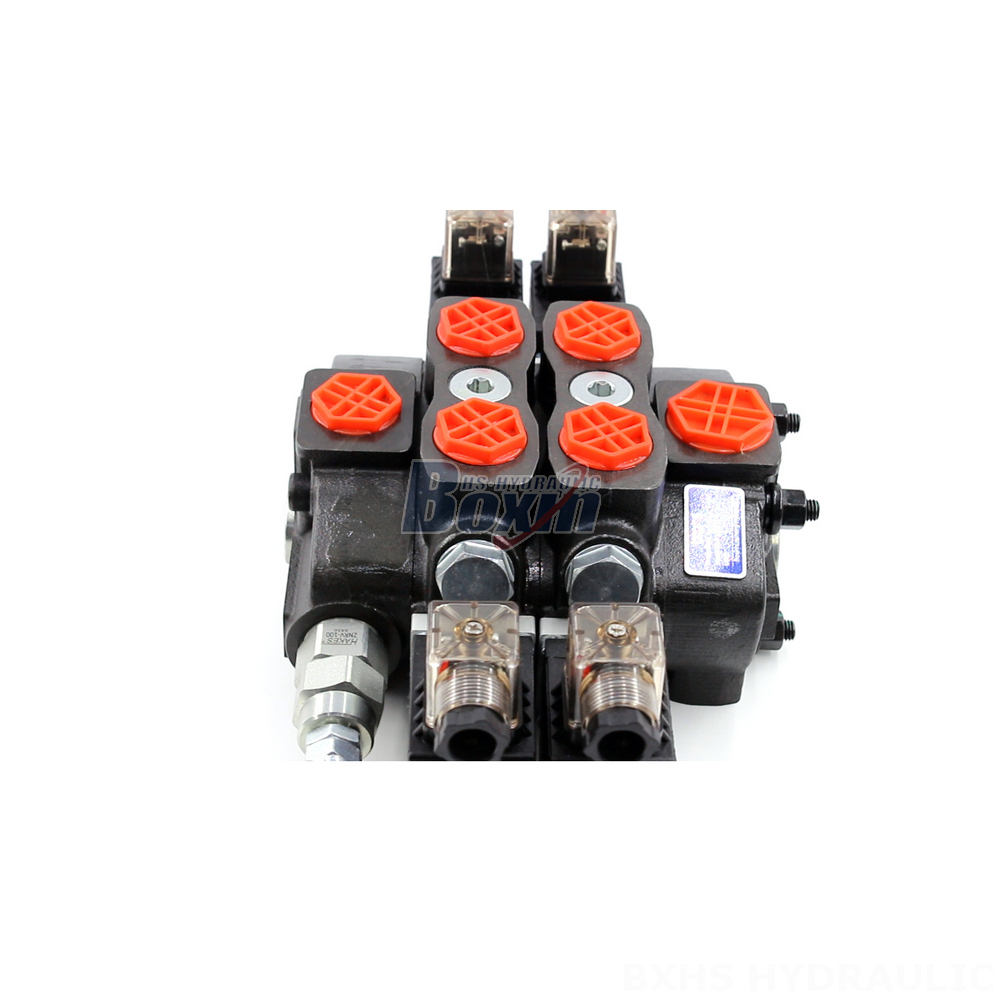

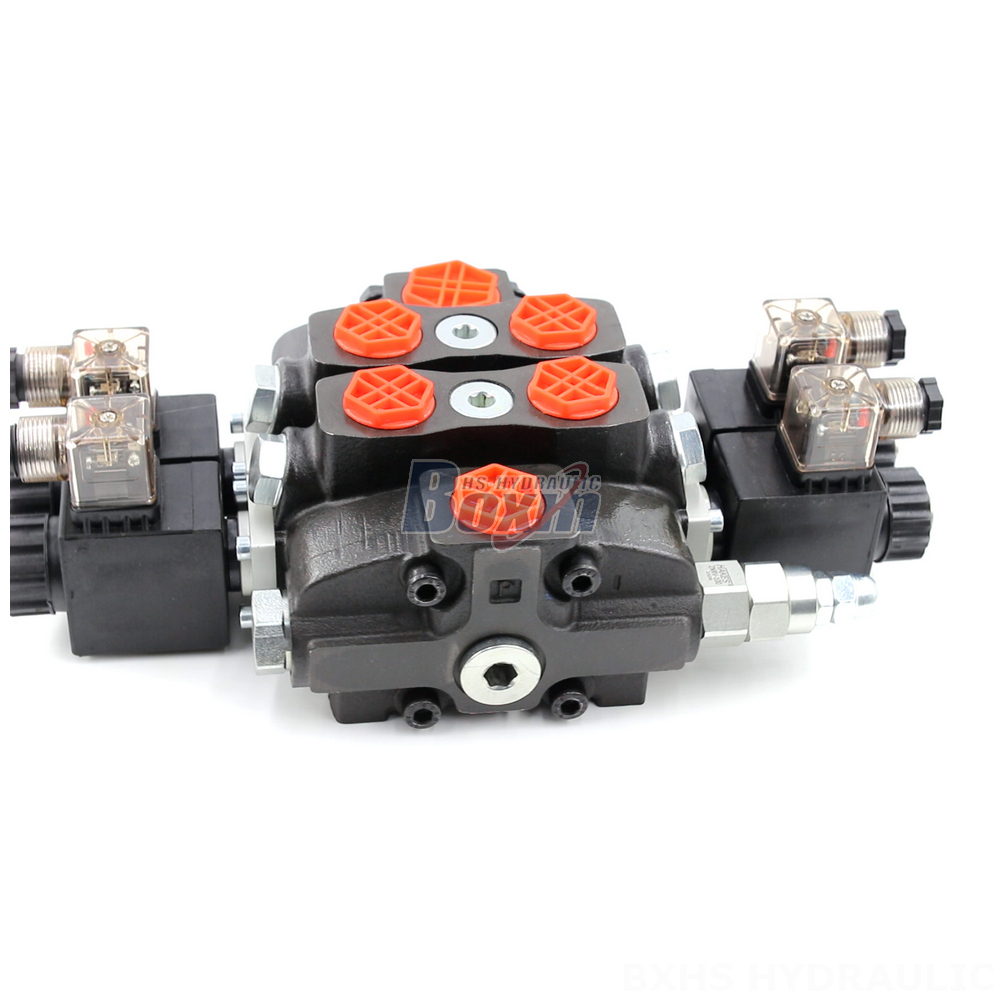

The Hydraulic Valve Control Flow On Off 60 Gpm SD8 Solenoid Valve is a high-performance, reliable valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a compact design, high flow rate, and durable construction, making it ideal for controlling hydraulic systems in a wide range of equipment.
| SD8-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 90 l/min (23,8 US gpm) |
| Maximalt tryck | 315 bar (4600 psi) |
| Inloppsport | G1/2, G3/4, SAE 10 |
| Utloppsport | G1/2, G3/4, SAE 10, 3/4 NPT |
| Portstorlek | G1/2, SAE 10 |
This 2-section, sectional valve offers a rated flow of 90 L/min (23.8 US gpm) and can withstand a maximum pressure of 350 bar (5100 psi). It is designed for use with hydraulic fluids with a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The valve features a 2-spool configuration and is part of the SD8 series. We offer OEM, ODM, private labeling, and custom solutions to meet your specific needs. Contact us today to discuss your requirements and explore how we can help you achieve your project goals.
