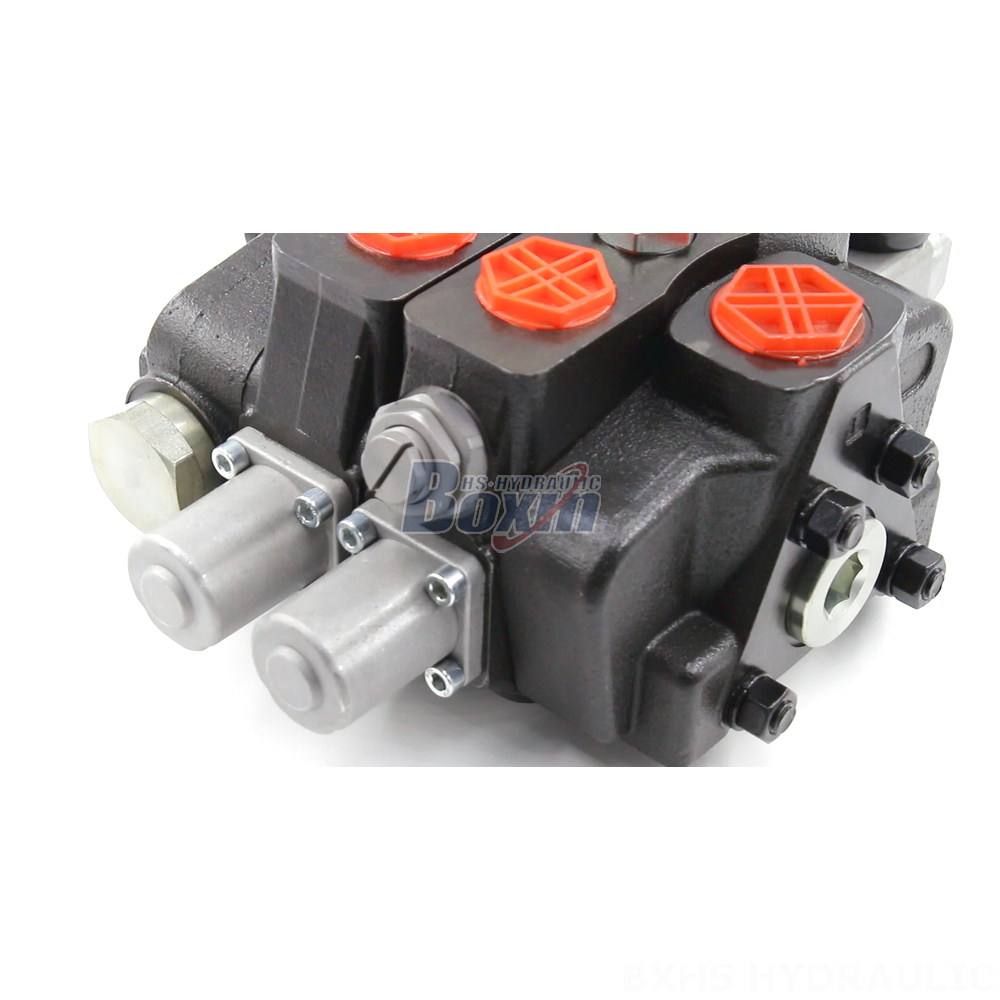

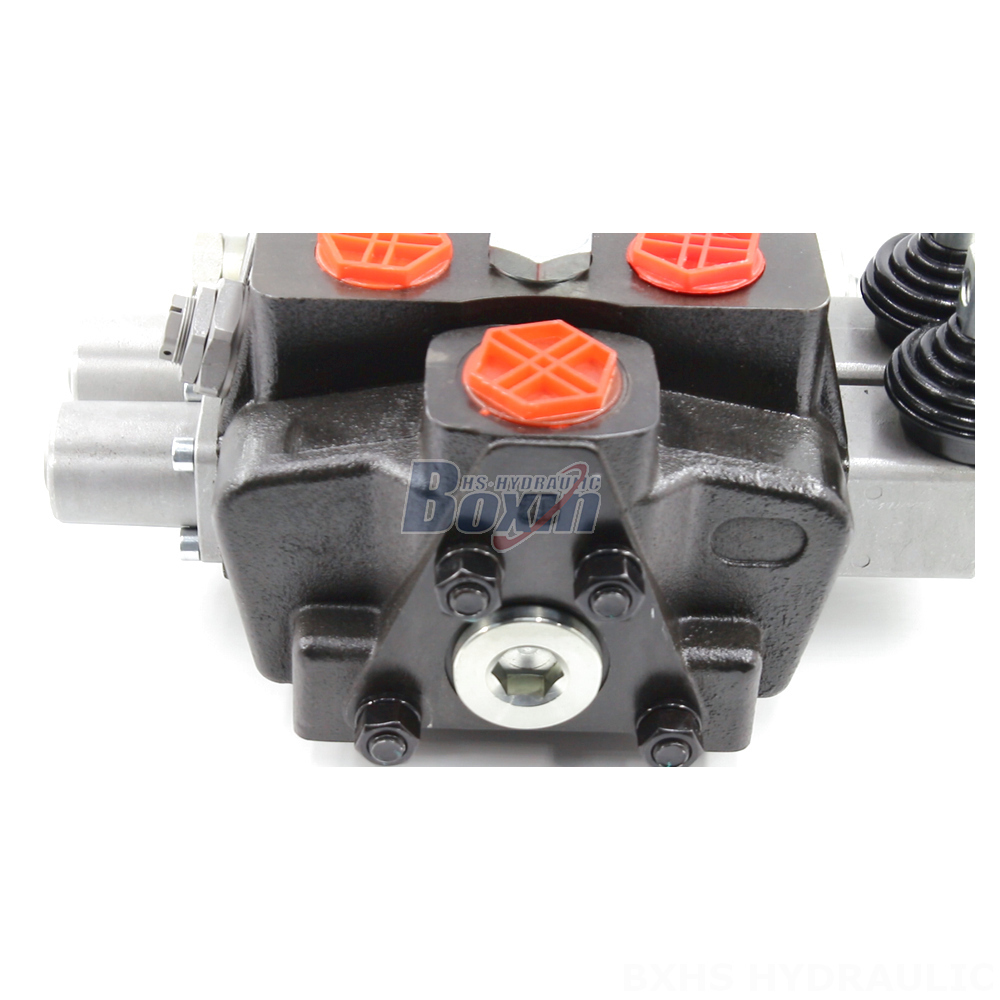

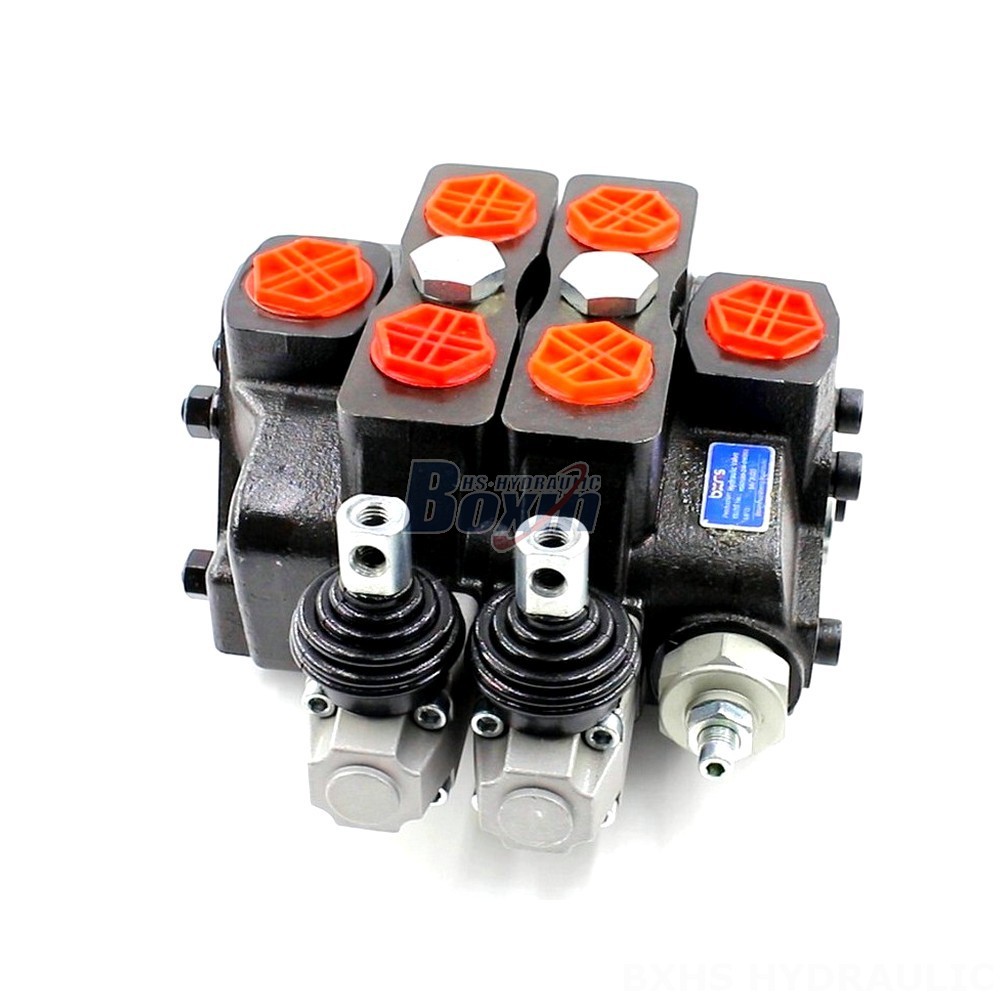

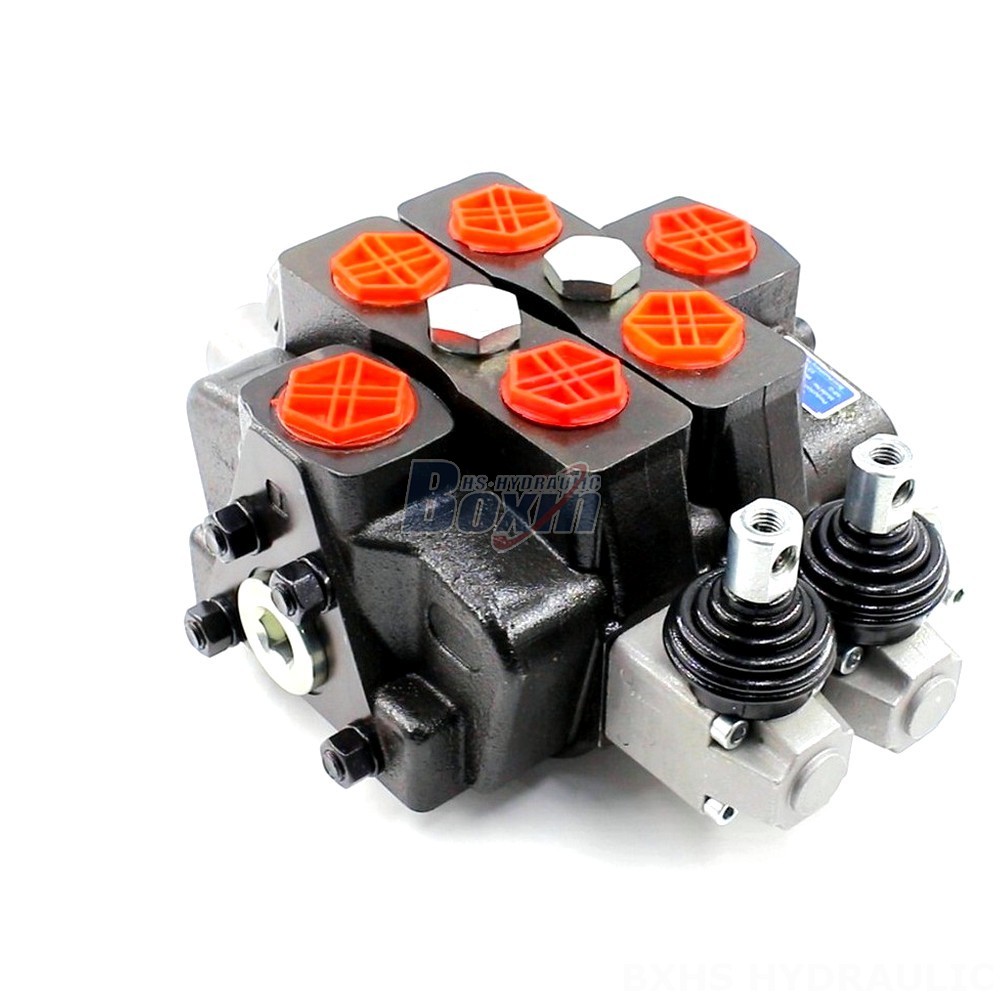

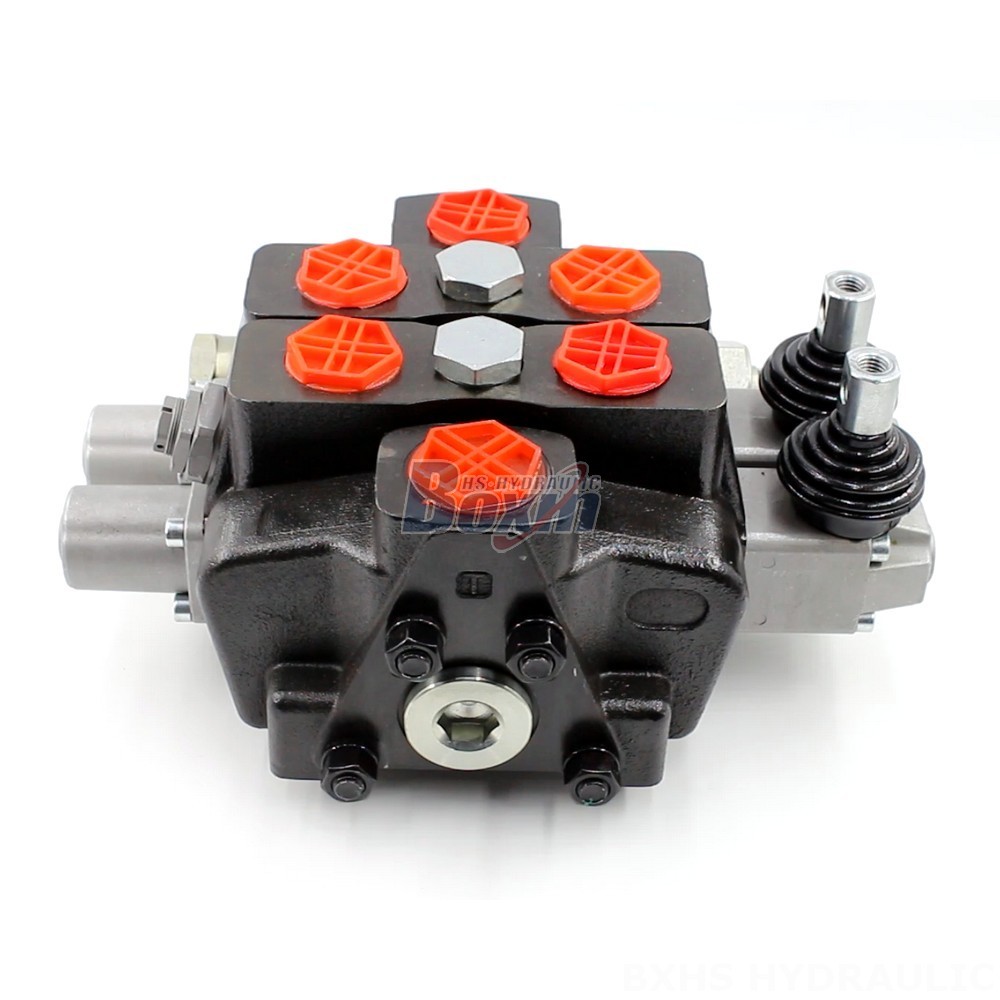

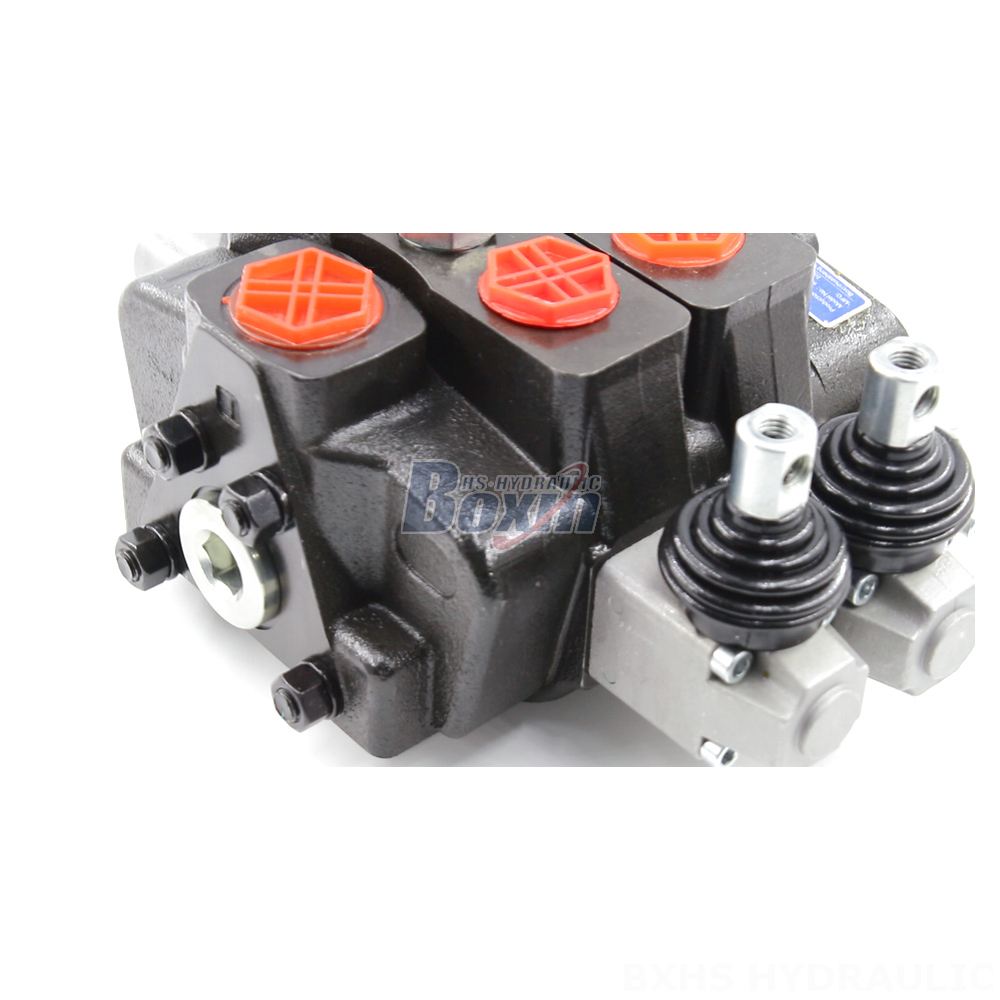

The SDS180 Manual 2 Spool Sectional Directional Valve is a versatile and high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, and agriculture. With its robust construction, precise control, and durability, it offers reliable operation and enhanced system efficiency.
| SDS180-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Hydraulisk |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner |
| Driftsviskositetsintervall | 12 - 400 mm²/s (12 cSt till 400 cSt) |
| Nominellt flöde | 160 l/min (42,2 US gpm) |
| Maximalt tryck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inloppsport | G3/4, G1, SAE 12 |
| Utloppsport | G1, SAE 16 |
| Portstorlek | G3/4, G1, SAE 12 |
**Product Name:** SDS180 Manual 2 Spool Sectional Directional Valve
**Product Description:**
The SDS180 Manual 2 Spool Sectional Directional Valve is a 2-section, manually controlled hydraulic valve that provides precise and efficient flow control in hydraulic systems. It features a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for demanding applications.
**Key Features:**
* Manual control for precise and responsive operation
* 2-spool design for versatile flow control
* Sectional valve construction for modularity and flexibility
* Rated flow of 160 L/min (42.2 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Wide range of applications in material handling, construction, and agriculture
* Applicable models include telehandlers, forklifts, cranes, stackers, and excavators
