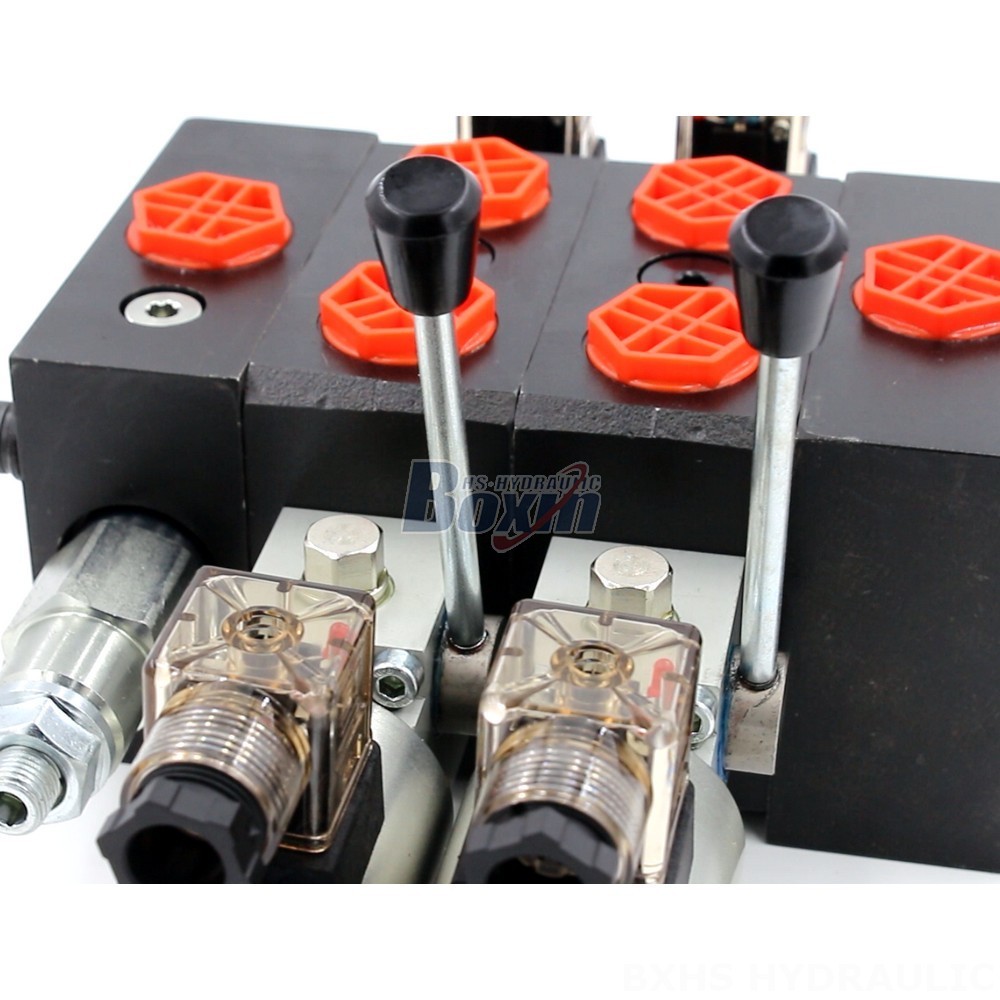

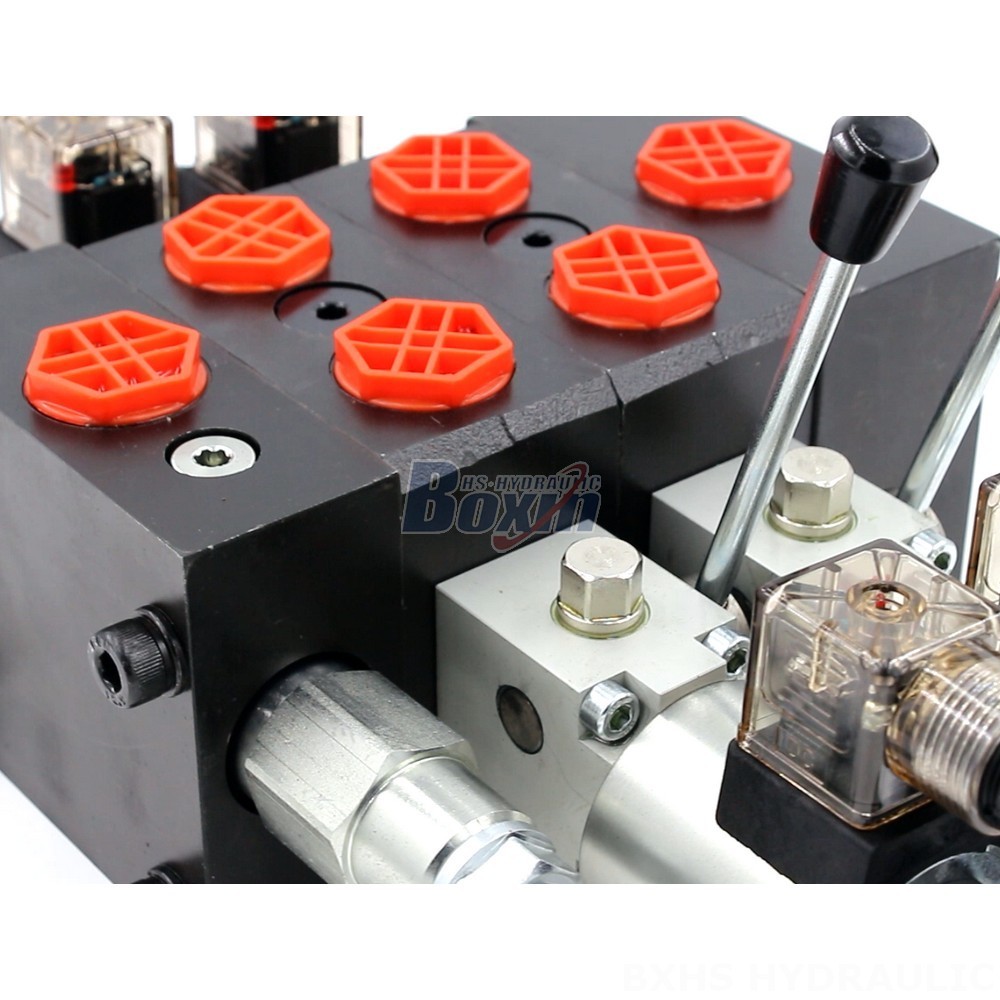

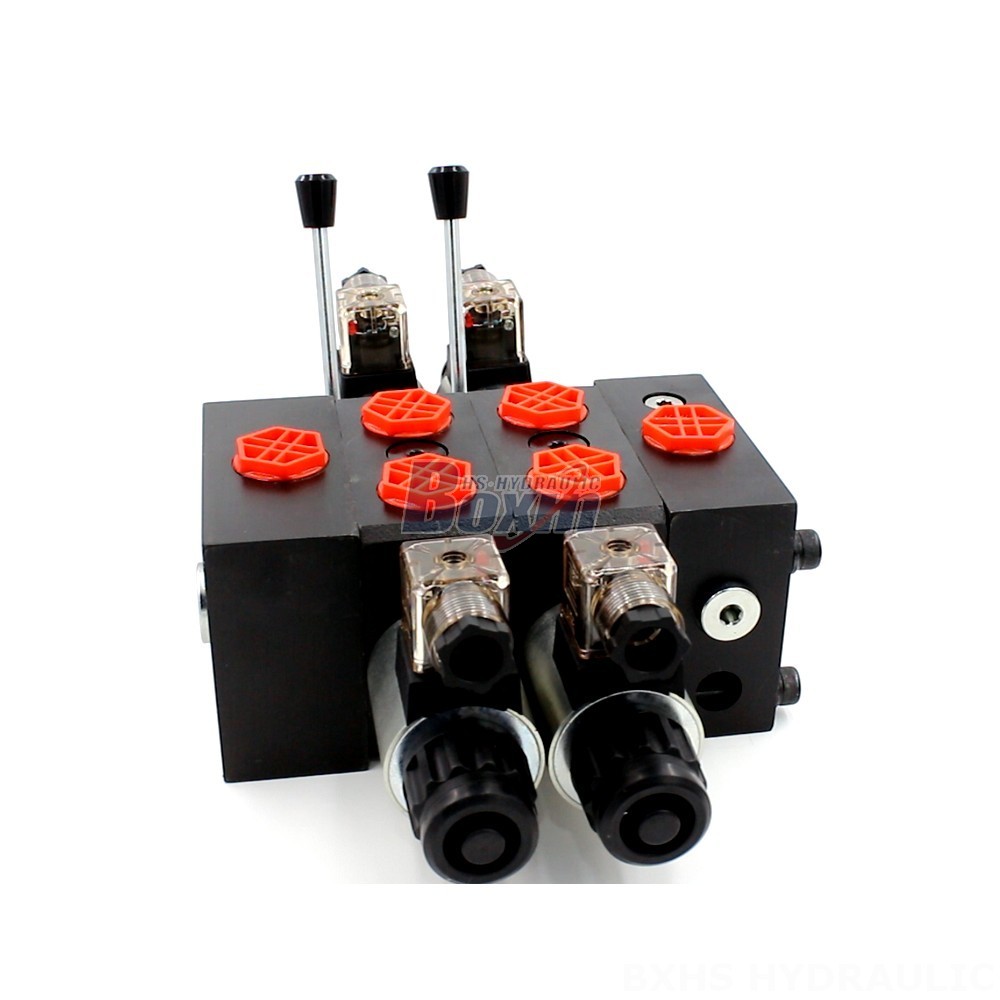

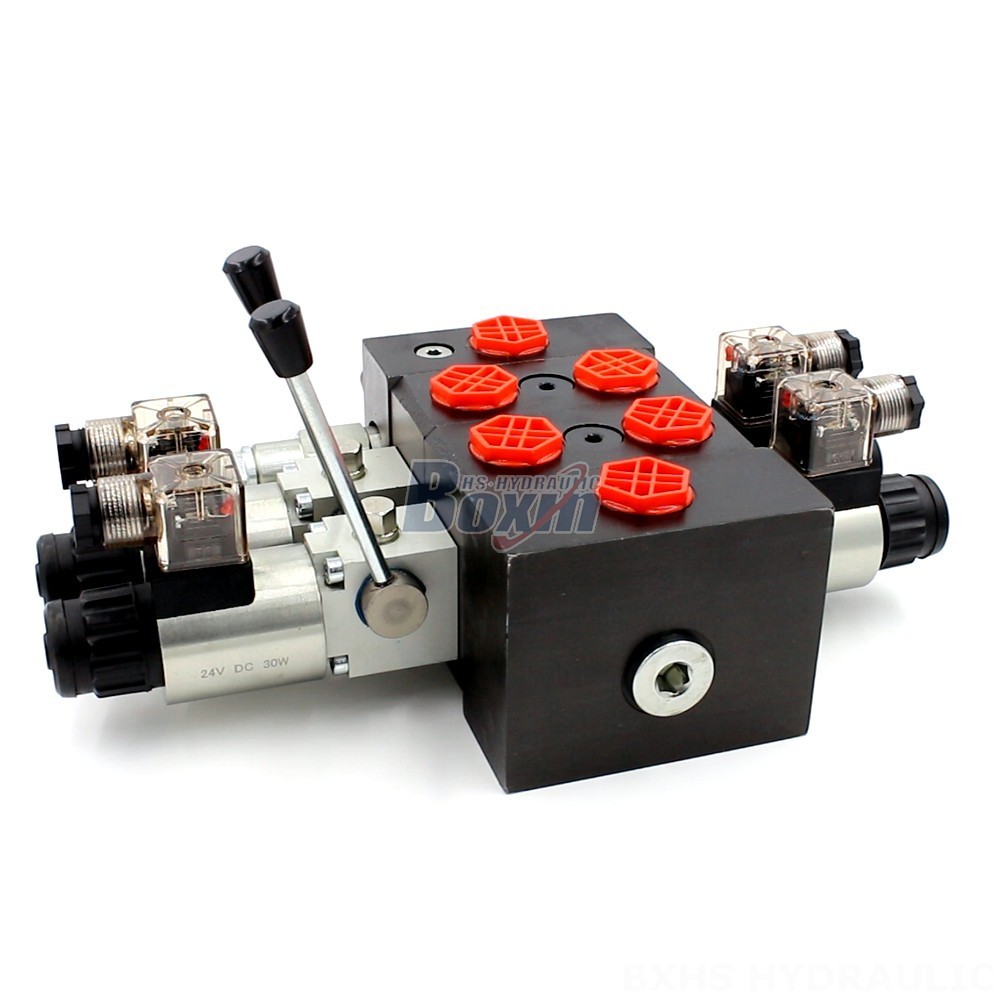

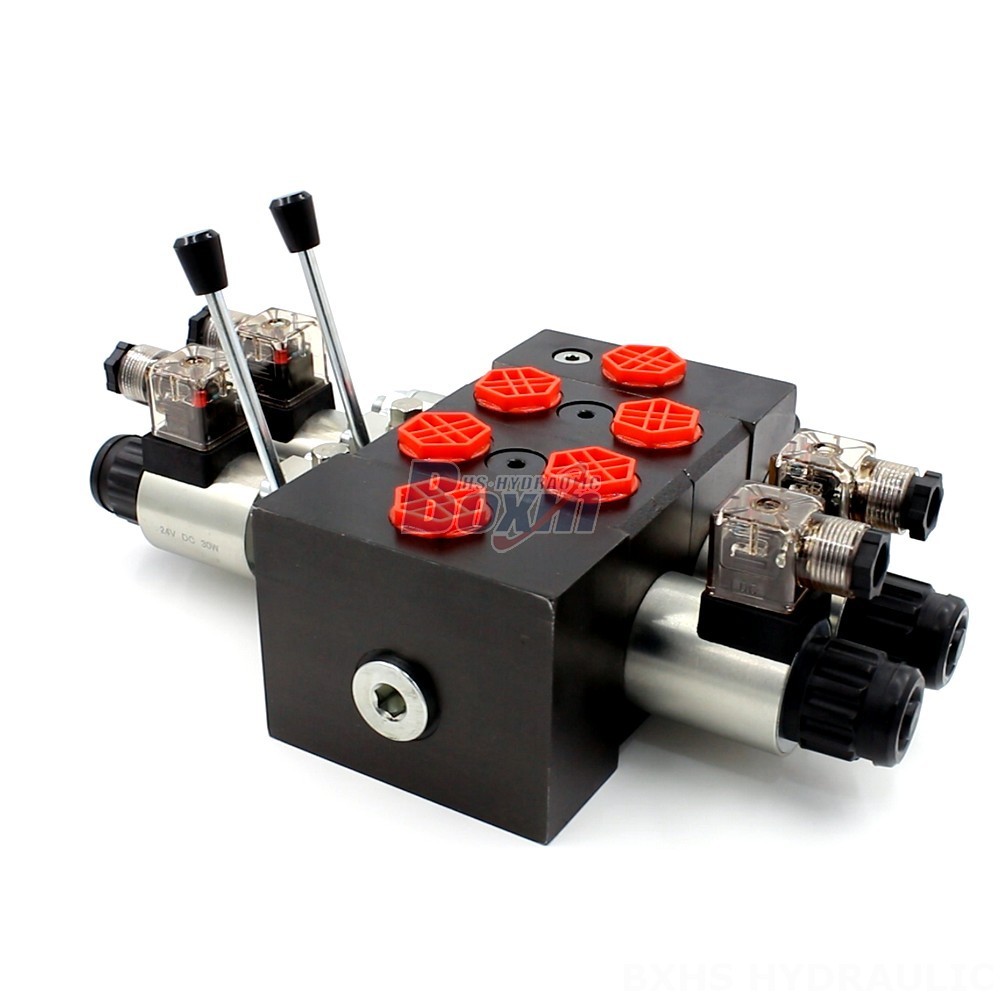

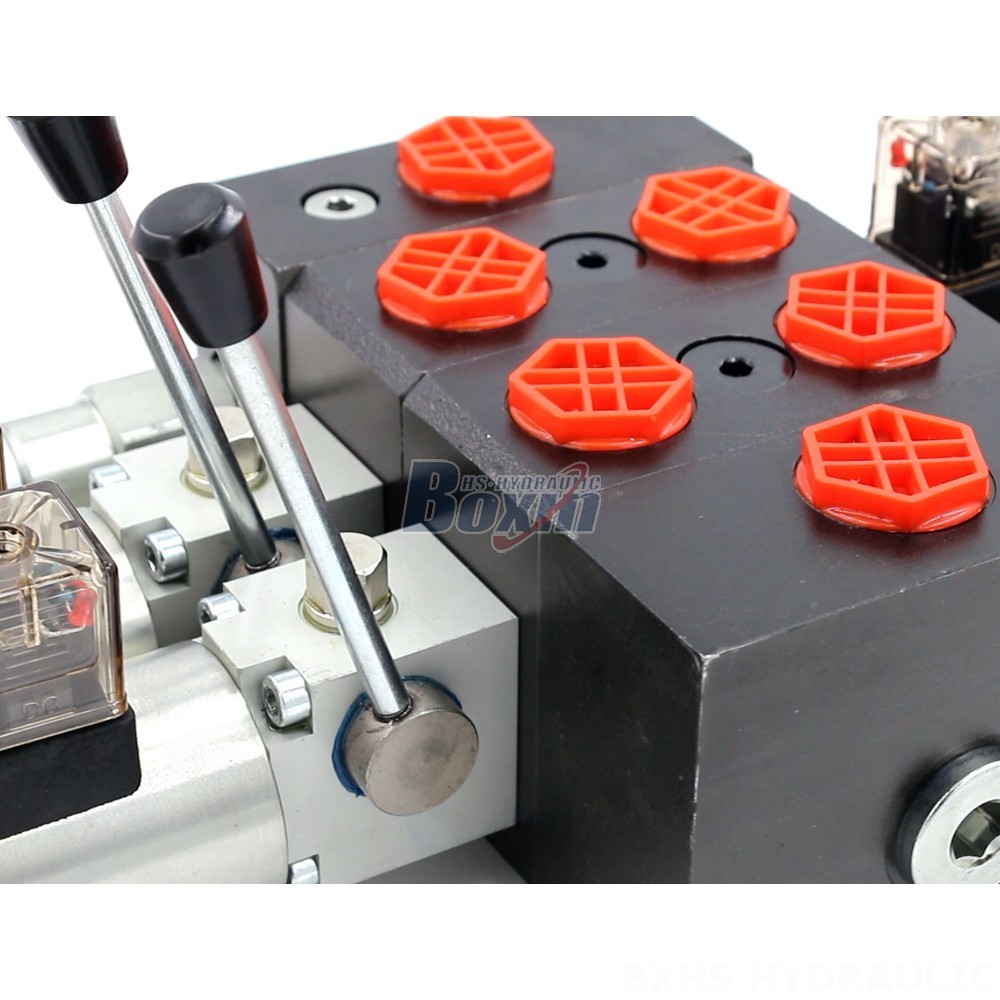

The DCV58 Series Electric Over Hydraulic Valve Block is a high-performance, 2-section sectional hydraulic valve designed for use in a wide range of applications, including material handling, construction, and agriculture. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is ideal for demanding applications. The valve is available for wholesale and OEM orders.
| DCV58-serien Sektionsstyrvventil Parametrar | |
|---|---|
| Kontrollmetod | Solenoid, Solenoid och manuell |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner, 8 ventilsektioner, 9 ventilsektioner, 10 ventilsektioner, 11 ventilsektioner, 12 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Sektionsventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner, 8 sektioner, 9 sektioner, 10 sektioner, 11 sektioner, 12 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 350 bar (5100 psi) |
| Inloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Utloppsport | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Portstorlek | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Series Electric Over Hydraulic Valve Block is a reliable and efficient hydraulic valve that offers a wide range of benefits, including:
* **High Performance:** Rated flow of 60 L/min and a maximum pressure of 350 bar for demanding applications.
* **Versatility:** 2-section design for a variety of hydraulic control functions.
* **Easy Control:** Solenoid control for precise and responsive operation.
* **Durable Construction:** Designed for long life and reliability in harsh environments.
* **Wide Applications:** Suitable for use in material handling, construction, agriculture, and industrial vehicles.
Available for wholesale and OEM orders. Contact us to discuss your specific needs.
