Produktion & Leverans
15-30 dagars produktionsledtid

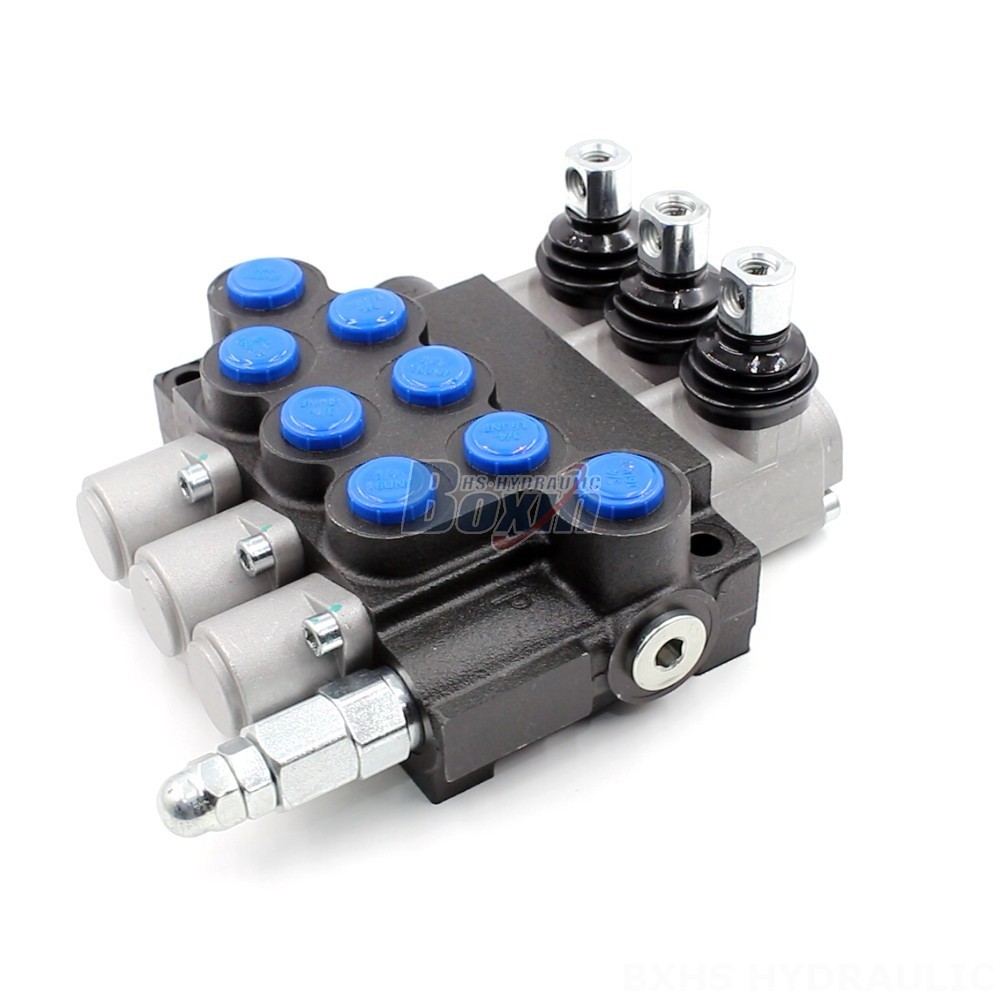

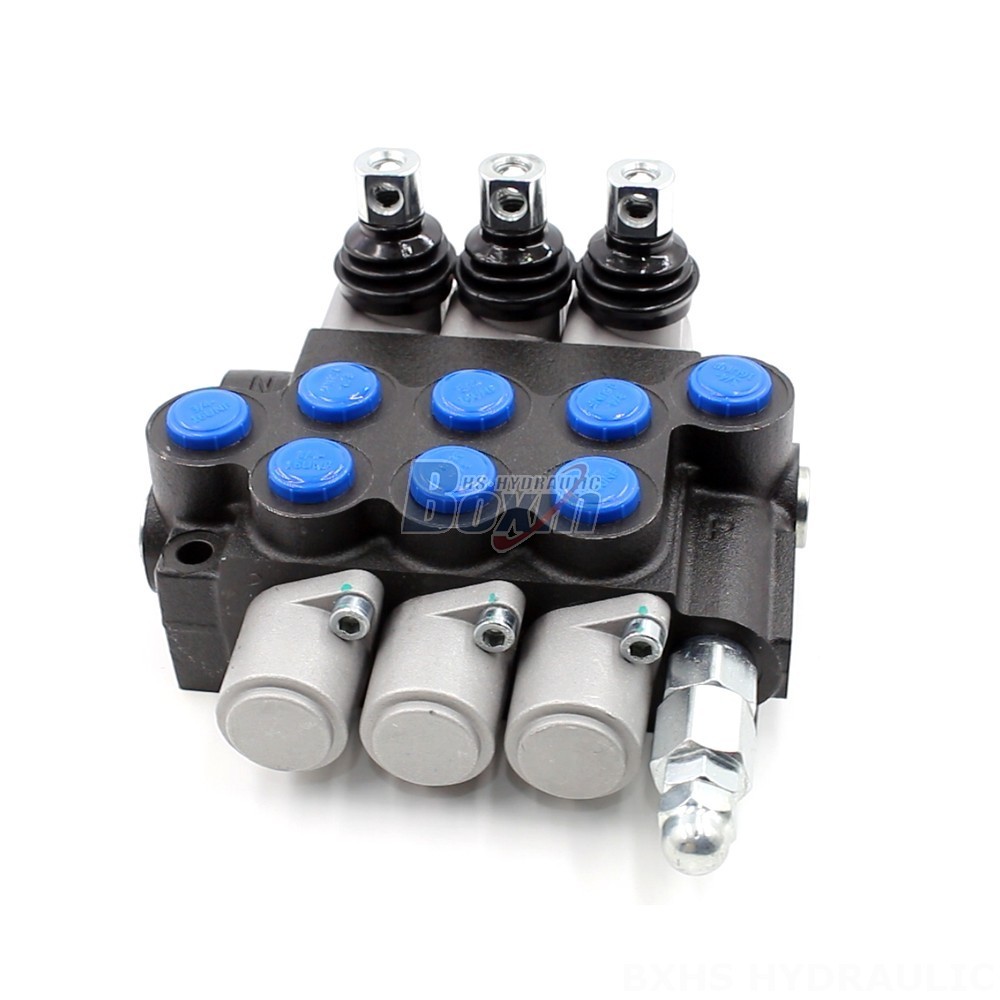

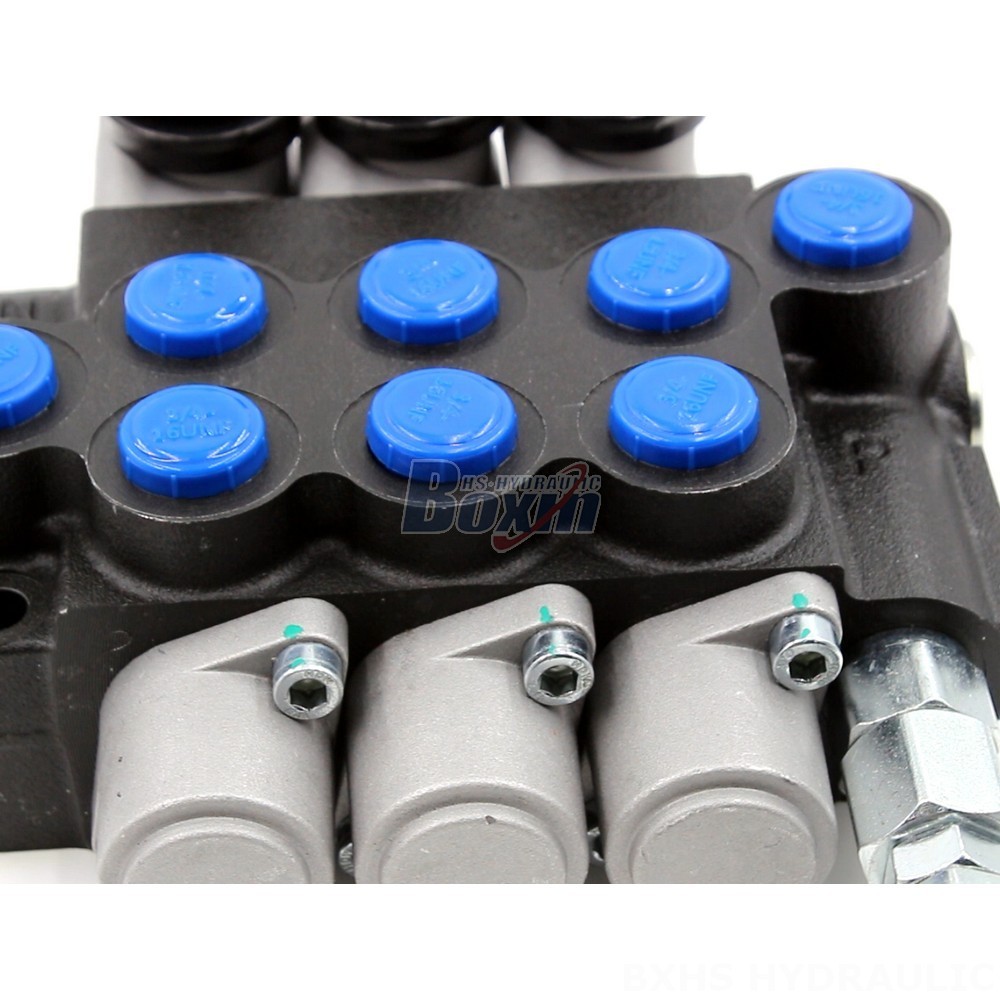

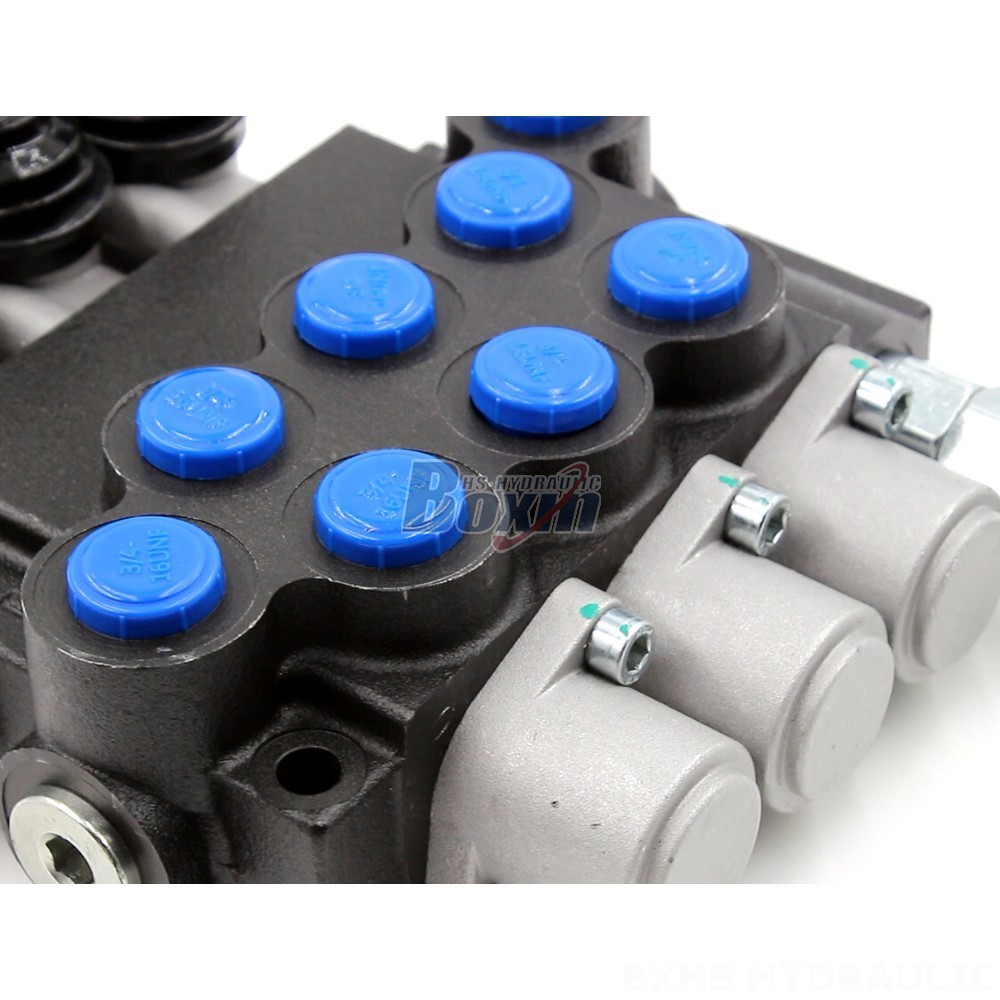

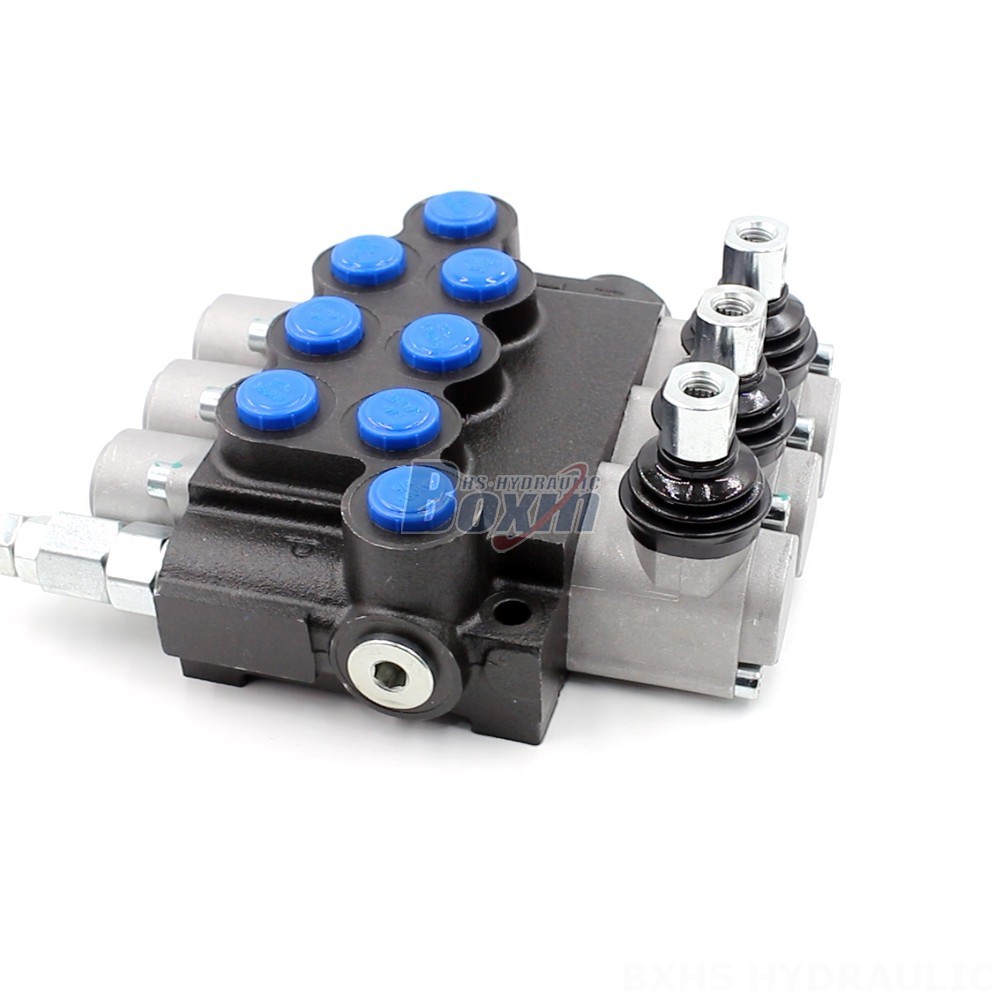

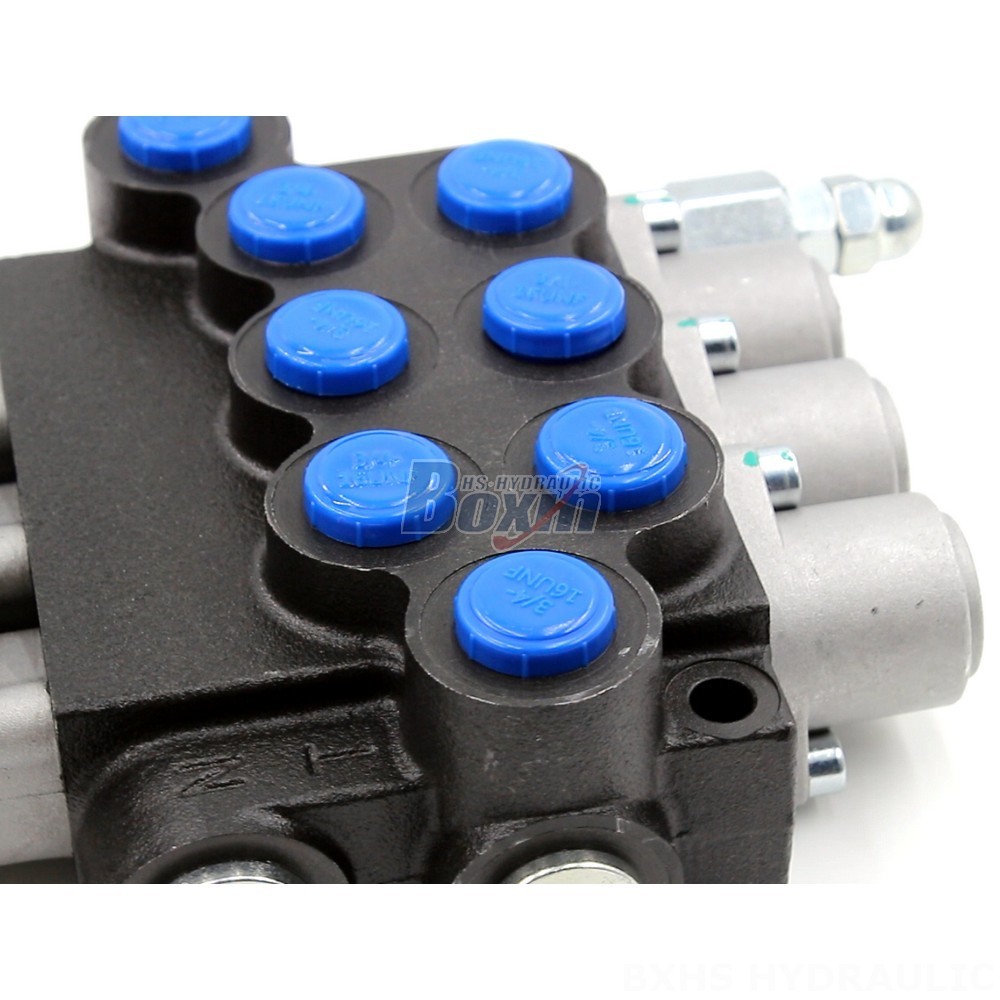

The P40-U78 Monoblock Valve is a high-performance, remote-controlled hydraulic control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a compact design, 3 sections, and a 40 L/min flow rate, this valve is built to withstand high pressures (up to 250 bar) and challenging environments.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series hydraulic control valve boasts a robust monoblock construction, offering superior durability and reliability. The valve's remote control capability provides for convenient operation, while its 3-section design ensures versatility in controlling hydraulic systems. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is well-suited for various heavy-duty applications. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. The P40-U78 Monoblock Valve operates within a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring optimal performance across a variety of operating conditions.
