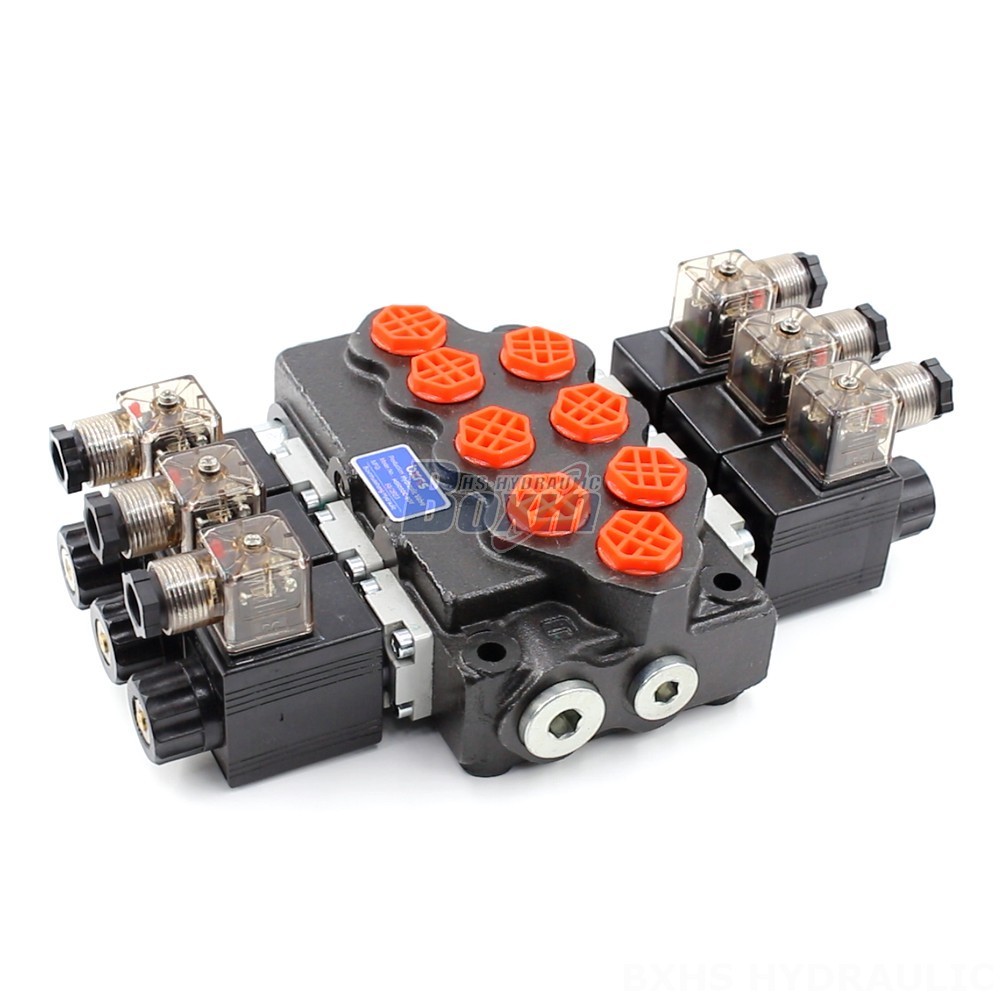

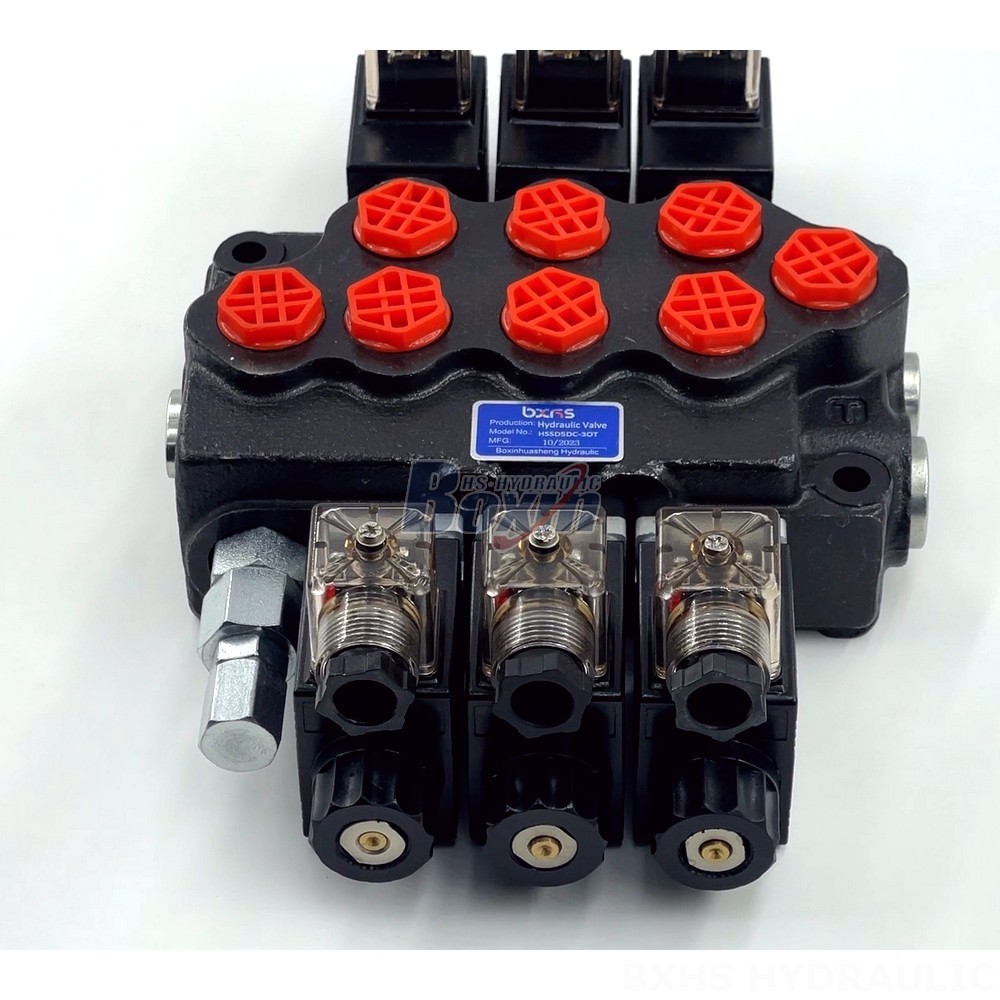

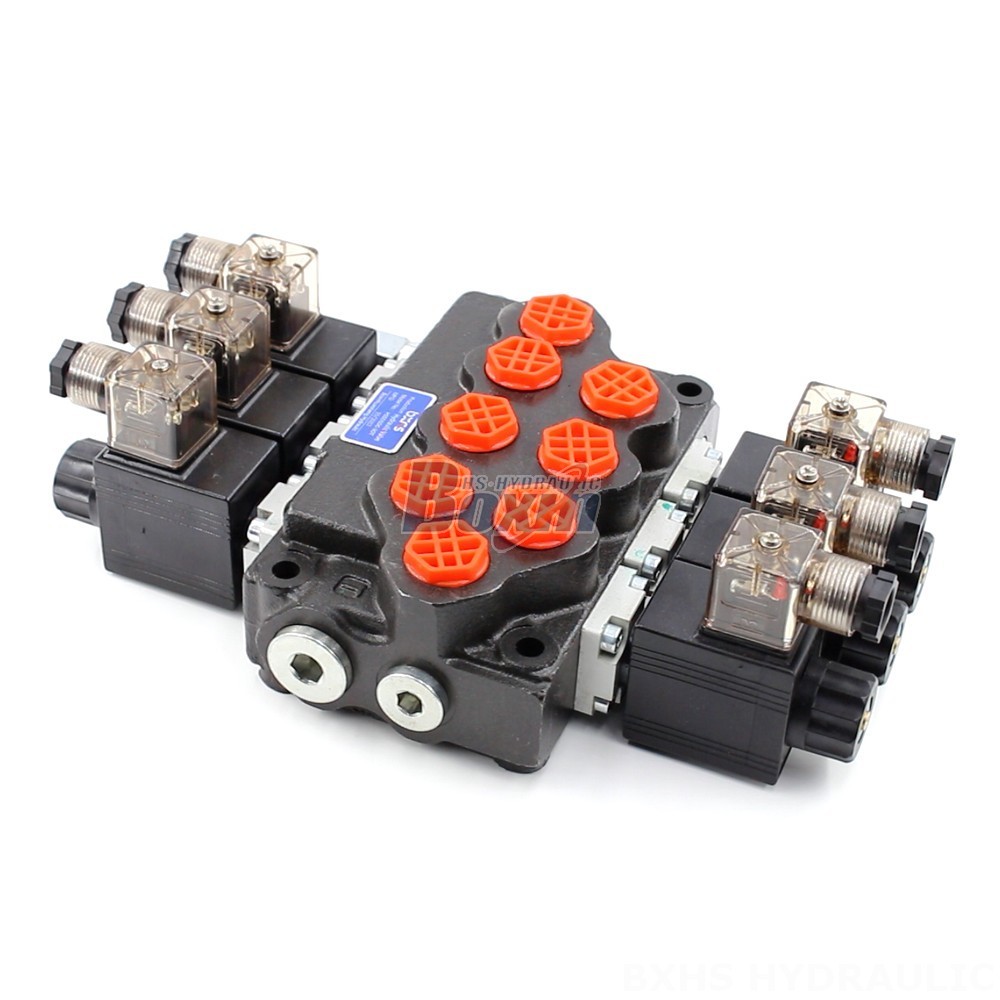

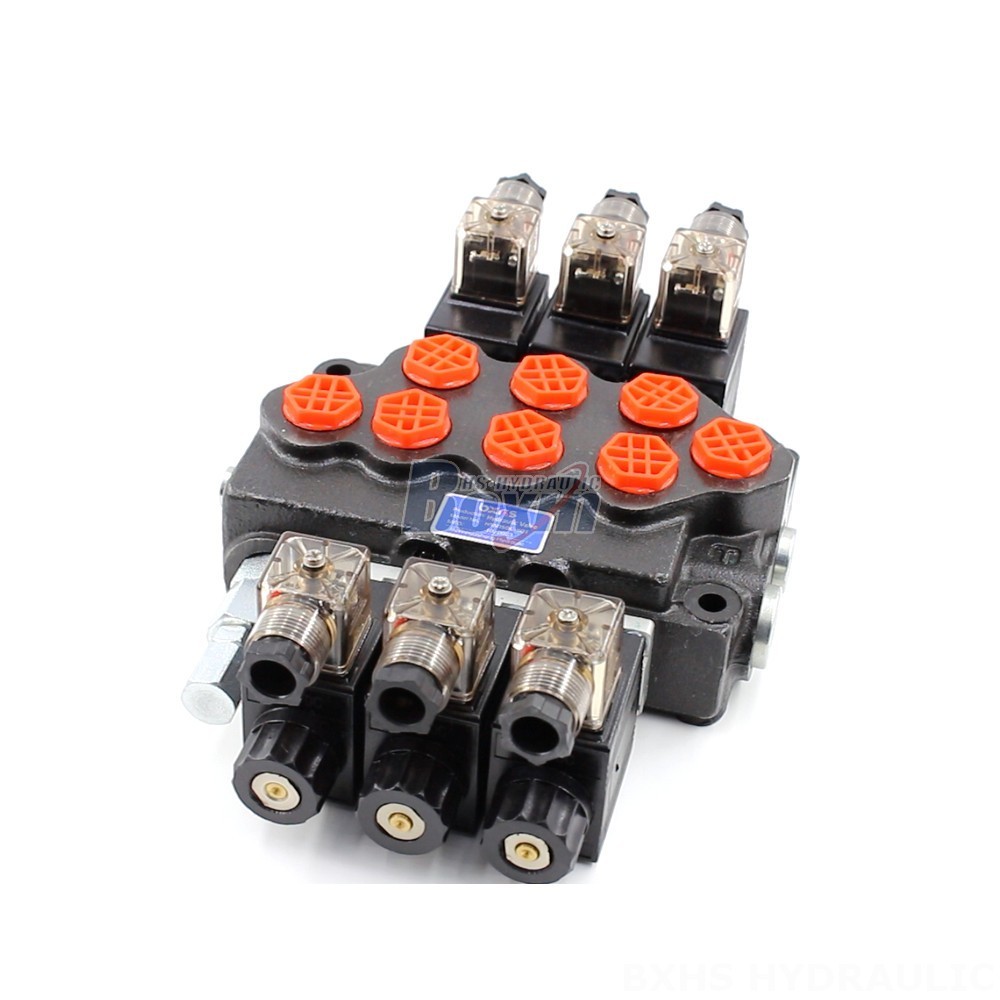

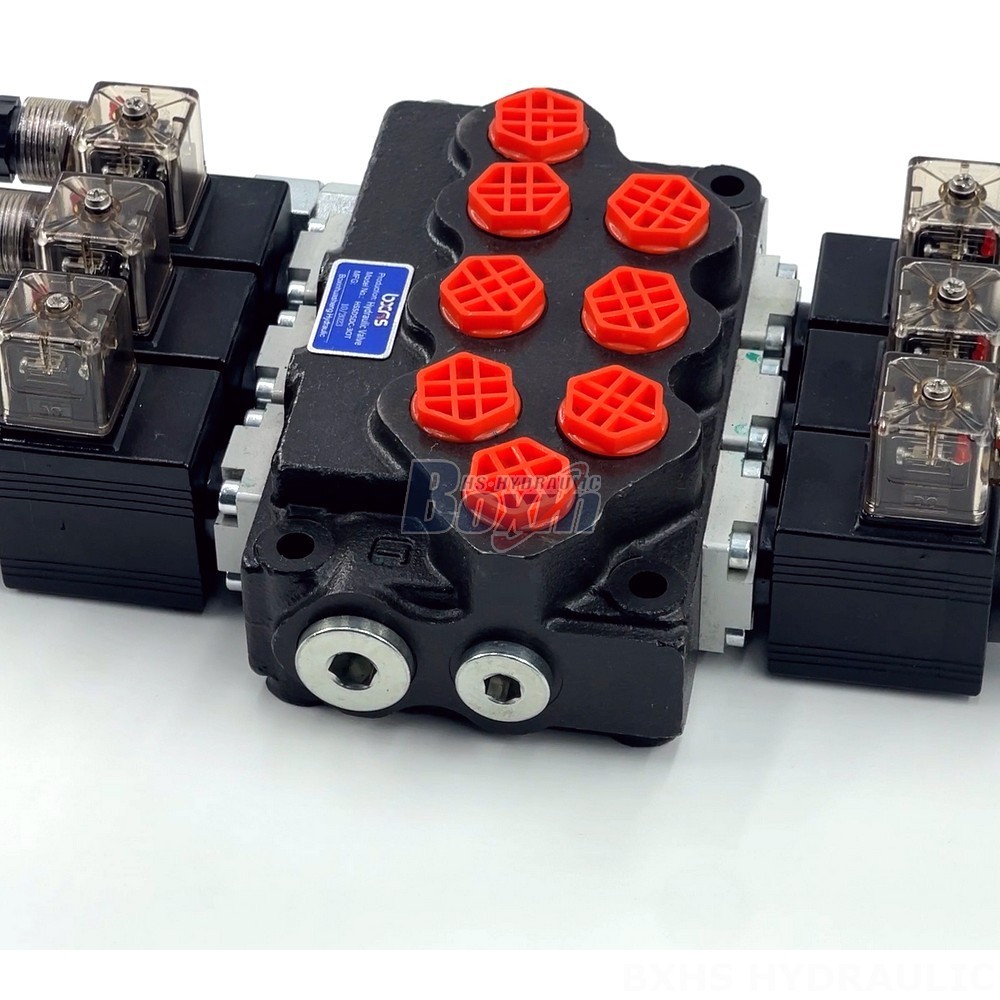

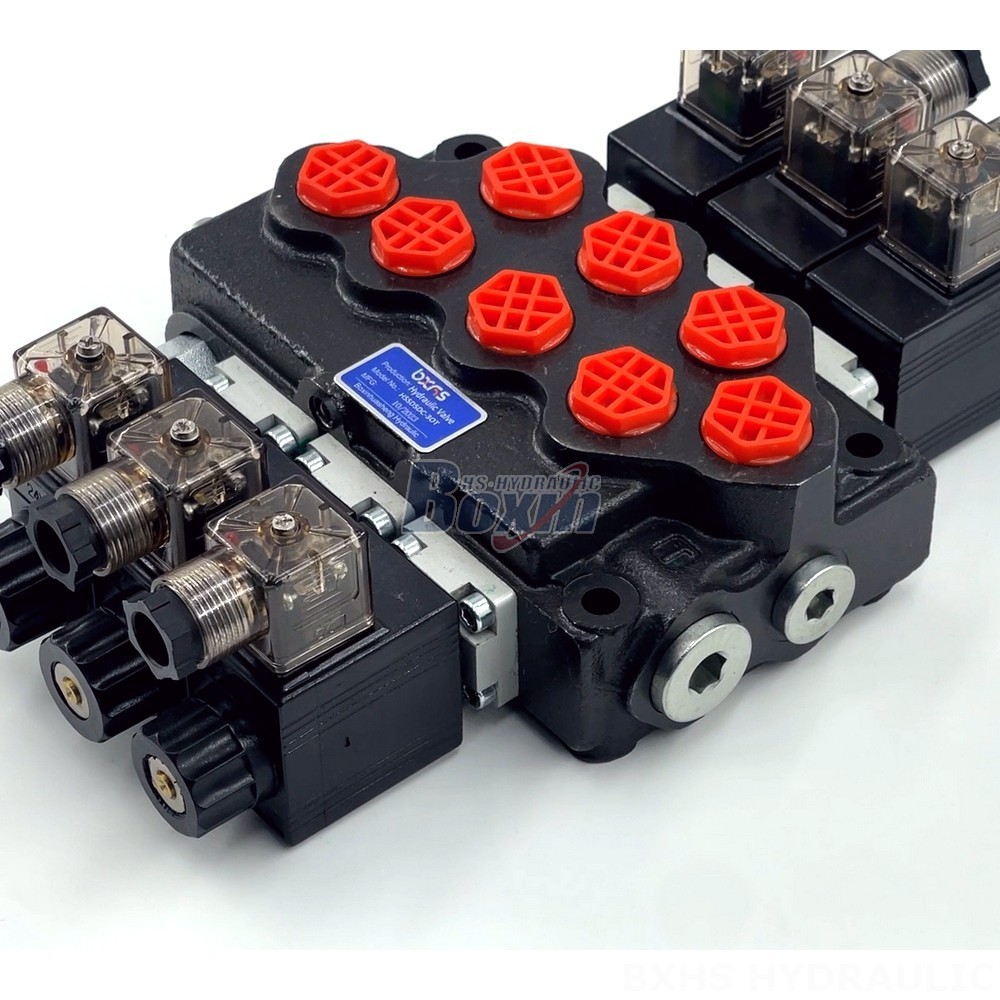

The SD5 Series Monoblock Valve is a solenoid operated hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it ideal for demanding environments.
| SD5-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +60°C (-40°F till +140°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 305 bar (4400 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Utloppsport | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Portstorlek | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Monoblock Valve is a 3-section, 3-spool valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. It is designed for use with hydraulic fluids with a viscosity range of 15-75 mm²/s and can operate in ambient temperatures ranging from -40°C to +60°C. This valve is suitable for applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The SD5 Series Monoblock Valve is a reliable and durable solution for your hydraulic system needs.
