Produktion & Leverans
15-30 dagars produktionsledtid
Innovation driver utvecklingen Tekniken formar framtiden
1385 Vyer letar efter den här produkten
Our Hydraulic Pressure Casting Valves are tailor-made to your specific requirements. Available in the P40 series with manual or joystick control, these monoblock valves offer reliable performance for a variety of applications in material handling, construction, agriculture, and industrial vehicles. We offer manufacturing, OEM, ODM, and private label services.
| P40-serien Monoblockriktningsventil Parametrar | |
|---|---|
| Kontrollmetod | Manuell, Pneumatisk, Elektropneumatisk, Elektrohydraulisk, Solenoid, Hydraulisk, Hydraulisk och Manuell, Kabel, Joystick, Solenoid och Joystick, Manuell och Joystick, Magnetventil och kabel |
| Spole | 1 ventilsektion, 2 ventilsektioner, 3 ventilsektioner, 4 ventilsektioner, 5 ventilsektioner, 6 ventilsektioner, 7 ventilsektioner |
| Omgivningstemperaturintervall | -40°C till +80°C (-40°F till +176°F) |
| Strukturtyp | Monoblockventil |
| Sektion | 1 sektion, 2 sektioner, 3 sektioner, 4 sektioner, 5 sektioner, 6 sektioner, 7 sektioner |
| Driftsviskositetsintervall | 15 - 75 mm²/s (15 cSt till 75 cSt) |
| Nominellt flöde | 40 l/min (10,5 US gpm) |
| Maximalt tryck | 250 bar (3600 psi) |
| Inloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Utloppsport | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Portstorlek | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

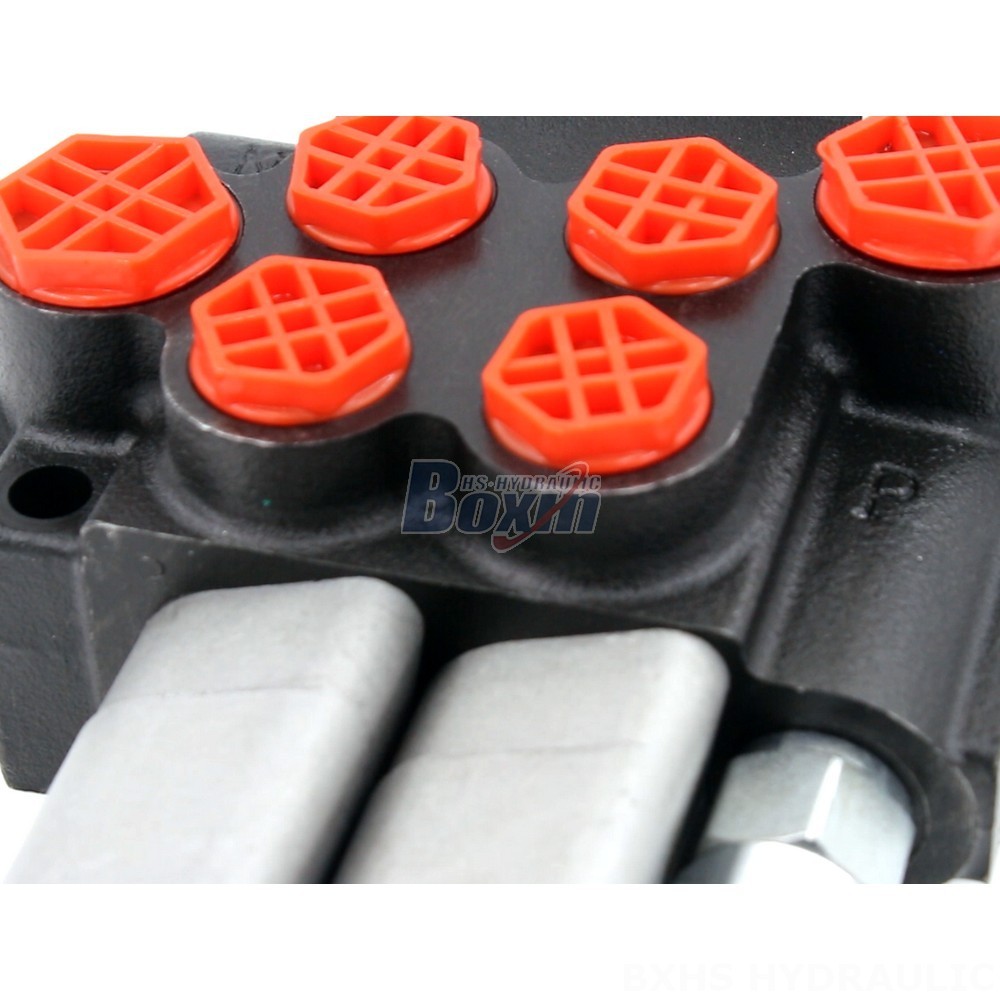

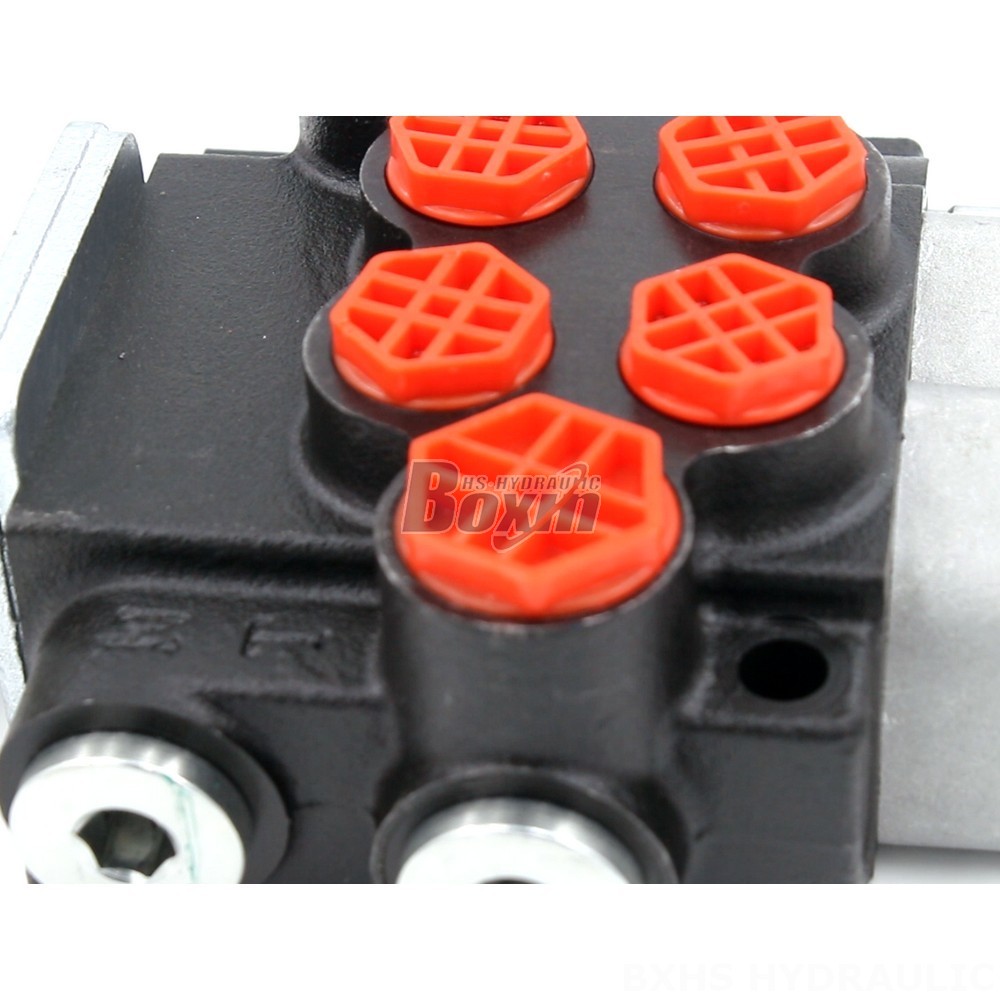

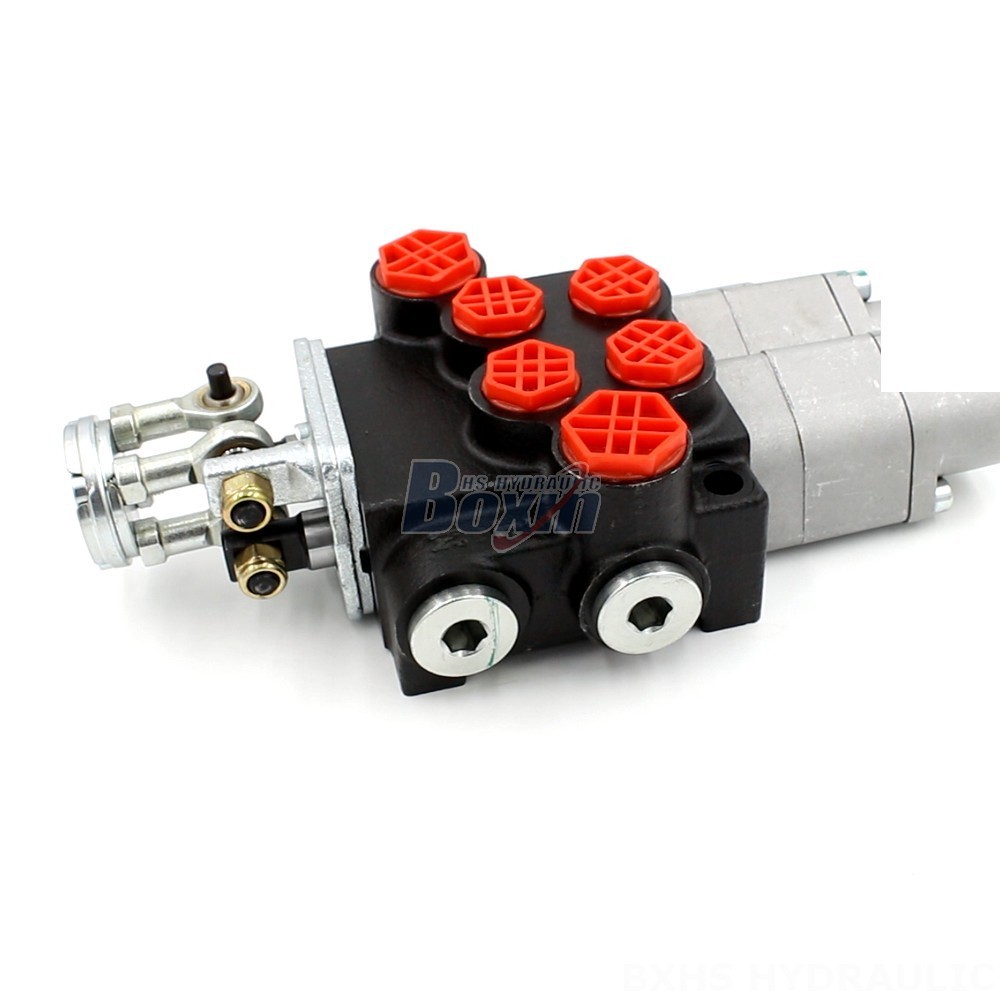

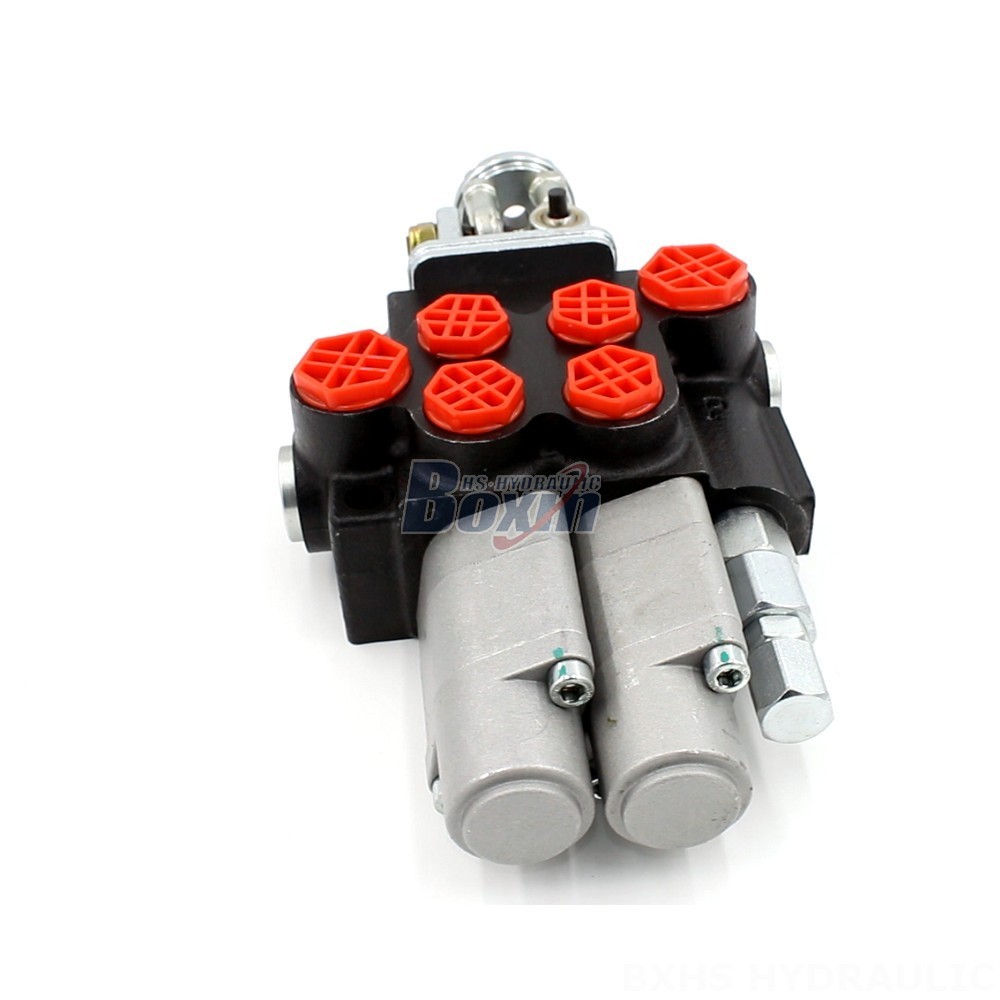

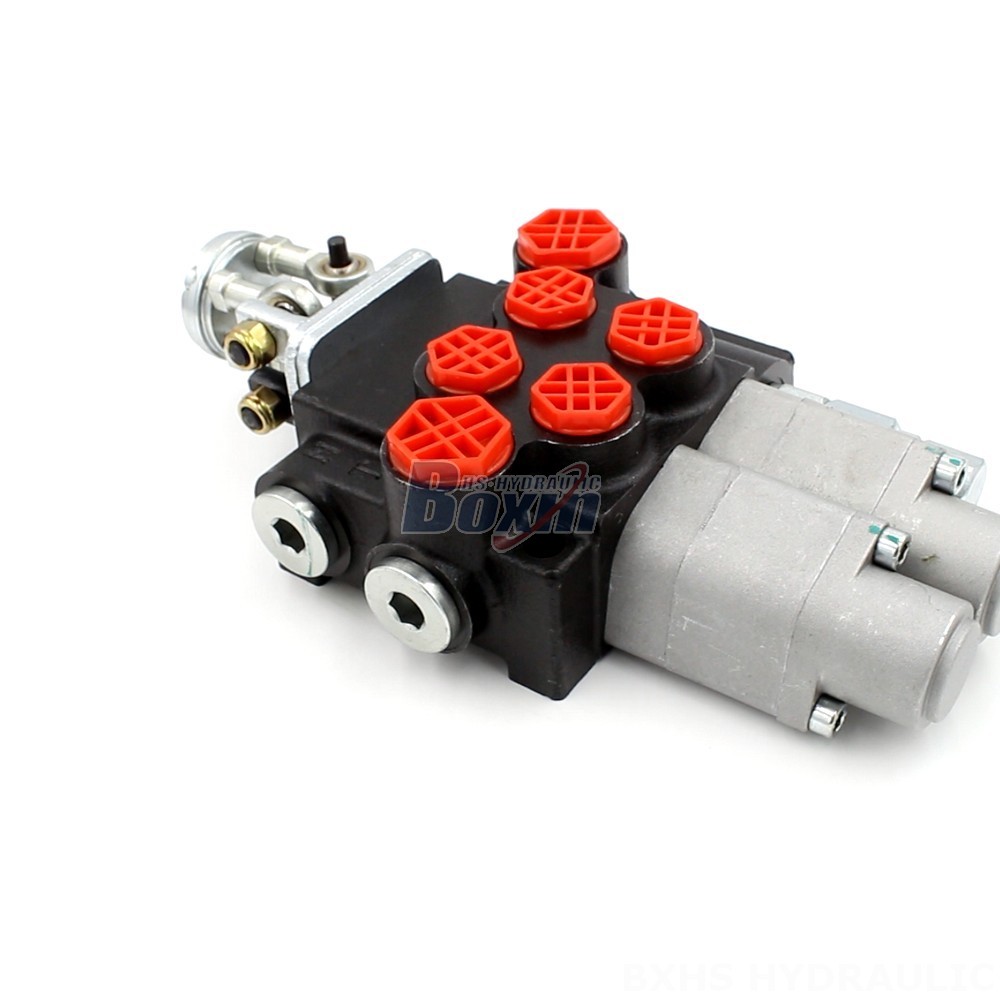

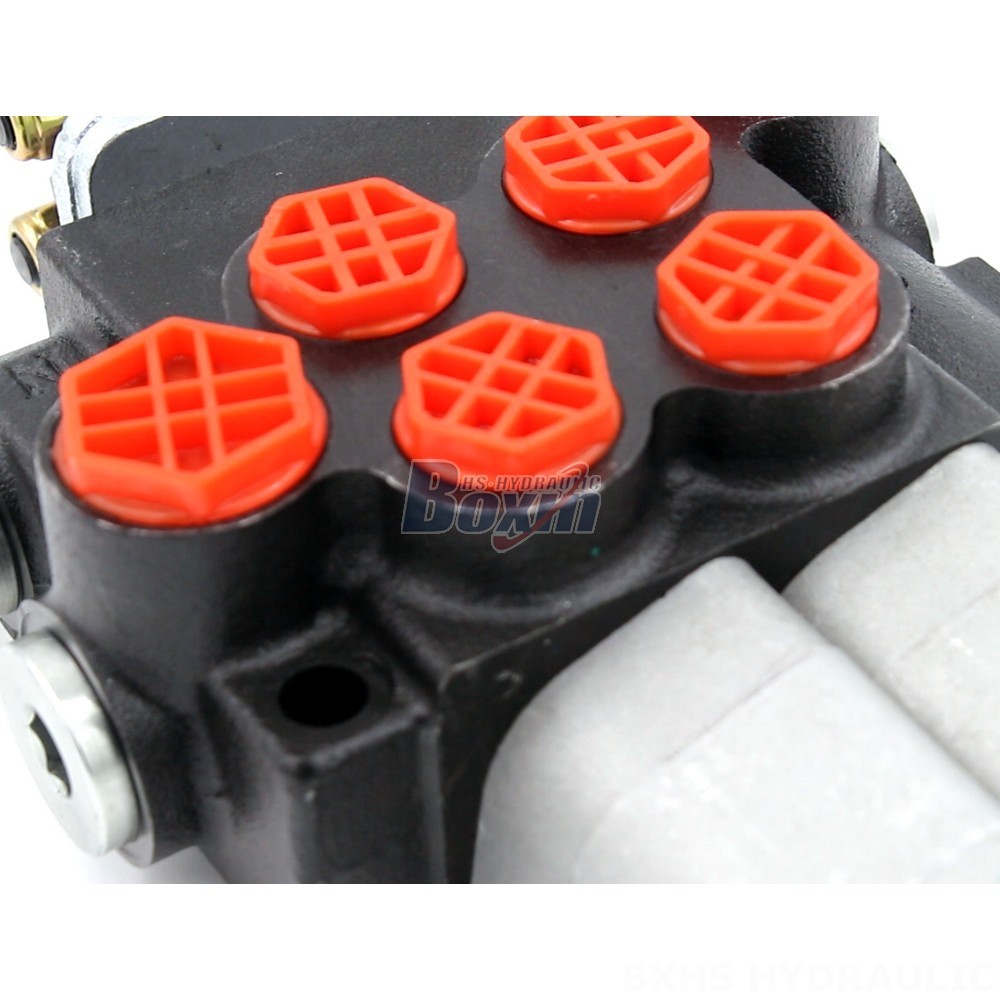

These bespoke Hydraulic Pressure Casting Valves are designed with a 2-section, monoblock structure and feature a 2-spool design. They are capable of handling flow rates up to 40 L/min (10.5 US gpm) and pressures up to 250 bar (3600 psi). The valves are suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and operate within an ambient temperature range of -40°C to +80°C (-40°F to +176°F). We offer a variety of customization options to meet your specific needs, including control methods (manual or joystick), section configuration, and spool type. We are your trusted partner for OEM, ODM, and private label solutions, ensuring high-quality products and reliable performance. Contact us today to discuss your specific project requirements.
